Maintenance Manual > Disassembly and Reassembly > Electrical Parts > Detector Assy, I/C, Y
Model CJV30/TPC Issued 2008.08.04 Revised F/W ver. 1.00 Remark
1.0
Rev.
6.5.16 Detector Assy, I/C, Y
 Work procedures
1. Remove the relevant cartridge guide.
• See ?6.5.15 ID Contact PCB Assy?.

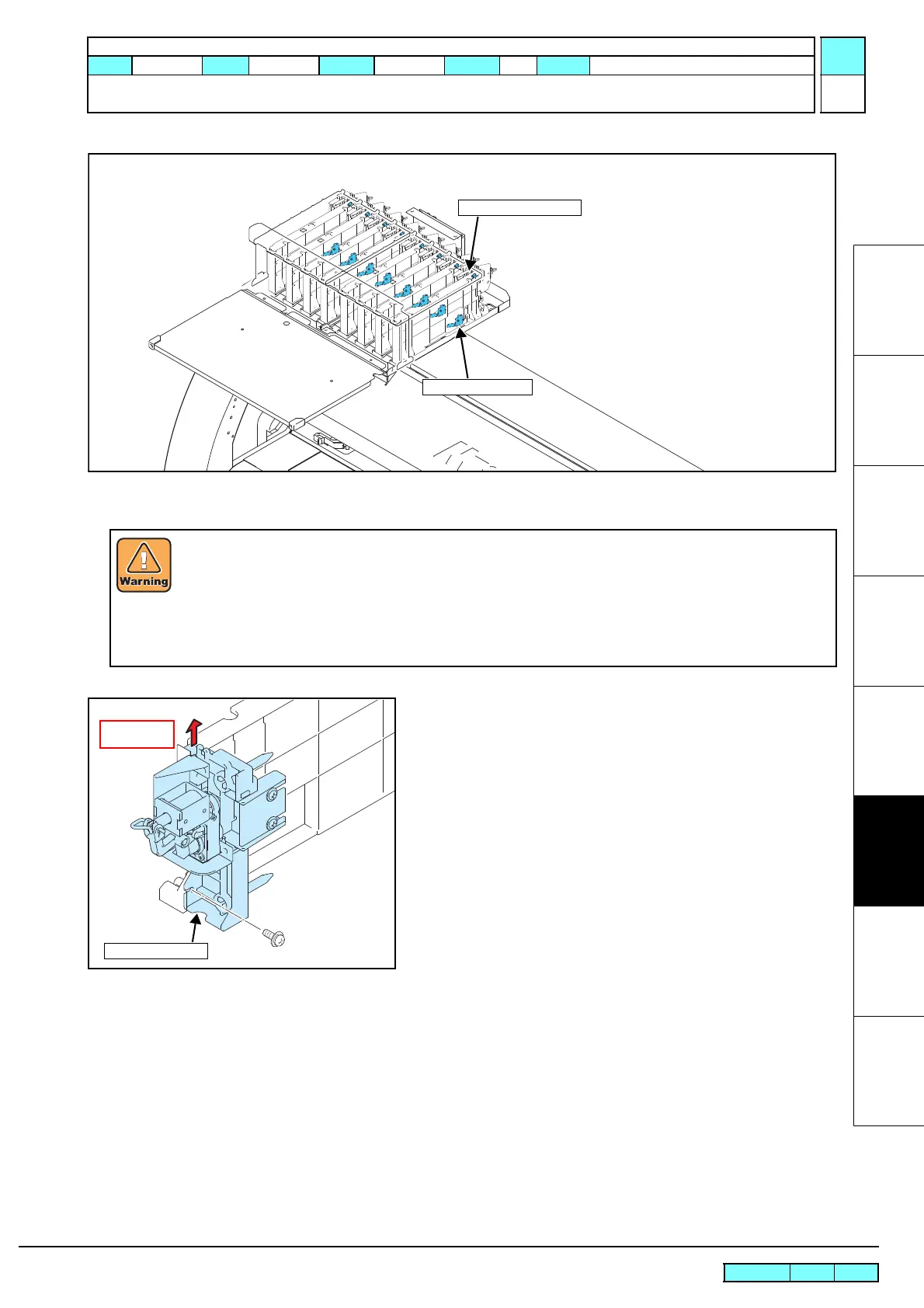

2. Remove the screw, release the hook and then remove cartridge
frame.
After turning off the sub and main power switches in order, unplug the power code.
Check if no electric charge is remaining in the PCB.
Refer to the "4.5.2 Electric charge checking when replace the Electrical Parts"
It is very dangerous if sleep mode functions mistakenly during the operation.
Moreover, the PCB may be damaged in case electric charge still remains inside.
Also there is a possibility of electric shock because of high power voltage applied the high-pressure part
of the power supply PCB assy. Take care to avoid contact with it.
Exist/non-exist Sensor
Near End Sensor
Releasing of
the hook
Cartridge Frame
