System control (for Mr.Slim)
System control (
for Mr.Slim)

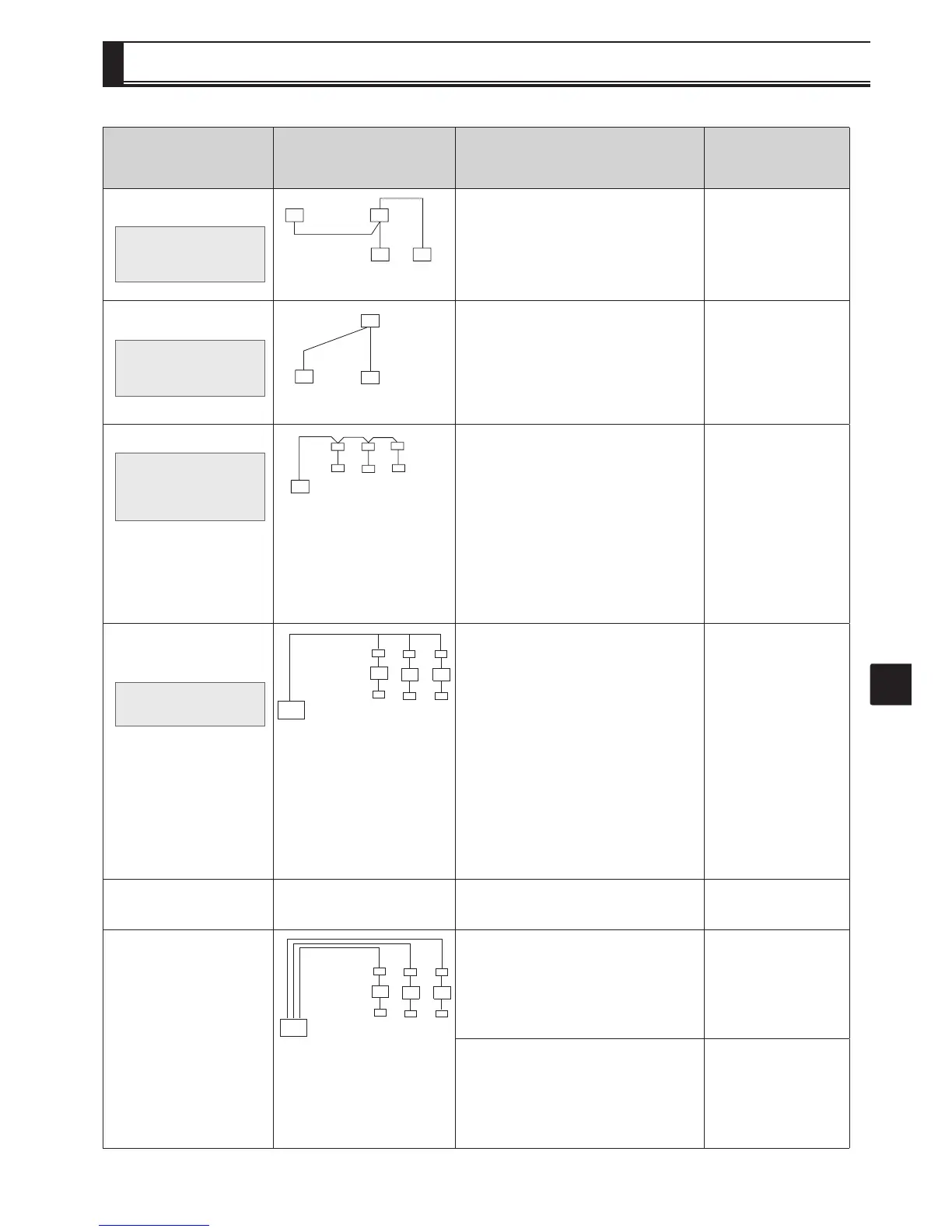

Variety Of System Function
System Name System Diagram Features
Parts Required in Addition
to Standard System Com-
ponents (Indoor / Outdoor
Units, Remote Controller)
A. Remote controller
operation (Standard)
• There are 2 types of remote controllers:
wired type and wireless type.
• Simultaneous twin, triple and quad units
are counted as 1 unit, and the indoor
units are started or stopped simultane-
ously.
—
B. Remote controller
operation
• Up to 2 remote controllers can be con-
nected to one group.
• Simultaneous twin, triple and quad units
are counted as 1 unit.
• Operation control by the latest com-
mand (last entered priority)
• Wired and wireless remote controllers
can be combined as a pair.
Wired remote controller
(additional)
(PAR-30MAA)
For PKA-RP · HAL / KAL,
use the terminal block.
(PAC-SH29TC-E)
C. Group control operation • One group can consist of up to 16
indoor units, and they can be started
sequentially by connecting the remote
controller to them and assigning an ad-
dress to each outdoor unit.
• Simultaneous twin , triple and quad
units are counted as 1 unit.
• All the units belonging to the same
group are operated in the same mode,
but thermostats can be turned ON /
OFF individually for each outdoor unit.
• Up to 2 remote controllers can be con-
nected.
Wired remote controller
(additional)
(PAR-30MAA)
For PKA-RP · HAL / KAL,
use the terminal block.
(PAC-SH29TC-E)
* Outdoor unit`s refrigerant ad-
dress needs to be set.
D. Remote / local
combined control
operation
• All the air conditioners can be turned
ON / OFF collectively from a distance.
• Operation can be switched between
the remote operating panel and local
controller.
• Operations (e.g., temperature adjust-
ment, airow, airow direction) except
for start/stop operations can be per-
formed even if operations from the local
remote controller are prohibited.
• In the case of simultaneous twin, triple,
quad units, connect the controller to
one indoor unit only.
• If connected to 2 or more indoor units,
an error mayoccur. (operation stop)
Control by an external timer is possible
by connecting it.
Remote ON / OFF adapter
(PAC-SE55RA-E)
Relay box
(Part to be provided at
your site)
Remote operating panel
(Part to be provided at
your site)
E. Operation by external
signal
—
Use of optional "remote ON / OFF adapt-
er" enables remote control via relay.
(Level signal)
Remote ON / OFF adapter
(PAC-SE55RA-E)
F. Control by external
signal and remote
display
Extraction of non-voltage contact output
Use of optional "remote operation adapt-
er" and "remote display panel" (Part to be
provided at your site) provides non-volt-
age contact outputs of signals (operation,
error) and operation / stop input function.
Remote operation
adapter
(PAC-SF40RM-E)
Remote display panel
(Part to be provided at
your site)
Extraction of DC12 V contact output
Use of optional "Multiple remote control-
ler adapter" and "remote display panel"
(Part to be provided at your site) provides
DC12 V contact outputs of signals (op-
eration, error) and operation / stop input
function.
Multiple remote control-
ler adapter
(PAC-SA88HA)
Remote display panel
(Part to be provided at
your site)
Indoor unit
Remote
Controller
Outdoor
unit
Indoor
unit
Remote
Controller
* One of the wired remote controllers
must be set as a sub remote controller.
Outdoor
unit
Indoor
unit
Remote
Controller
Indoor unit
Remote Controller
Relay box
Remote operating panel
Adapter
Remote display panel
(operation, error)
Indoor unit
Remote Controller
Use of 2 controllers ena-
bles operation of the air
conditioner both from a
distance and nearby.
Use of 1 remote controller
to control multiple air
conditioners with the same
settings simultaneously.
Allows start / stop of the
ai r c on d it i on e r f r om a
distance, and prohibits /
permits start/ stop from re-
mote controllers.
Enables you to display the
operation state and control
start/stop from a distance.
