2Unpacking to Installation
Installation 2-9
2.2.2 Transportation procedures (Transporting with a crane)

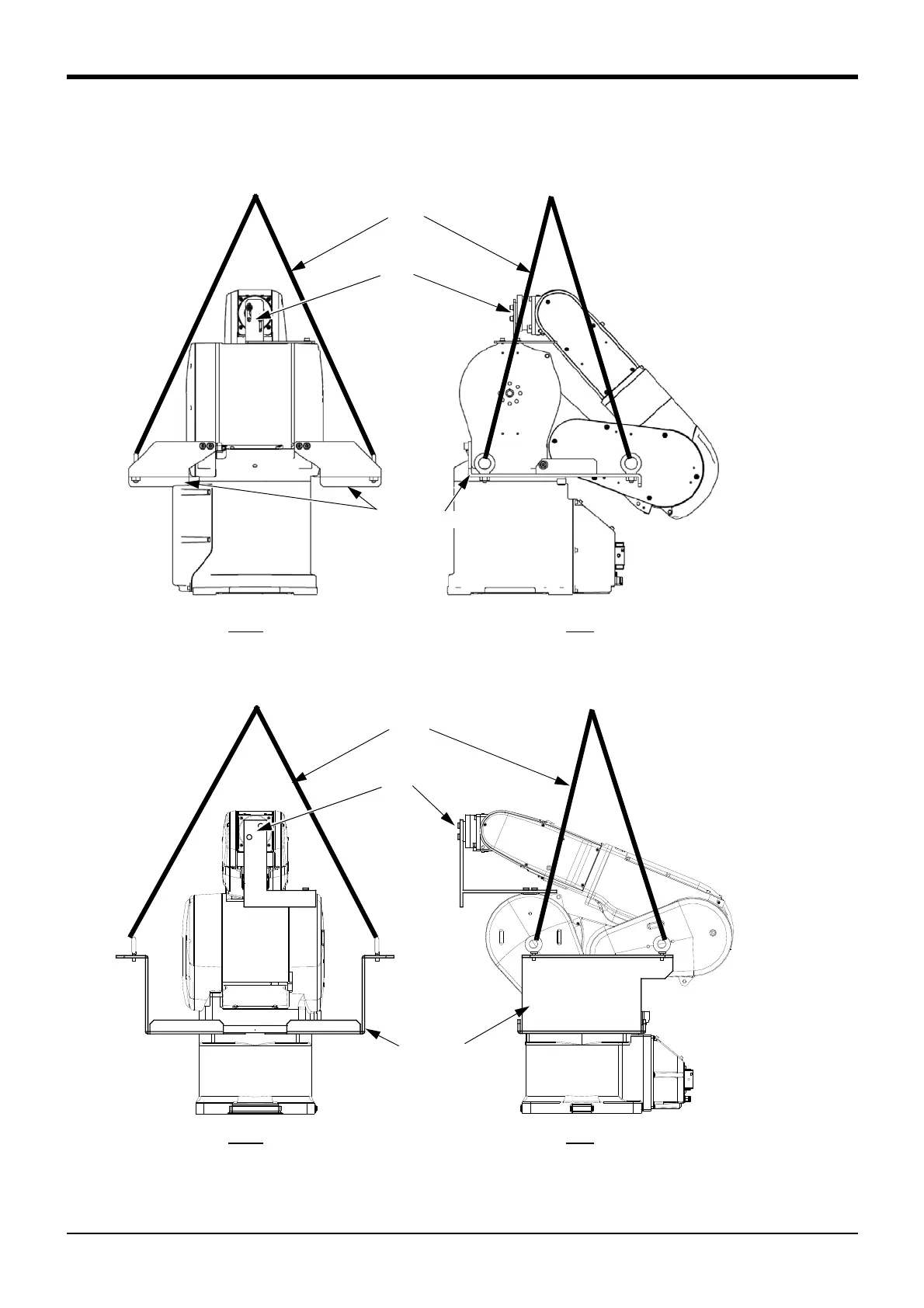

The transportation procedure is shown in Fig. 2-2 for (RV-4F/7F series) and Fig. 2-3 (RV-13F series).
Fig.2-2 ： Transportation procedure (transporting with a crane: RV-4F/7F series)
Fig.2-3 ： Transportation procedure (transporting with a crane: RV-13F series)
Front Side
Wire
Fixing plate
Suspension fitting
Mass
RV-4F: Approx. 39kg
RV-4FL: Approx. 41kg
RV-7F: Approx. 65kg
RV-7FL: Approx. 67kg
Note) The figure is the RV-4 F
series. The shape and
installation screw of the
suspension fitting of RV-
7F series differ.
RV-4F/RV-7F series
Front Side
Wire
Fixing plate
Suspension fitting
Mass
RV-13F series: Approx. 137kg
RV-13FL series: Approx. 145kg
RV-13F series
