3-52
Installing the J1 axis operating range change
3Installing the option devices
3.1.2 RV-13F series
(1) Configuration
The configuration parts of this option are shown in Table 3-1. Please confirm.
The option for SExx01 is 1F-DH-08, and for SExx02 is 1F-DH-05J1.

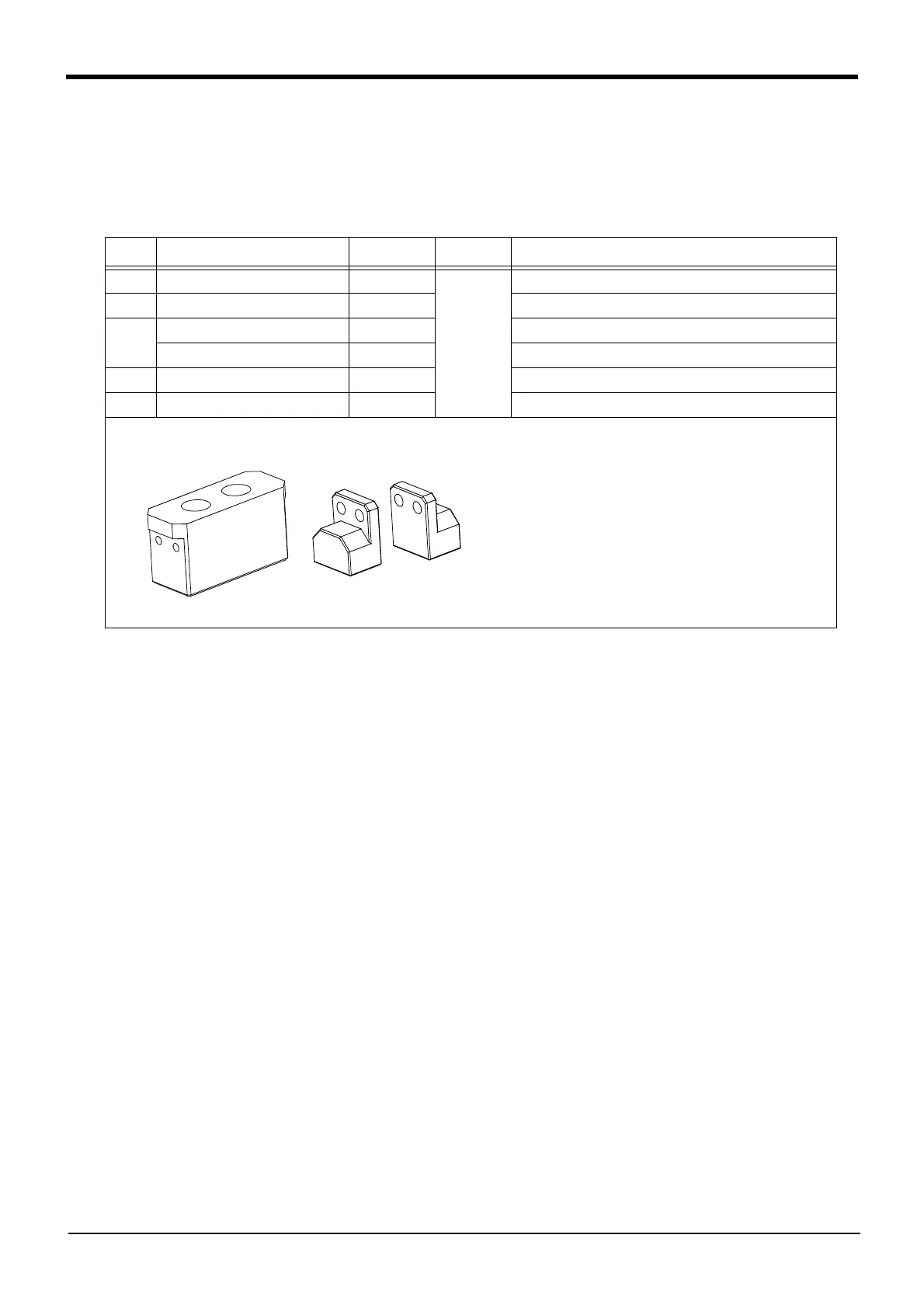

Table 3-4 ： Configuration devices
No. Part name Qty. Mass (kg) Remarks
<1> Stopper Block J1 1
0.3
<2> Resin Stopper B 2 One piece each for + side/- side
<3> Screw (M12×25) 2 Mechanical Stopper screw (For SExx01)
Screw (M12×20) 2 Mechanical Stopper screw (For SExx02)
<4> Screw (M10×40) 2 For Stopper Block J1 fixing
<5> Screw (M4×12) 4 For Resin Stopper B fixing
<1>Stopper Block J1 <2>Resin Stopper B
