ELECTRICAL SYSTEM
12-10
2.2.2 M001T68281(12V-1.7kW)

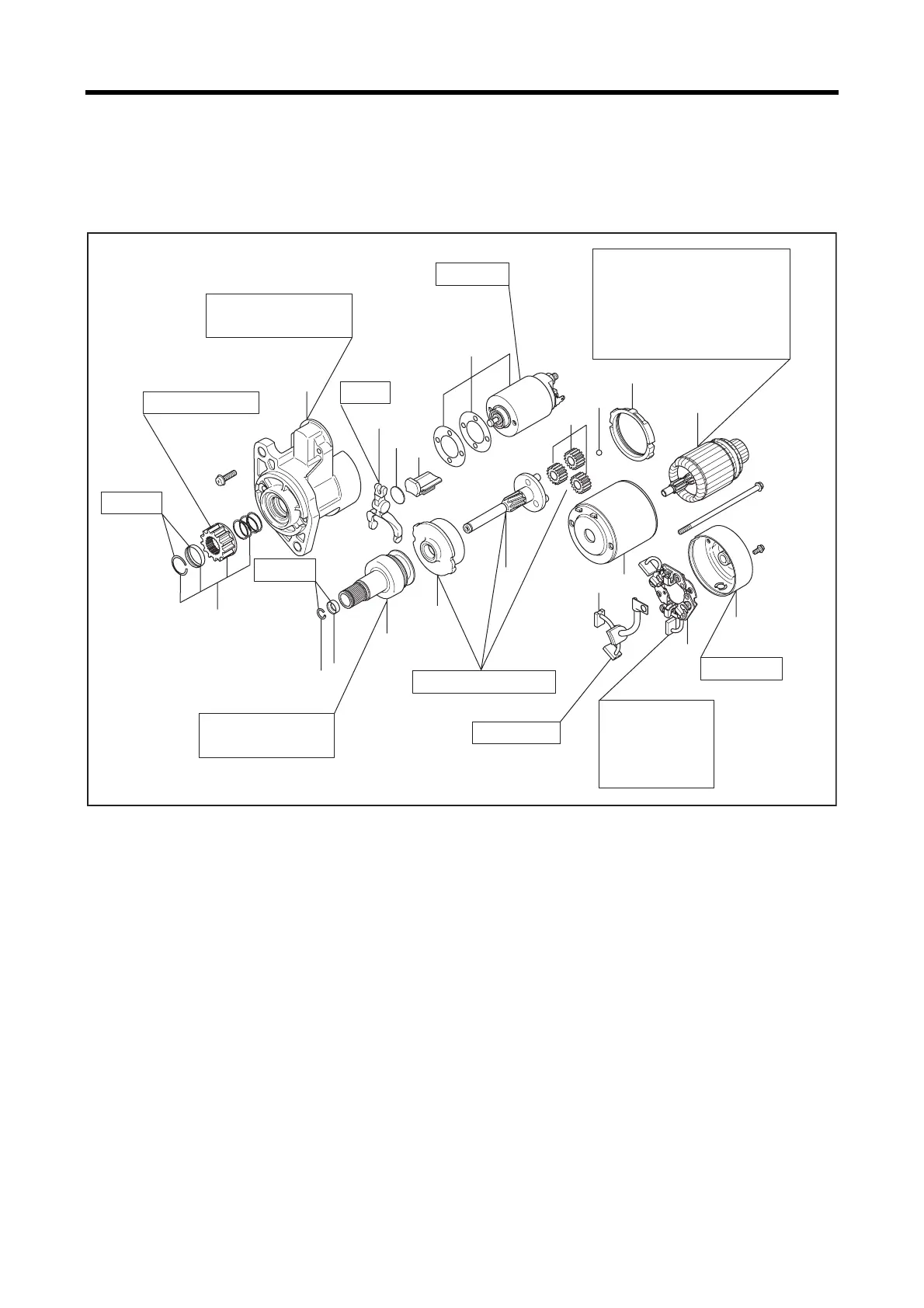

Disassembling and inspecting starter(M001T68281(12V-1.7kW))
Disassembling sequence
1 Pinion set 8 Packing 15 Snap ring
2 Magnet switch 9 Packing 16 Stopper
3 Rear bracket 10 Plate 17 Overrunning clutch
4 Brush holder 11 Ball 18 Internal gear
5 Brush assembly 12 Planetary gear 19 Gear shaft
6 Armature 13 Lever
7 Yoke 14 Front bracket
1
14
2
13
10
9
12
11
8
6
15
16
17
18
19
5
7
4
3
Coil open, Coil shorted,
Coil continuity,
Rough surface of commutator,
Commutator worn,
Gear damaged, Gear worn
Worn pinion gear
Coil open
Bearing loose, noisy,
binding
Overrunning clutch
operation
Gear worn, damaged
Worn brush
Worn brush,
Spring rust,
Spring fatigue,
Holder insulation
Wear
Worn metal
Replace
Replace
