ELECTRICAL SYSTEM
12-19

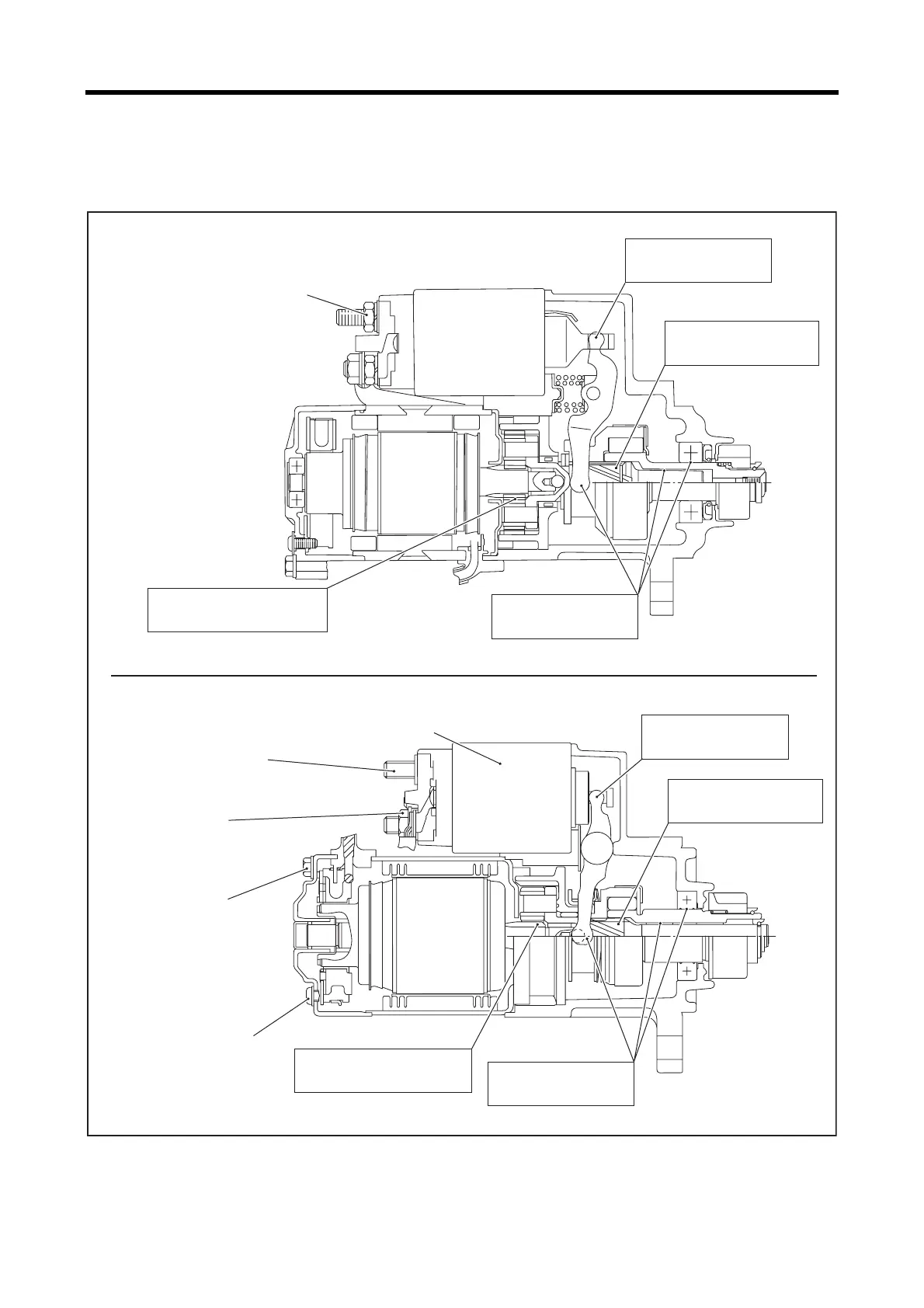

2.5 Reassembling starter
Reassembling starter
M008T70471Aޔ M008T81071A
M001T68281
Terminal M nut
8.8 to 12.7 N·m
{0.9
to 1.3 kgf·m}
[6.5
to 9.4 lbf·ft]
Through bolt
5.0 to 7.1 N·m
{0.5 to 0.7 kgf·m}
[3.7 to 5.2 Ibf·ft]
Brush holder mounting screw
2.4 to 4.4 N·m
{0.2 to 0.4 kgf·m}
[1.8 to 3.3 Ibf·ft]
Magnet switch
4.1 to 7.6 N·m {0.4 to 0.8 kgf·m}
[3.0 to 5.6 Ibf·ft]
Apply Multemp #6129
(Kyodo Yushi made)
Apply Molykote RAG650
(Dow Corning Toray made)
Terminal B nut
9.8
to 11.8 N·m
{1.0
to 1.2 kgf·m}
[7.2
to 8.7 lbf·ft]
Terminal B nut
9.8
to 11.8 N·m
{1.0
to 1.2 kgf·m}
[7.2
to 8.7 lbf·ft]
Apply Multemp OA-171
(Kyodo Yushi made)
Apply Multemp #6129
(Kyodo Yushi made)
Apply Molykote RAG650
(Dow Corning Toray made)
Apply Multemp #6129
(Kyodo Yushi made)
Apply Multemp OA-171
(Kyodo Yushi made)
Apply Multemp #6129
(Kyodo Yushi made)
