ELECTRICAL SYSTEM
12-27

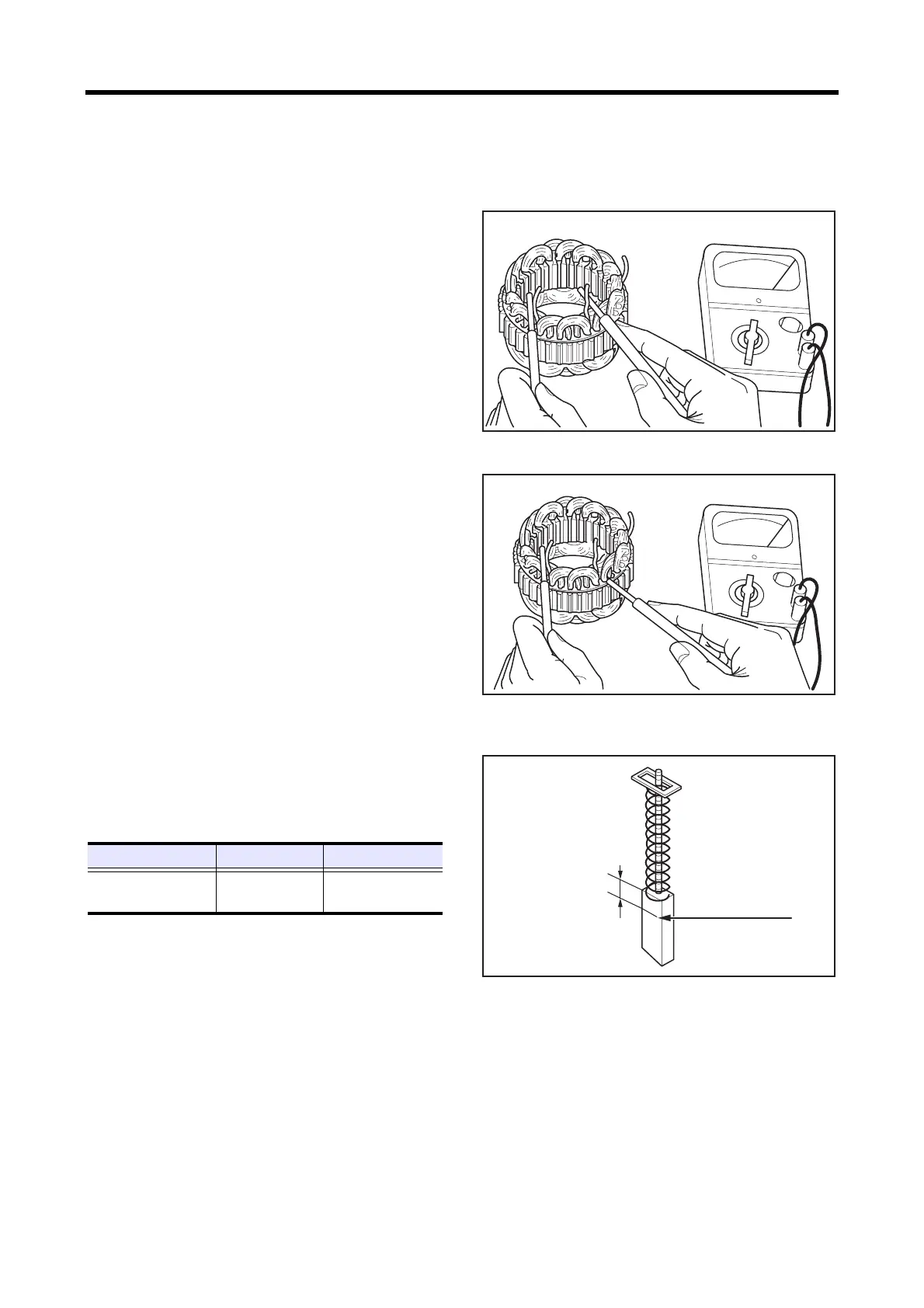

2.6.6 Inspecting stator
(1) Checking continuity between lead wires
Check that there is continuity between a pair of lead
wires.
Also check that there is no continuity between a pair of
lead wires and other pair of lead wires.
If defective, replace the stator.
(2) Checking insulation between lead wire and core
Check that there is no continuity between each lead
wire and the stator core. If continuity is observed,
replace the stator.
Note: The core cannot be replaced as a single item.
Checking for continuity between leads
Checking for grounding between the leads
and the core
2.6.7 Inspecting brushes for wear
Measure the length of the brushes. If the measured value is
less than the limit, replace both the brush holder assembly
and the brush assembly with new ones.
Inspecting brushes
Item Standard Limit
Brush length
18.5 mm
[0.7283 in.]
5.0 mm
[0.197 in.]
Wear limit line
