key is turned OFF, and the belt winding force does not
return to its original condition immediately after the
ignition key is turned OFF so the passenger does not
feel any physical disorder.
ELECTRIC TYPE LOW TENSION SEAT BELT
<Vehicles for General Export and GCC>
There is an electric type low tension mechanism in the
front seat belt retractor to reduce belt tension and the
feeling of pressure when the seat belt is buckled.
Furthermore, the tension reducer is maintained in an ON
condition by the ETACS for 30 seconds after the ignition

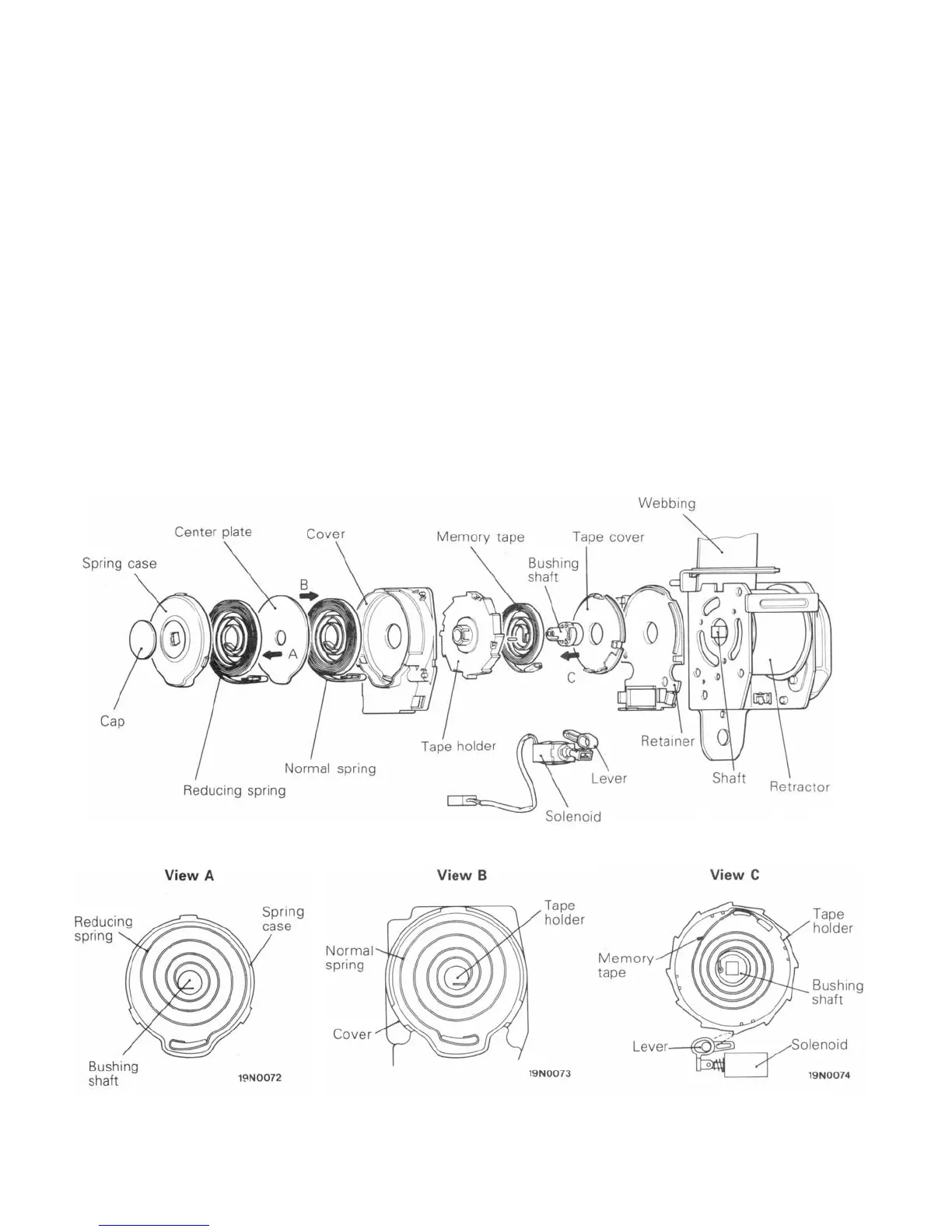

STRUCTURAL DESCRIPTION
The retractor shaft and bush shaft are coupled. The
reducing spring and normal spring are springs used to
wind the webbing. The reducing spring ends are fixed to
the bush shaft and the spring case, and the normal
spring ends are fixed to the tape holder and cover, and
stored in the cover. There is a solenoid in the cover and
when the seat belt is buckled, the solenoid is activated,
the lever engages the tape holder, locks the normal
6-10 INTERIOR - Seat Belt
spring, thus lessening the feeling of constriction. The
purpose of the memory tape is to eliminate the
difference in elongation ratio of the reducing spring and
normal spring. The ends are fixed respectively to the
tape holder and bushing shaft and stored together with
the bushing shaft in the tape holder in a wound up
condition.
19N0080
