The propeller shaft is a 3-section 4-joint shaft with 2
center bearings. This division into 3 sections
increases the vibration frequency characteristics o
the shaft bending, and reduces vibration and noise
when driving at high speed. The joints for connecting
each part of the propeller shaft are as follows; No.1,
No.2 and No. 4 joints are cross type universal joints
and No.3 joint is a Lobro joint (LJ) that can slide and
has small friction in the direction of the shaft. This
structure helps reducing torque fluctuation, vibration
and noise. Furthermore, the rear propeller shaft is a
vibration-control type shaft (using rubber) with an
inner tube inserted in the outer tube to reduce
vibration and noise from the drive train.
SPECIFICA TIONS
NOTE
Propeller shaft length indicates the length between center points of each joint.

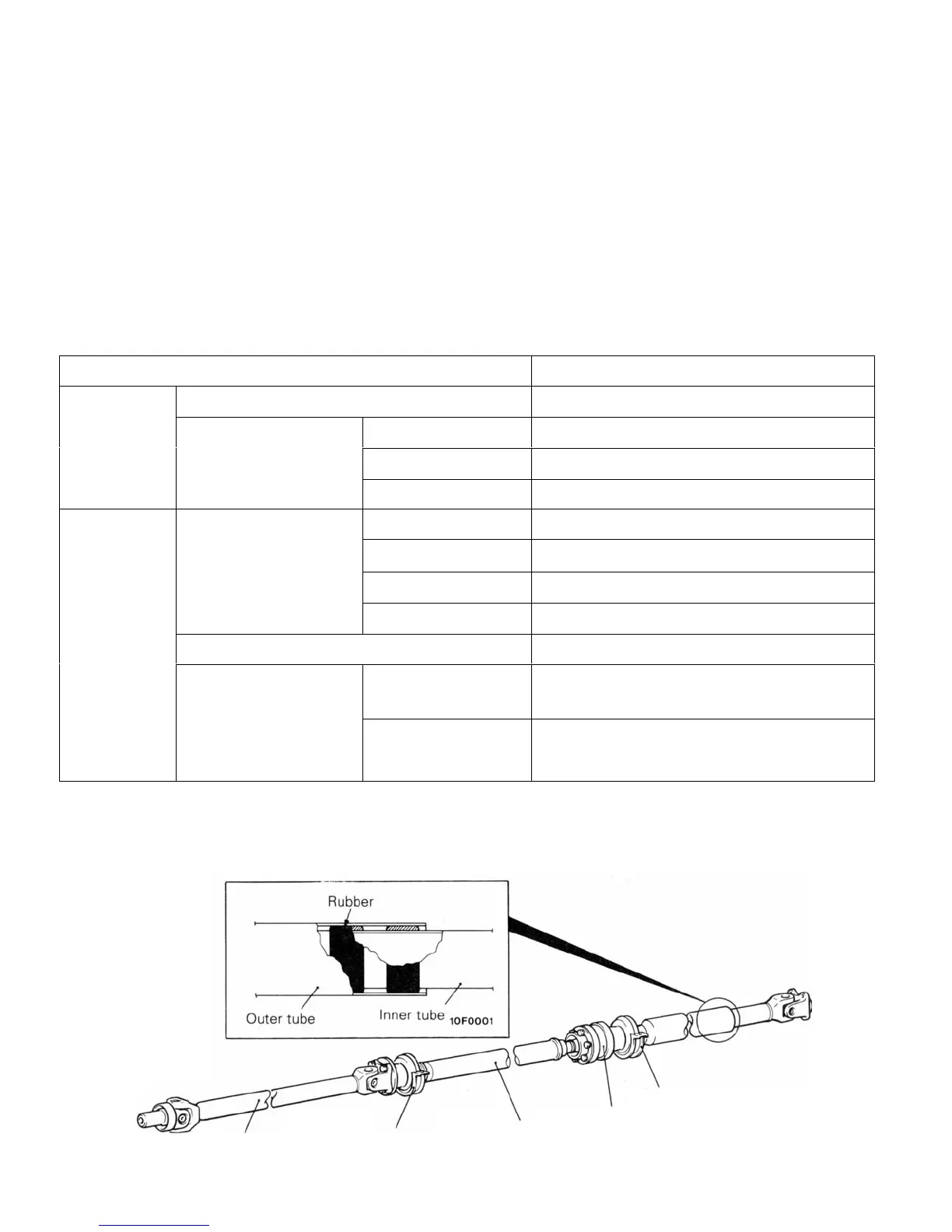

CONSTRUCTION DIAGRAM
10F0007
POWER-TRANSMISSION COMPONENTS - Propeller Shaft 2-11
PROPELLER SHAFT
Item Specification
Type 4-joint propeller shaft
Propeller Length x 0.0. Front 673.5 x 65 (26.52 x 2.56)
shaft mm (in.) Center 662.5 x 65 (26.08 x 2.56)
Rear 555.5 x 75 (21.87 x 2.95)
Universal Type No.1 Cross type
joint No.2 Cross type
No.3 Constant velocity type (L6bro joint, LJ95)
.
No.4 Cross type
Lubrication Pre-packed
Size mm (in.) Cross type joint 17.996 (0.7085)
journal 0.D.
Constant velocity 99.73 (3.93)
joint 0.D.
Center bearing
Lobro joint
Center propeller shaft
Center bearing
Front propeller shaft
To Next Page
