Front wiring harness
WIRING HARNESS
The wiring harness is divided into the main wiring
harnesses [front wiring harness, body wiring harness
(LH, RH), control wiring harness, instrument panel wiring
harness] and sub wiring harnesses (door wiring harness,
tailgate wiring harness, roof wiring harness) and has the
following characteristics.
•
junction block, which is one unit consisting o
intermediate connectors for the harnesses, fuse
boxes and relay boxes, is used to improve reliability.

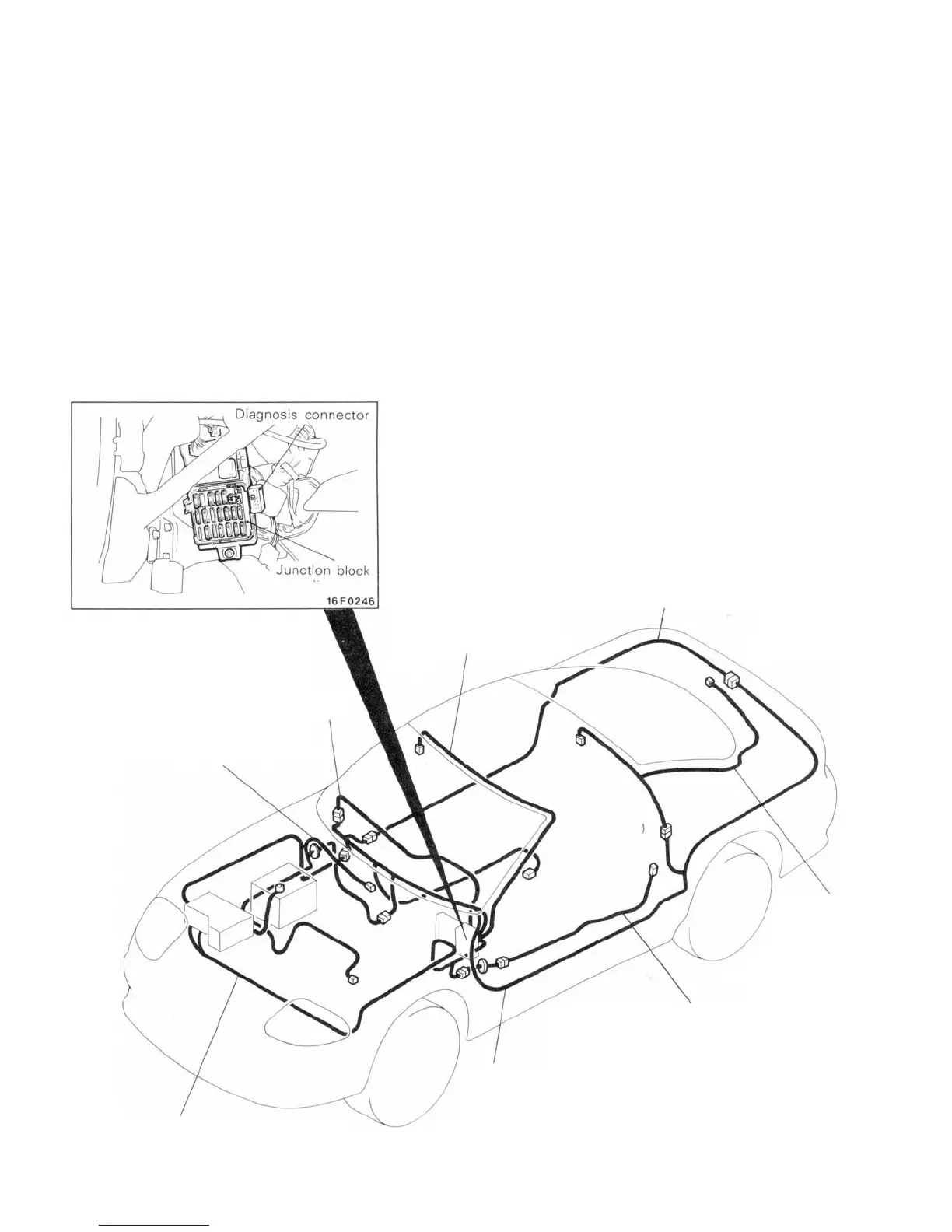

STRUCTURAL DIAGRAM
CAVS (Compressed Conductor Automobile Vinyl
Semi-rigid Wire) is used for the electrical wiring
harness to make it lighter.
• There is central connector (diagnosis connector) for
diagnosis inspection of each electronic control
system for improved serviceability.
• Connector terminals in the control units and sensors
where weak electric current from the electronic
control systems flows are gold-plated to assure flow
of current.
NOTE
(1) This figure shows the main wiring harnesses only.
(2) * mark indicates it is equipped on the right side also.
Instrument wiring harness
Control wiring harness
EQUIPMENT - Wiring Harness 7-3
Body wiring harness (RH)
Roof wiring harness
Tailgate wiring
harness
Door wiring harness*
Body wiring harness (LH)
F
