71N0107
ENGINE -
Intake/Exhaust System
INTAKE/EXHAUST SYSTEM

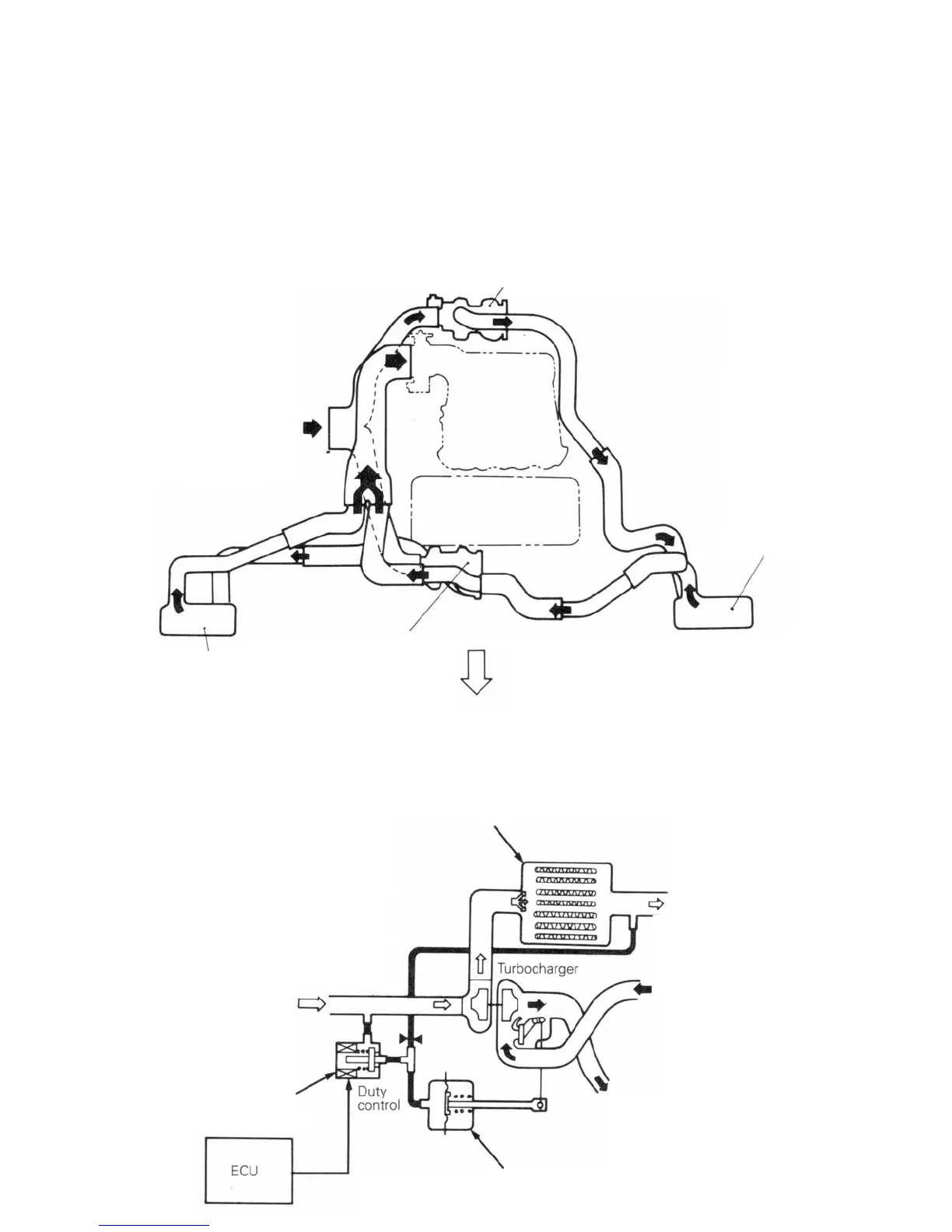

TWIN TURBOCHARGERS AND TWIN INTERCOOLERS
Compact, lightweight, turbochargers with outstanding
response are used in each bank, front and rear, for the
best turbo feeling at all speeds, from low to high. The
turbocharger is a water-cooled TD04 type with waste
gate valve. The intercoolers are very efficient and each
one is arranged on the front and rear banks just like the
turbocharger. With the combined action of the
turbocharger and intercooler, powerful acceleration is
possible from any speed.
Intake
Intercooler
Turbocharger
Turbocharger
Intercooler
1-10
TURBO PRESSURE CONTROL
The waste gate operating pressure is controlled to
make possible flat turbo pressure characteristics
over the entire rpm range and to provide a linear ac:-
celeration feeling.
Intercooler
Air from
air cleaner
Waste gate
solenoid valve
Waste gate actuator
¢
Air into engine
Exhaust
from engine
Exhaust to
exhaust pipe
71N0108
