POWER STEERING
• The steering wheel comes with SRS (Supplemental
Restraint System). (Refer to GROUP 6-SRS for
SRS.)
• The steering column has a shock absorbing struc-
ture and tilt steering mechanism.
SPECIFICATIONS
The oil pump is a vane type oil pump with a fluid
flow control system so the steering force varies
according to engine speed.
• The steering gear and linkage uses an integral type
rack and pinion system.

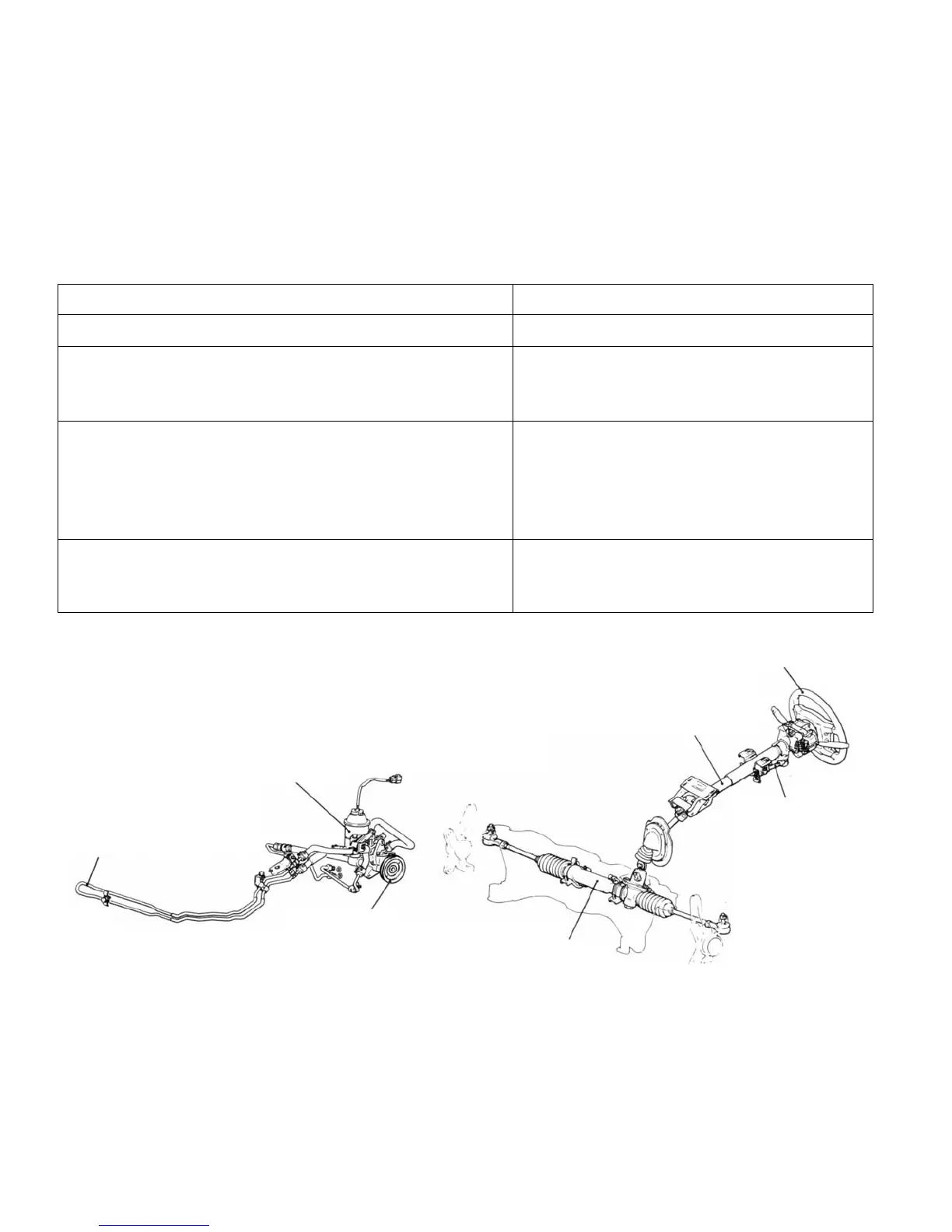

Items Specifications
Steering wheel maximum turns 2.52
Steering angle (vehicle in unladen)
Inner wheel 33°45' ± 2°
Outer wheel 28°21'
Steering gear and linkage
Type Integral type
Gear type Rack and pinion
Gear ratio
(infinity)
Rack stroke mm (in.) 144 (5.7)
Oil pump type Vane type with fluid flow control system
Displacement cm
3
/rev. (cu.in. / rev.) 9.6 (0.59)
Relief set pressure MPa (kg / cm
2
, psi) 8 (80, 1,138)
13F0054
3-22 DRIVE-CONTROL COMPONENTS - Power Steering
Steering wheel
Steering column
Tilt lever
Steering gear and linkage
13F0044
Oil
pump
Oil reservoi
Cooler tube
