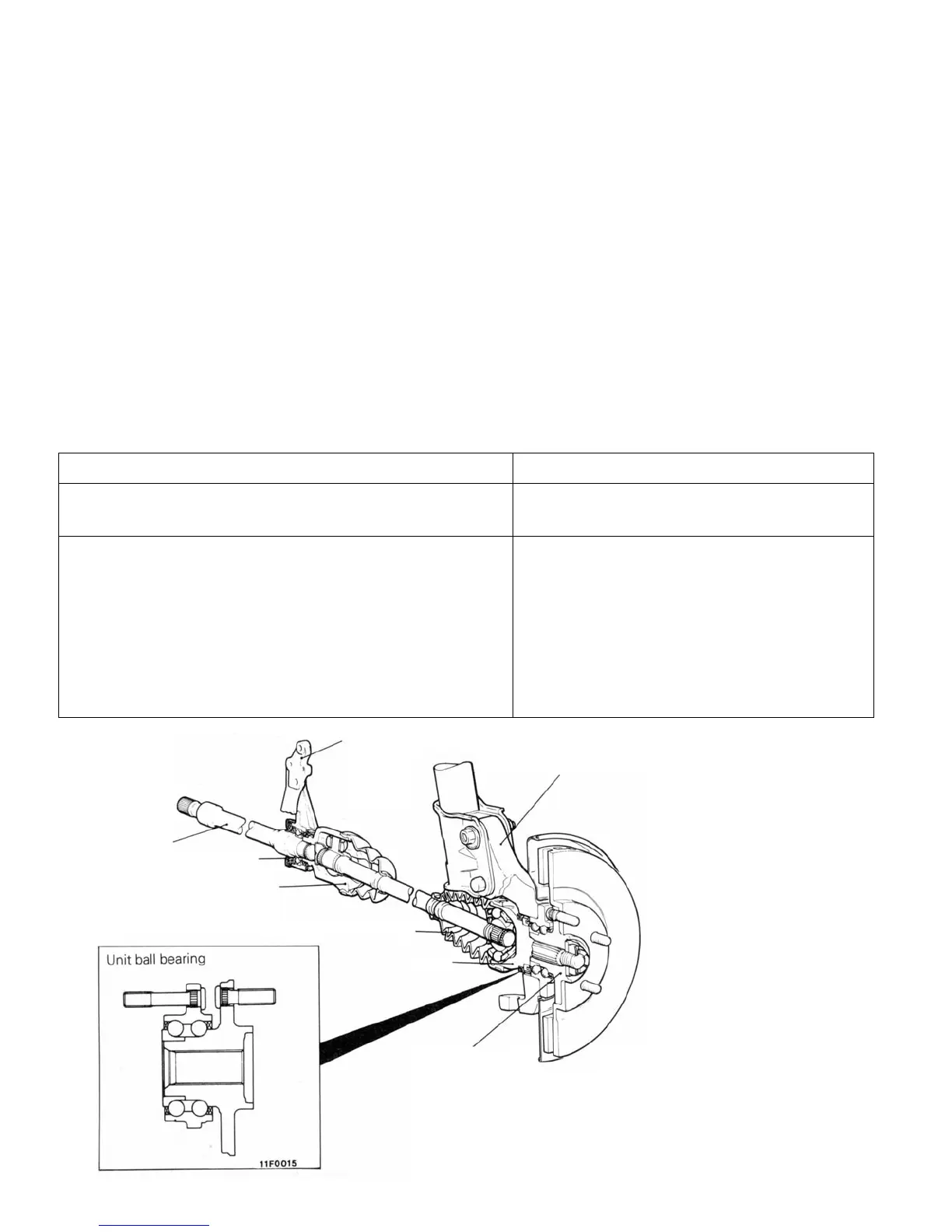

FRONT AXLE
The drive shaft is of the Birfield joint (B.J.)-tripod joint
(T.J.) type. This type features high power transmission
efficiency and low vibration and noise. It has the
following features.
B.J.
• Large operating joint angle
• 'Compact size and decreased space req'ulrements
T.J.
• Axially slidable
• Smaller sliding friction
• The B.J. joint boot is made of highly-durable resin to
provide improved reliability
SPECIFICATIONS
The B.J. joint boot is made of highly-durable resin to
provide improved reliability
Item Specifications
Hub, knuckle
Bearing type Unit ball bearing
Drive shaft
Joint type Outer B.J.
Inner T.J.
Length (between joints) x 0.D.
L.H. mm (in.) 419 x 26
(16.5 x 1.02)
R.H. mm (in.) 391 x 26
(15.4 x 1.02)
Inner shaft
Bracket
kn,uckle
11F0048
2-12 POWER-TRANSMISSION COMPONENTS - Front Axle
Centre bearing
T.J.
B.J.
Unit ball bearing
Resin boot
