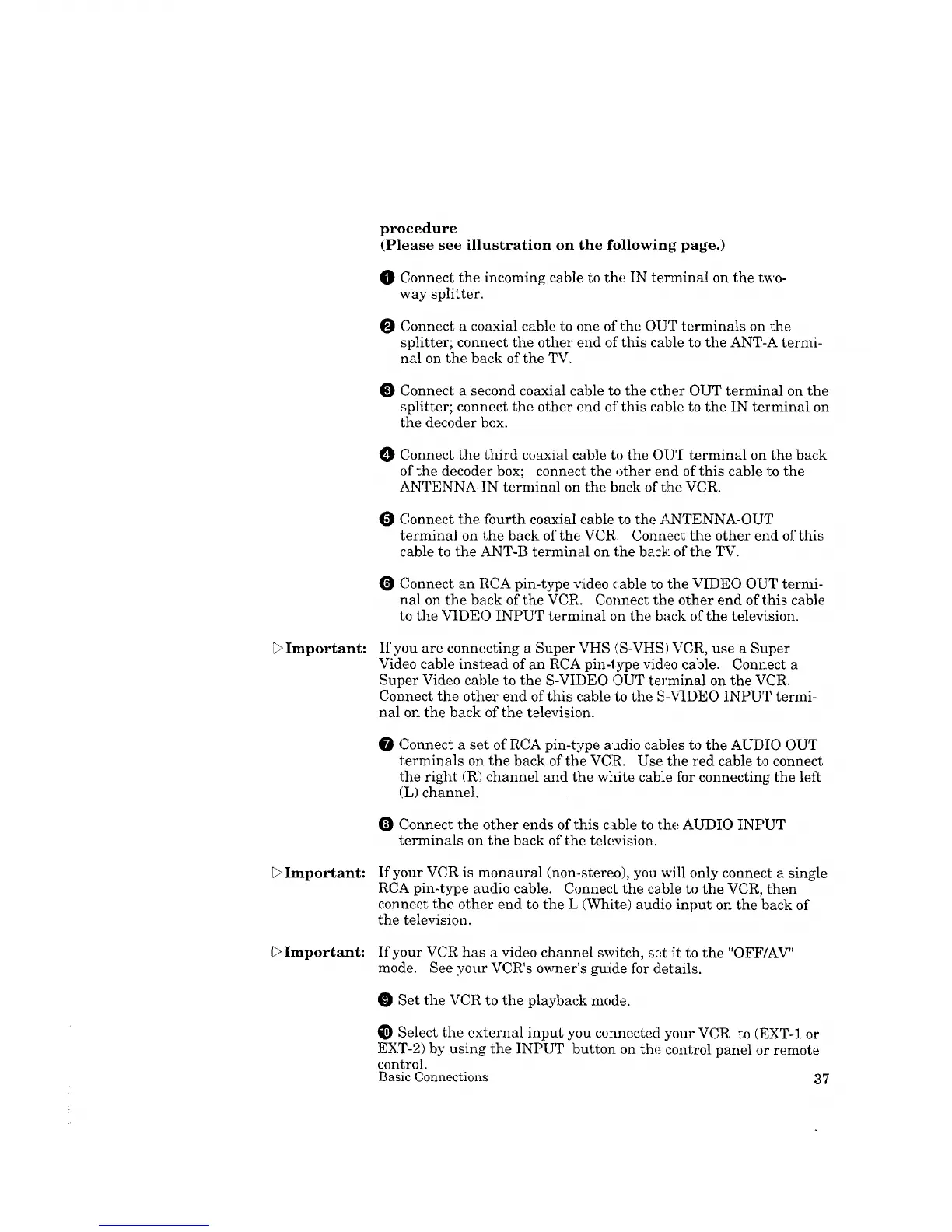

procedure
(Please see illustration on the following page.)
O Connect the incoming cable to the IN terminal on the two-
way splitter.
Connect a coaxial cable to one of the OUT terminals on 1;he
splitter; connect the other end of this cable to the ANT-A termi-
nal on the back of the TV.
Connect a second coaxial cable to the other OUT terminal on the
splitter; connect the other end of this cable to the IN terminal on
the decoder box.
O Connect the third coaxial cable to the OUT terminal on the back
of the decoder box; connect the other end of this cable to the
ANTENNA-IN terminal on the back of the VCR.
Connect the fourth coaxial cable to the ANTENNA-OUT
terminal on the back of the VCR Connecl_ the other end of this
cable to the ANT-B terminal on the back of the TV.
Connect an RCA pin-type video cable to the VIDEO OUT termi-
nal on the back of the VCR. Connect the other end of this cable
to the VIDE() INPUT terminal on the back of the televilsion.
Important: If you are connecting a Super VHS (S-VHS) VCR, use a Super
Video cable instead of an RCA pin-type video cable. Conn.ect a
Super Video cable to the S-VII)EO OUT terminal on the VCR.
Connect the other end of this cable to the S-¥_IDEO INPUT termi-
nal on the back of the television.
Connect a set of RCA pin-type audio cables to the AUDIO OUT
terminals on the back of the VCR. Use the red cable to connect
the right (R) channel and the white cablLefor connecting the left
(L) channel.
O Connect the other ends of this cable to the AUDIO INPUT
terminals on the back of the television.
_>Important: If your VCR is monaural (non-stereo), you will only connect a single
RCA pin-type audio cable. Connect the cable to the VCR, then
connect the other end to the L (White) audio input on the back of
the television.
Important: If your VCR has a video channel switch, set it to the "OFF/AV"
mode. See your VCR's owner's gu:ide for details.
Set the VCR to the playback mode.
O Select the external input you connected your VCR to (EXT-1 or
• EXT-2) by using the INPUT button on the control panel or remote
control.
Basic Connections 37
