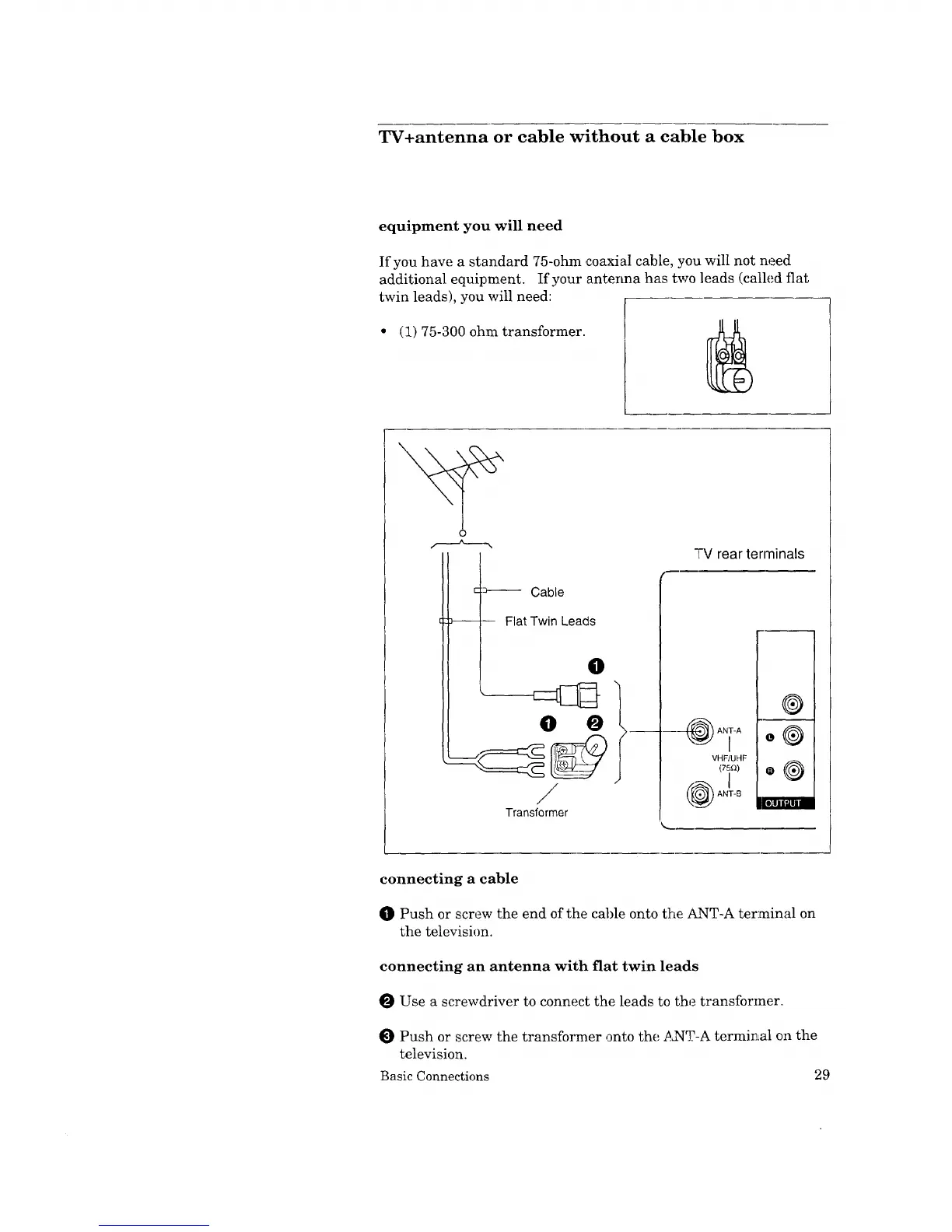

TV+antenna or cable without a cable box
equipment you will need
If you have a standard 75-ohm coaxial cable, you will not need
additional equipment. If your antenna has two leads (called fiat
twin leads), you will need:
(1) 75-300 ohm transformer.
_O_ ::_-_ Cable
}-
/
Transformer
TV rear terminals
--@ ANi-A
VHF/UHF
(75_)
(_ AN!-B
o®
[o]!l_l_!il
connecting a cable
0 Push or screw the end of the cable onto the ANT-A terminal on
the television.
connecting an antenna with fiat twin leads
O Use a screwdriver to connect the leads to the transformer.
O Push or screw the transformer onto the ,4_NT-A terminal on the
television.
Basic Connections 29
