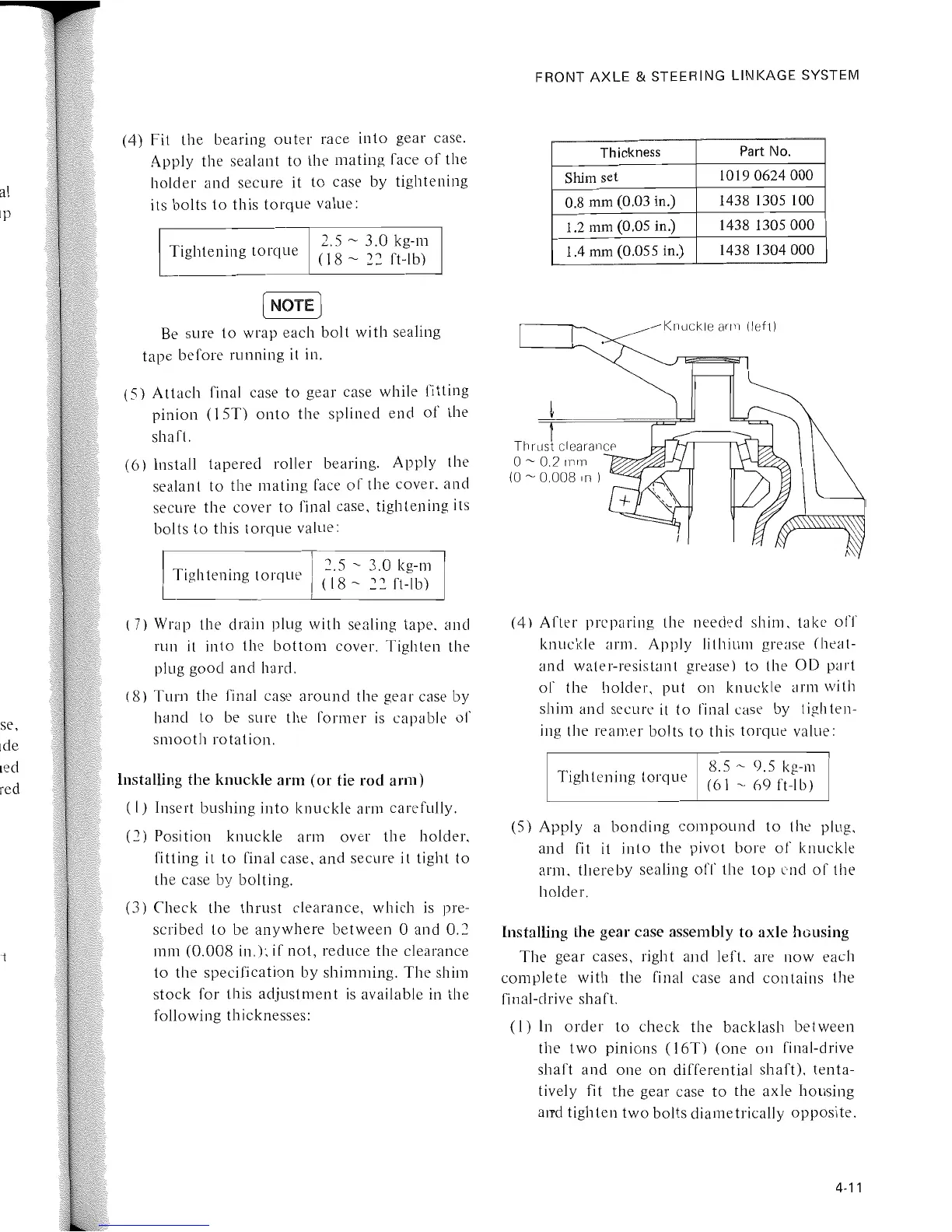

(4) Fit the bearing outer race into gear case.
Apply the sealant to the mating face of the
holder and secure it to case by tightening
its bolts to this torque value:
Tightening torque
2.5 ~ 3.0 kg-m
(18 ~ 22 ft-lb)
[NOTE]
Be sure to wrap each bolt with sealing
tape before running it in.
(5) Attach final case to gear case while fitting
FRONT AXLE & STEERING LINKAGE SYSTEM
Thickness
Part No.
Shim set
10190624000
0.8 mm (0.03 in.)
1438 1305 100
1.2 mm (0.05 in.)
1438
1305000
1.4 mm (0.055 in.)
1438
1304000
---Klluckle ann (left)
pinion (1ST) onto the splined end of the =~~ ~======a~d
sha ft. ------~
(6) Install tapered roller bearing. Apply the
sealant to the mating face of the cover. and
secure the cover to final case, tightening its
bolts to this torque value:
I I .. . I 2.5 ~ 3.0 kg-m
LTlghtel1lng
torque I (18 ~ 22 ft-Ib)
(7) Wrap the drain plug with sealing tape, and
run it into the bottom cover. Tighten the
plug good and hare1.
(8) Turn the final case around the gear case by
hand to be sure the former is capable of
smooth rotation.
Installing the knuckle arm (or tie rod arm)
(1) Insert bushing into knuckle arm carefully.
(2) Position knuckle ann over the holder,
fitting it to final case, and secure it tight to
the case by bolting.
(3) Check the thrust clearance, which is pre-
scribed to be anywhere between 0 and 0.2
mm (0.008 in.); if not, reduce the clearance
to the specification by shimming. The shim
stock for this adjustment is available in the
following thicknesses:
(4) After preparing the needed shim. take off
knuckle arm. Apply lithium grease (heat-
and water-resistant grease) to the 00 part
of the holder, put on knuckle arm with
shim and secure it to final case by tighten-
ing the reamer bolts to this torque value:
Tightening torque
8.5 ~ 9.5 kg-m
(61
~ fJ9 ft-Ib)
(5) Apply a bonding compound to the plug.
and fit it into the pivot bore of knuckle
a 1'111 , thereby sealing off the top end of the
holder.
Installing the gear case assembly to axle housing
The gear cases, right and left. are now each
complete with the final case and contains the
final-drive shaft.
(I) In order to check the backlash between
the two pinions (l6T) (one on final-drive
shaft and one on differential shaft), tenta-
tively fit the gear case to the axle housing
and tighten two bolts diametrically opposite.
4-11
