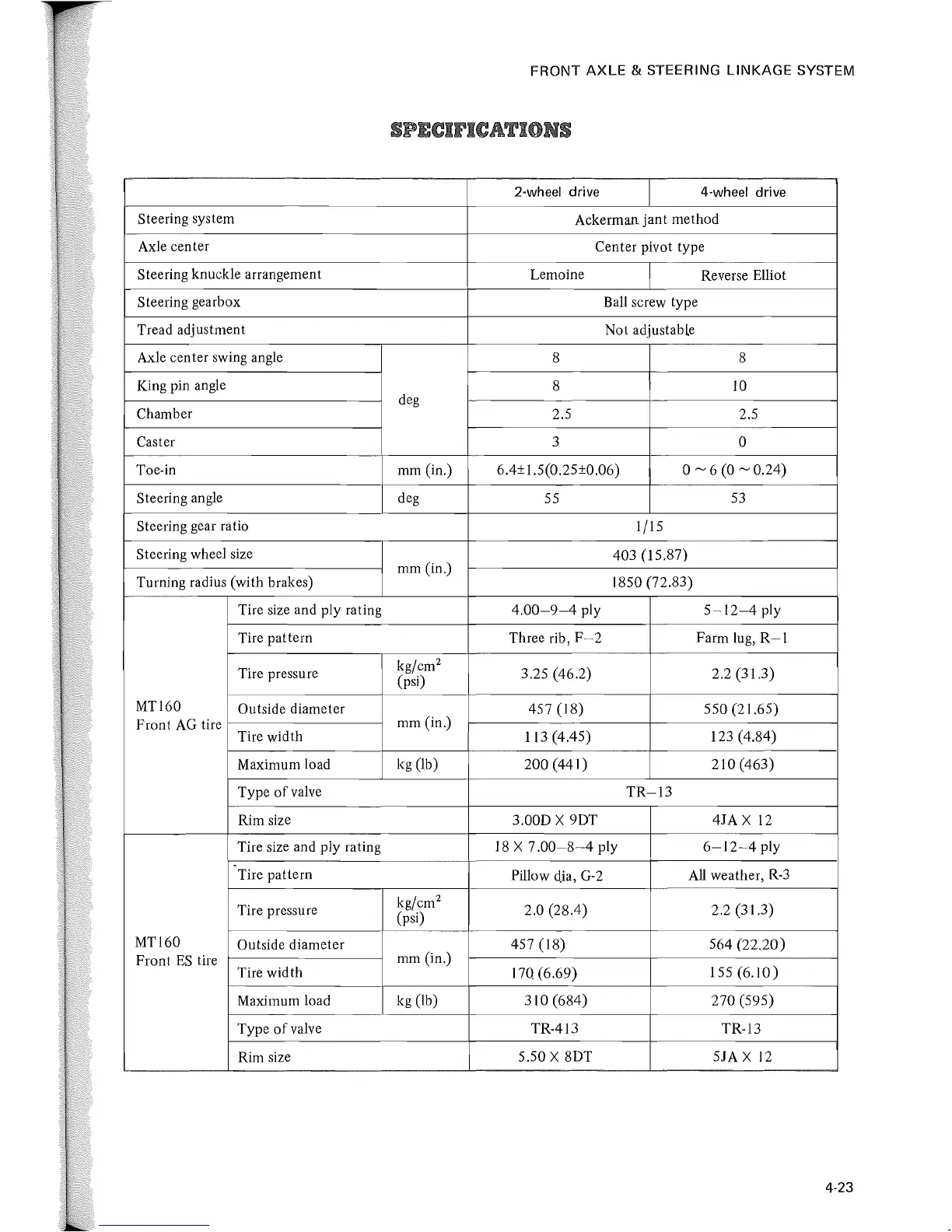

FRONT AXLE & STEERING LINKAGE SYSTEM
2-wheel drive 4-wheel drive
Steering system
Ackerman jant method
Axle center
Center pivot type
Steering knuckle arrangement
Lemoine
Reverse Elliot
Steering gearbox
Ball screw type
Tread adjustment
Not adjustable
Axle center swing angle
8 8
King pin angle
8
10
deg
Chamber
2.5
2.5
Caster
3 0
Toe-in
mm (in.) 6.4±1.5(0.25±0.06)
o ~ 6 (0 ~ 0.24)
Steering angle deg
55
53
Steering gear ratio
1/15
Steering wheel size
403 (15.87)
Turning radius (with brakes)
mm (in.)
1850 (72.83)
Tire size and ply rating
4.00-9-4 ply
5-12-4 ply
Tire pattern Three rib,
F-2 Farm lug, R-l
Tire pressure
kg/cm
2
3.25 (46.2) 2.2 (31.3)
(psi)
MT160
Outside diameter
457 (18) 550 (21.65)
Front
AG tire
mm (in.)
Tire width
113 (4.45) 123 (4.84)
Maximum load kg (lb)
200 (441) 210 (463)
Type
of valve TR-13
Rim size 3.00D X 9DT 4JA X 12
Tire size and ply rating 18 X 7.00-8-4 ply 6-12-4 ply
-
Tire pattern
Pillow dJa, G-2
All weather, R-3
Tire pressure
kg/cm
2
2.0 (28.4) 2.2 (31.3)
(psi)
MT160
Outside diameter
457 (18) 564
(22.20)
Front ES tire
mm (in.)
155(6.10) Tire width
17Q (6.69)
Maximum load kg (lb)
310 (684)
270 (595)
Type
of valve
TR-413 TR-13
Rim size
5.50 X 8DT 5JA X
12
4-23
