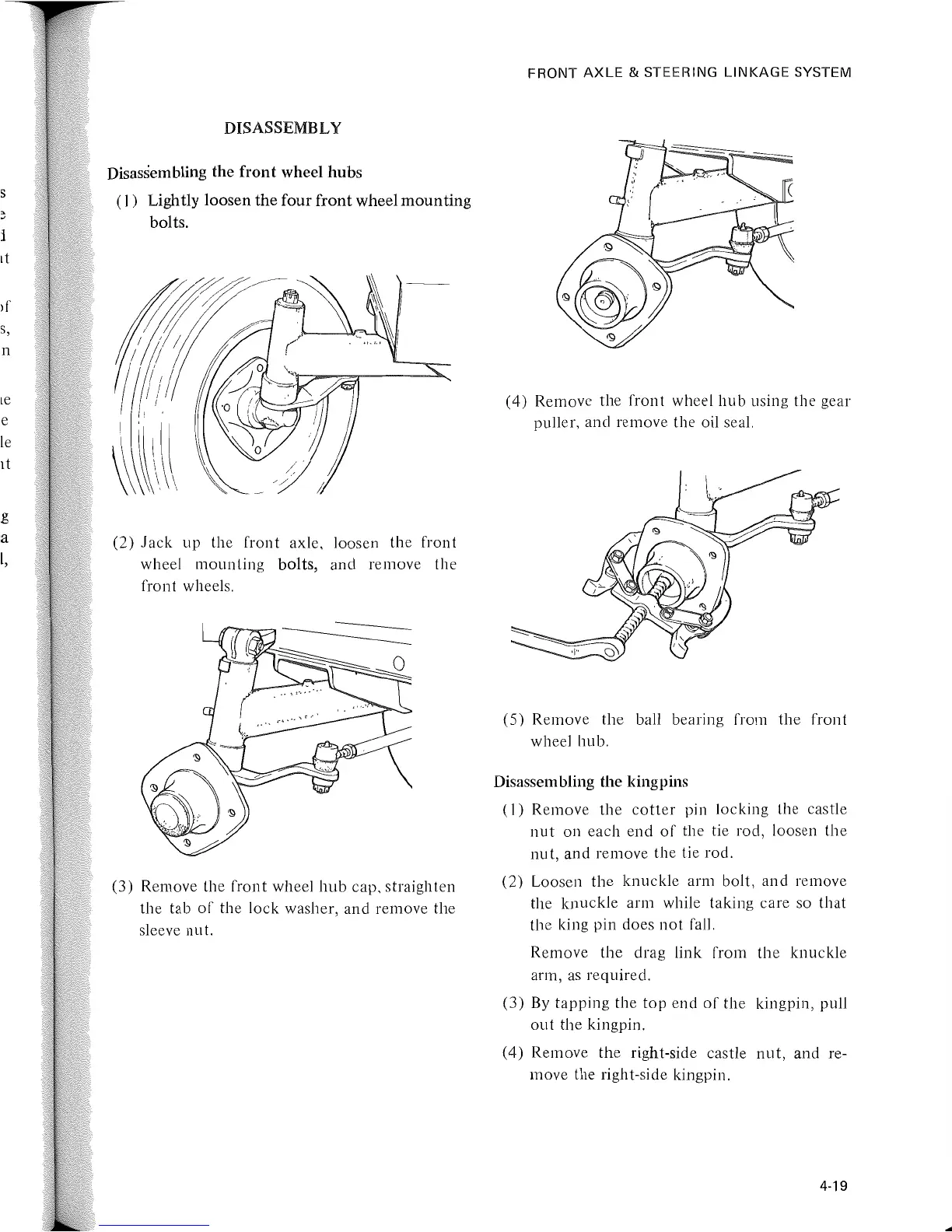

DISASSEMBLY
Disassembling the
front wheel hubs
(I) Lightly loosen the four front wheel mounting
bolts.
(2) Jack up the
front axle, loosen the front
wheel mounting bolts, and remove the
front wheels.
(3) Remove the front wheel hub cap, straighten
the tab
of the lock washer, and remove the
sleeve nut.
FRONT AXLE & STEERING LINKAGE SYSTEM
(4) Remove the front wheel hu b using the gear
puller, and remove the oil seal.
(5) Remove
the ball bearing from the front
wheel hub.
Disassembling the kingpins
(I) Remove the cotter pin locking the castle
nut 011 each end of the tie rod, loosen the
nut, and remove the tie rod.
(2) Loosen
the knuckle arm bolt, and remove
the knuckle arm while taking care so
that
the king pin does not fall.
Remove
the drag link from the knuckle
arm,
as required.
(3)
By tapping the top end of the kingpin, pull
out the kingpin.
(4) Remove
the right-side castle nut, and re-
move the right-side kingpin.
4-19
