4 ABOUT QD51 (-R24) FUNCTIONS
4.3.1 Printing from a printer connected to an interface that is not set in the console
Here, the way of thinking in the case of printing from a printer connected to an interface
that is not set in the console is explained.
QD51
CH.1
QD51
RUN ERR
CH.1
CH.2
CH.1
CH.2
QD51
RS-232
RS-232
PRG
SD
RD
P.RUN
SD
RD
Printer
Data output
SIN(120°)

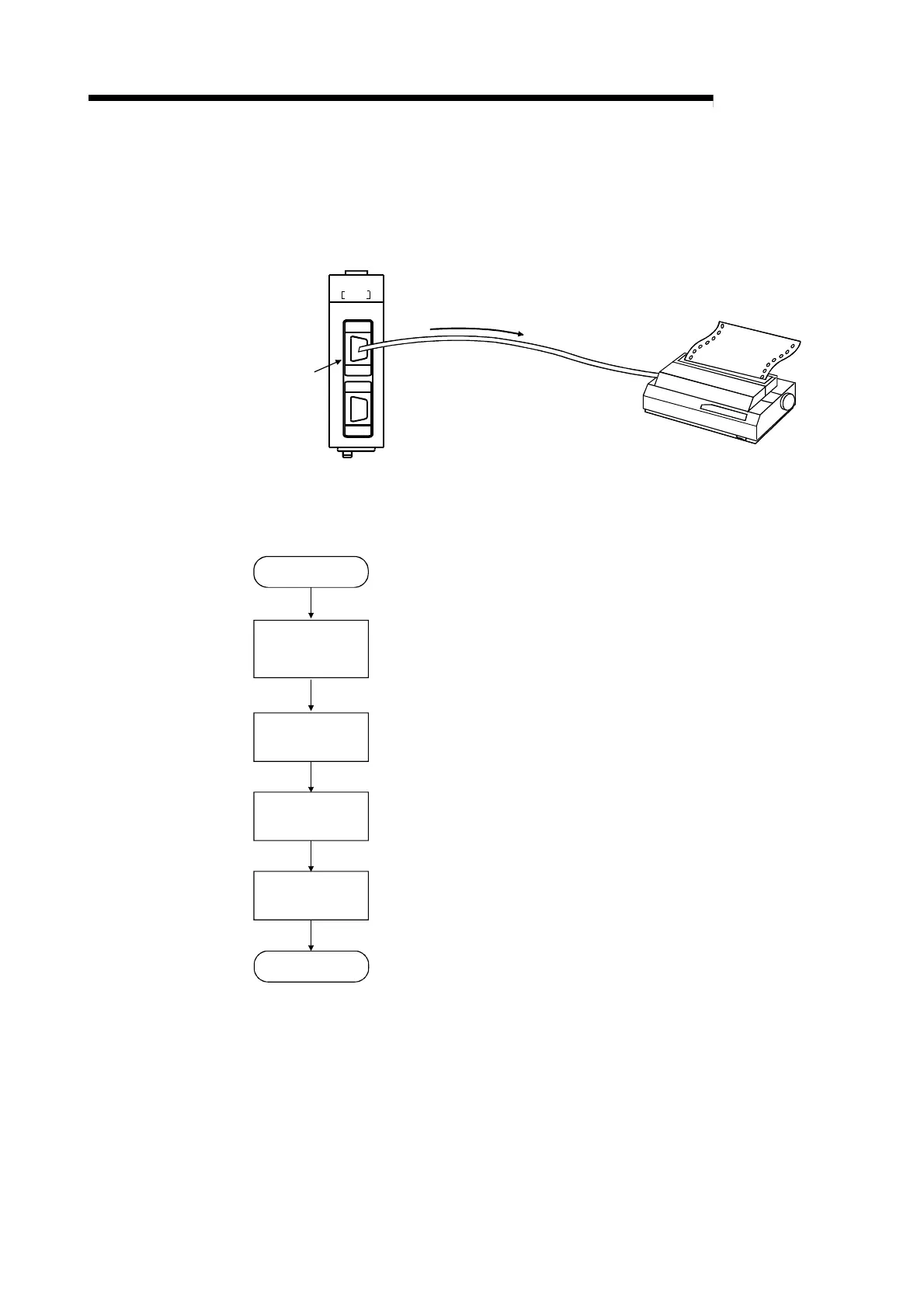

[Printout procedure]
The procedure for printing from a printer connected to an interface that is not set in the
console is shown below.
Start
End
Output data to the
terminal.
Close the terminal
channel.
······ Output data to the terminal by the LPRINT command, etc.
······ Open the channel which the terminal is connected to using
the ZOPEN command.
Set the data output
destination.
······ Set the data output destination in the channel the terminal is
connected to using the ZLDVcommand.
······ Close the channel which the terminal is connected to using
the ZCLOSE command.
Open the channel of
the terminal where
the data are to be
displayed.
