2 - 10 2 - 10
MELSEC-Q
2 SYSTEM CONFIGURATION AND USABLE FUNCTIONS

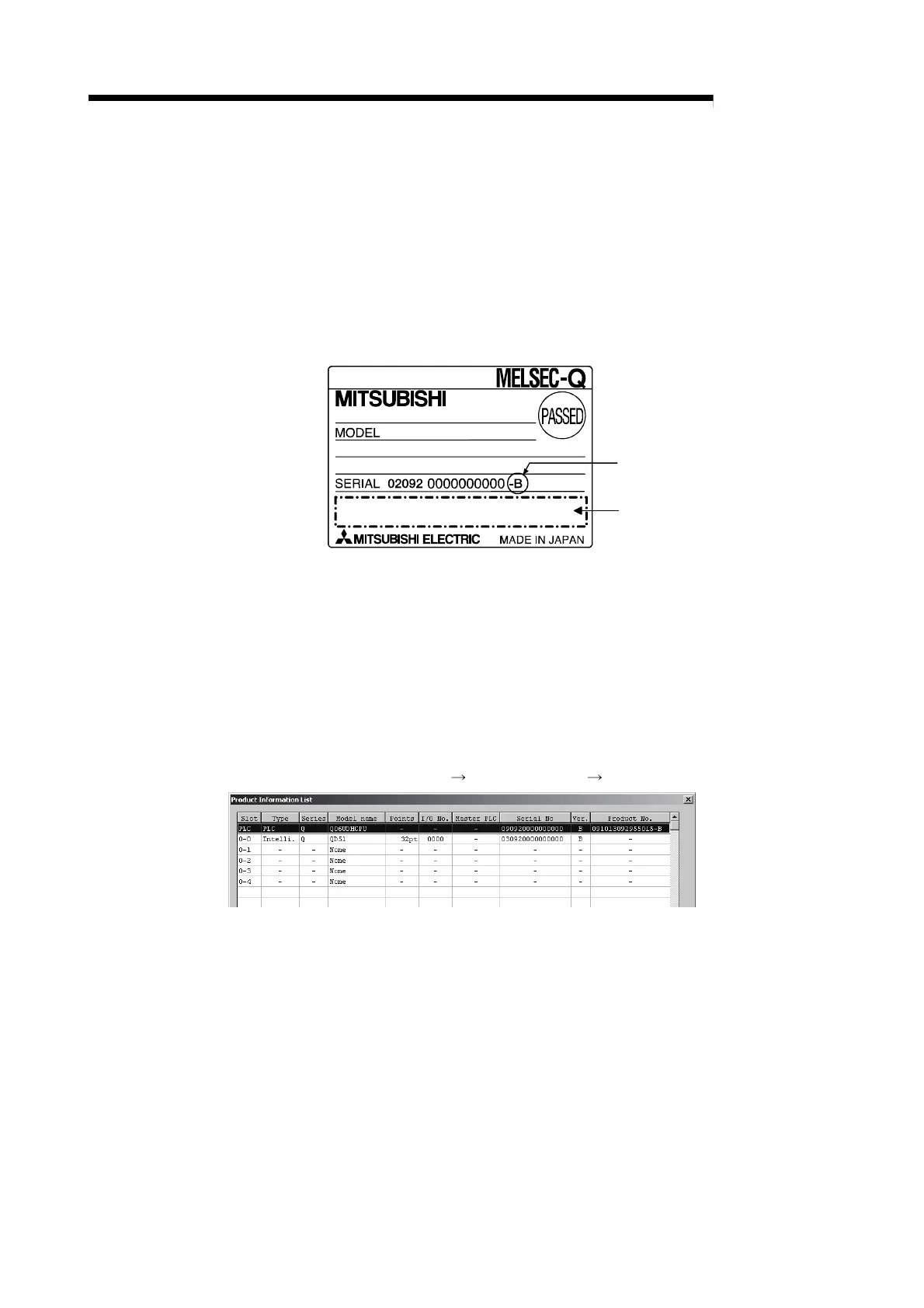

2.6 How to Confirm the Function Version
This section describes how to confirm the function version of the QD51(-R24).
(1) How to confirm the function version of QD51(-R24)
(a) Looking at the "rating plate's SERIAL section" on the side face of the
module
The serial No. and function version of the module is shown in the SERIAL
field of the rating plate.
Function version
Relevant regulation standards
(b) Using GX Developer
The serial No. and function version of the module are displayed on the
"Production Info. List" and "Module’s Detailed Information" screens of GX
Developer.
The following explains how to check them on the "Production Info. List"
screen. (For the case of "Module’s Detailed Information", refer to Section
7.1.1)
[Operating procedure]
[Diagnostics]
[System monitor] [Product Inf. List]
[Serial No, Ver, and Production No.]
• Serial No. of the module is displayed in the Serial No. column.
• Function version of the module is displayed in the Ver. column.
• Serial No. printed on the rating plate is displayed in the Production
No. column.
*1
Note that, because the QD51(-R24) does not support the production
No. display, "-" is displayed.
*1: The Production No. column display is active only when the CPU used is a Universal
model QCPU.
To Next Page
