4 ABOUT QD51 (-R24) FUNCTIONS
4.3.2 Printing from a printer connected to the console

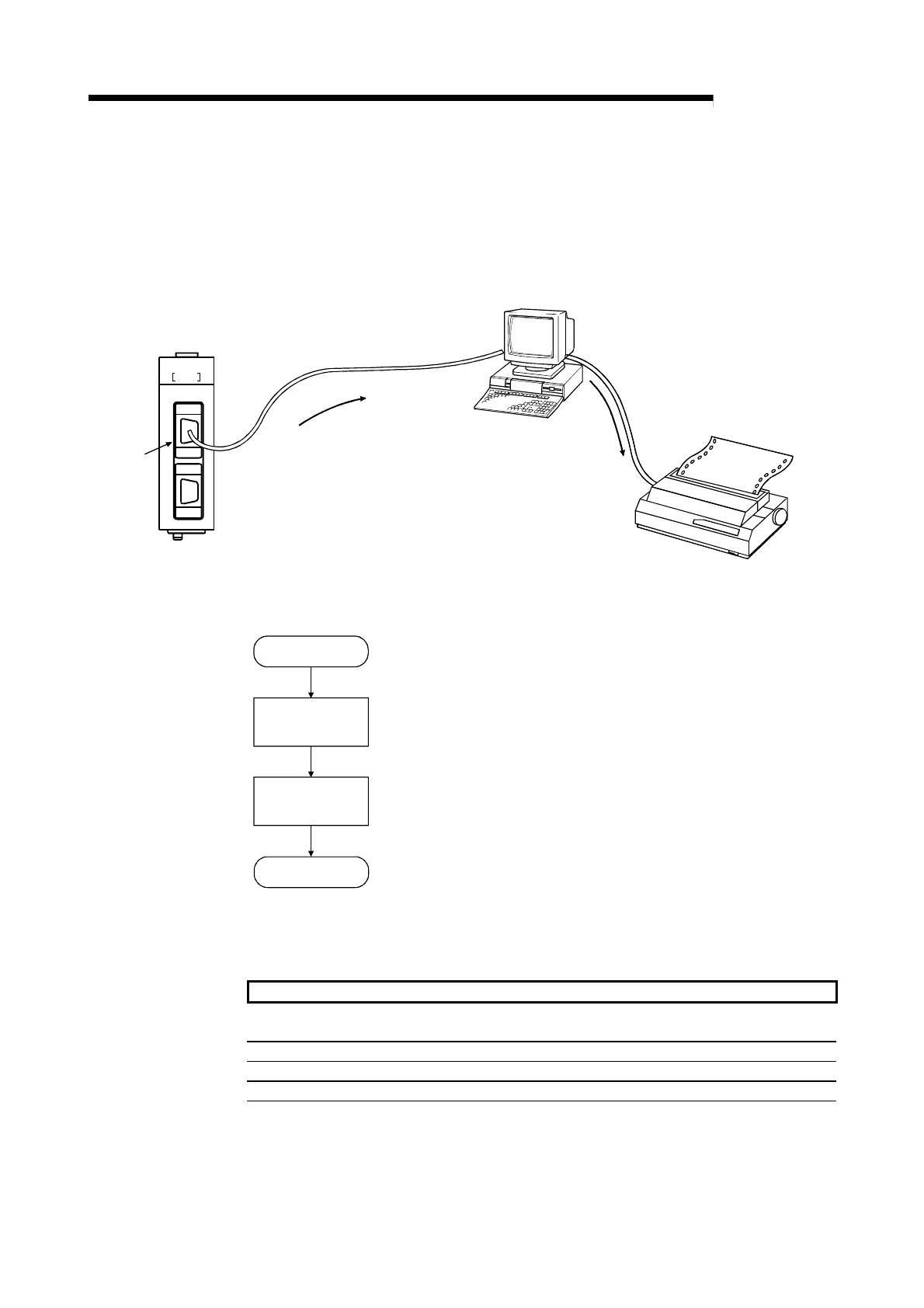

Here, the way of thinking in the case of printing out by a printer that is connected to a
PC/AT personal computer which is set as a console and connected to the interface is
explained.
QD51
CH.1
QD51
RUN ERR
CH.1
CH.2
CH.1
CH.2
QD51
RS-232
RS-232
PRG
SD
RD
P.RUN
SD
RD
Printer
Data output
Console
[in the case of a PC/AT personal computer]
Data output
[Printout procedure]
The procedure for printing out from a printer connected to the console is shown below.
Set the data output
destination.
Output the data to
the printer.
······ Sets the data output destination by the ZLDV command.
······ Outputs data to the printer by the LPRINT command, etc.
Start
End
[Commands and functions used]
The commands and functions used to print out by a printer connected to the console
are shown below.
Command, Function Name Processing Contents
ZLDV Switches the output destination to the printer connected to the
console.
LPRINT Outputs data to the designated printer.
LPRINT USING Outputs data to the designated printer. (The format can be specified.)
LLIST Outputs the program list to the designated printer.
To Next Page
