SET UP
• Be careful to connect the connector correctly.
• Pull and put the connector in straight.
● When paper is set, be careful not to injure your hand by the paper cutter.
IMPORTANT
◆ After setting the recording paper, be sure to press the ‘FEED’ key. This will
perform a self-alignment thereby reducing paper jamming.
◆ When you open the recording paper cover, the printer head is exposed.
Immediately after printing, the printer head is hot. Do not touch to avoid being
burned.
◆ DP-1VR recording paper has superior characteristic of conservation, tolerance
to chemicals and weather-proof. Please use the recording paper specified by
our company. (Part No. 09EAA082 10 roll pack)
◆ Print quality is not guaranteed if the specified recording paper is not used.
◆ Recording paper should be stored in a cool and dark place.
3. Connection of the measuring tool
Before connection, confirm that electric power to the digimatic measuring tool is OFF.
(1) Connection to the digimatic measuring tool.
Connect one connector of the connecting cable to DP-1VR input connector and the
other connector to the output connector of the digimatic measuring tool. Some con-
necting cables are different, depending on the type of measuring tool, please refer
to each user's manual.

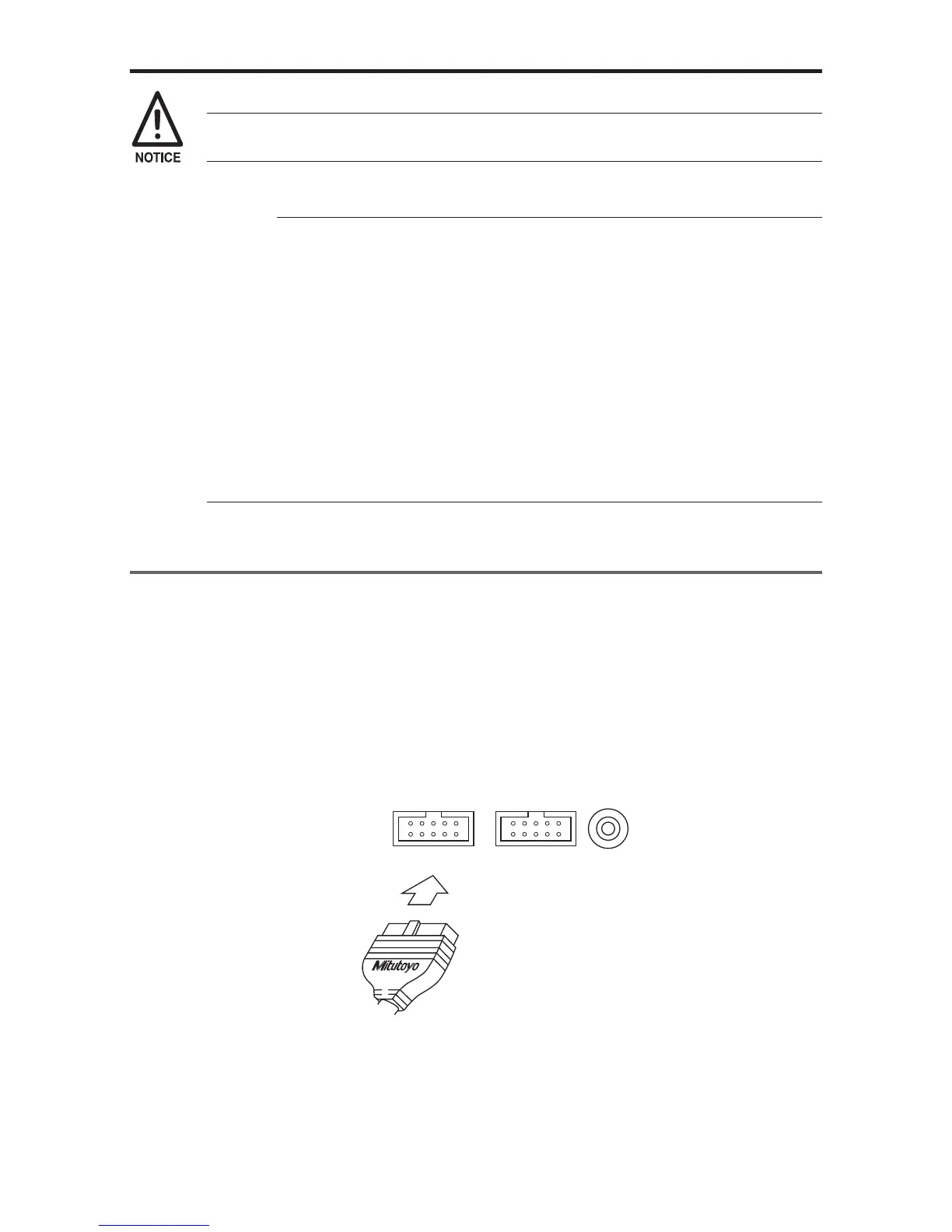

OUTPUTINPUT
Connection of the input connector
