- 9 -
SET UP

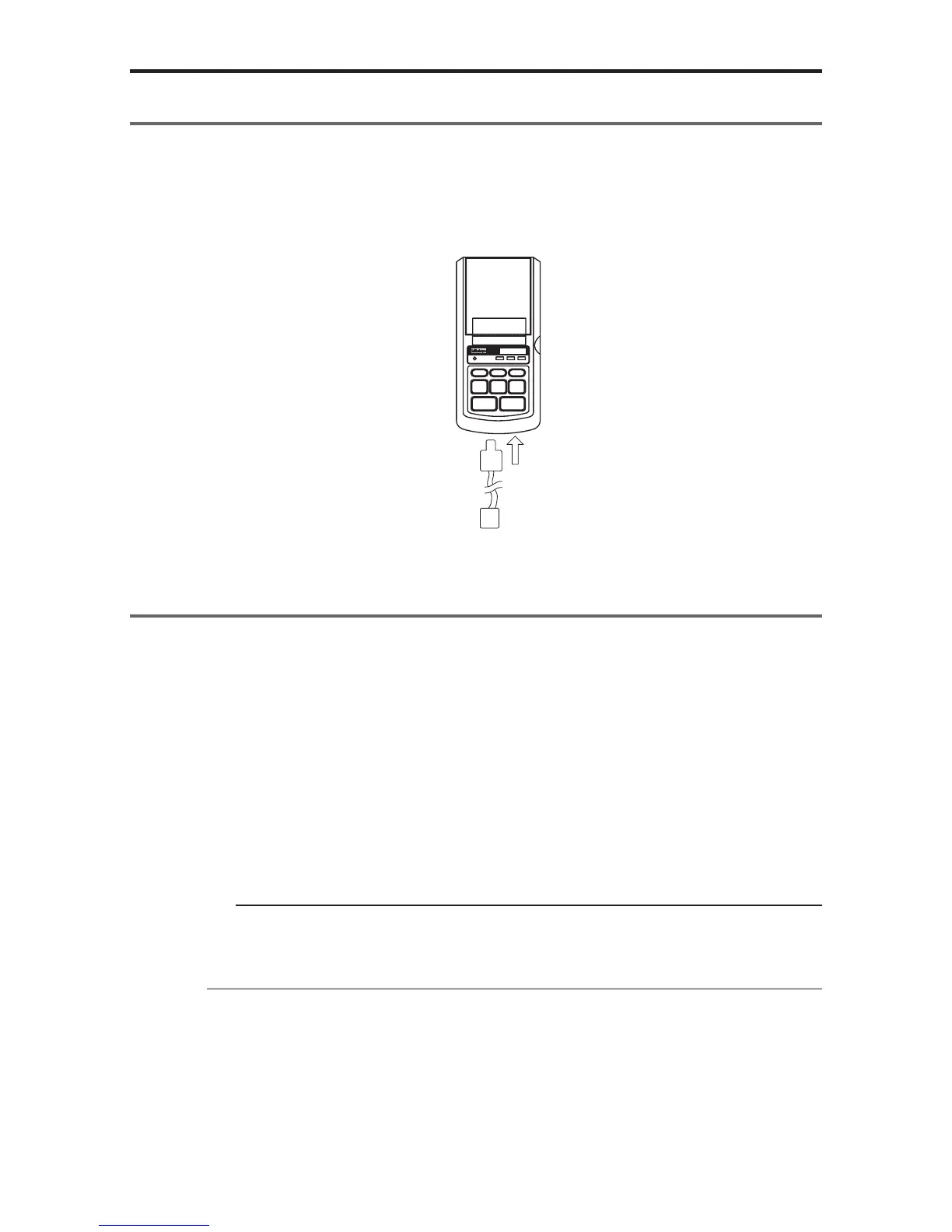

4.2 Footswitch
Data can be input by a foot switch.
Connect to a foot switch connector, part No. 937179T (optional accessory)
POWER
POWER
− NG
PRINTER CL
CESTAT
FEED DATA
TOL.
LIMIT
GO + NG
DIGIMATIC MINI-PROCESSOR
4.3 RS-232C Cable • GO ± NG judgement cable
q RS-232C cable (part No. 09EAA084)
RS-232C output can be obtained from DP-1VR and used for printing RS-232C,
output of a linear scale counter. Connect the RS-232C cable to the DP-1VR output
connector.
w GO±NG judgment cable (part No. 965516)
The results of a judgment can be obtained from the DP-1VR. Connect it to output
connector of the DP-1VR.
NOTICE
The RS-232C cable and GO±NG judgment cable can not be used simultaneously.
Be sure to connect / disconnect the cables only when the power is OFF.
