OUTPUT
10
By connecting the optional cable (NO. 965465) to the OUTPUT connector located at
the side of this unit, either GO/±NG judgment for the input data or measured data in
RS-232C format can be output through the OUTPUT connector.
1. Output of GO/
±
NG Judgment
When the optional GO/±NG judgment result output cable (NO. 965516) is connected
to this unit, and it is in MODE0, MODE1, or MODE2 with the upper and lower
tolerance limits set. These judgment results will be output though an open collector.

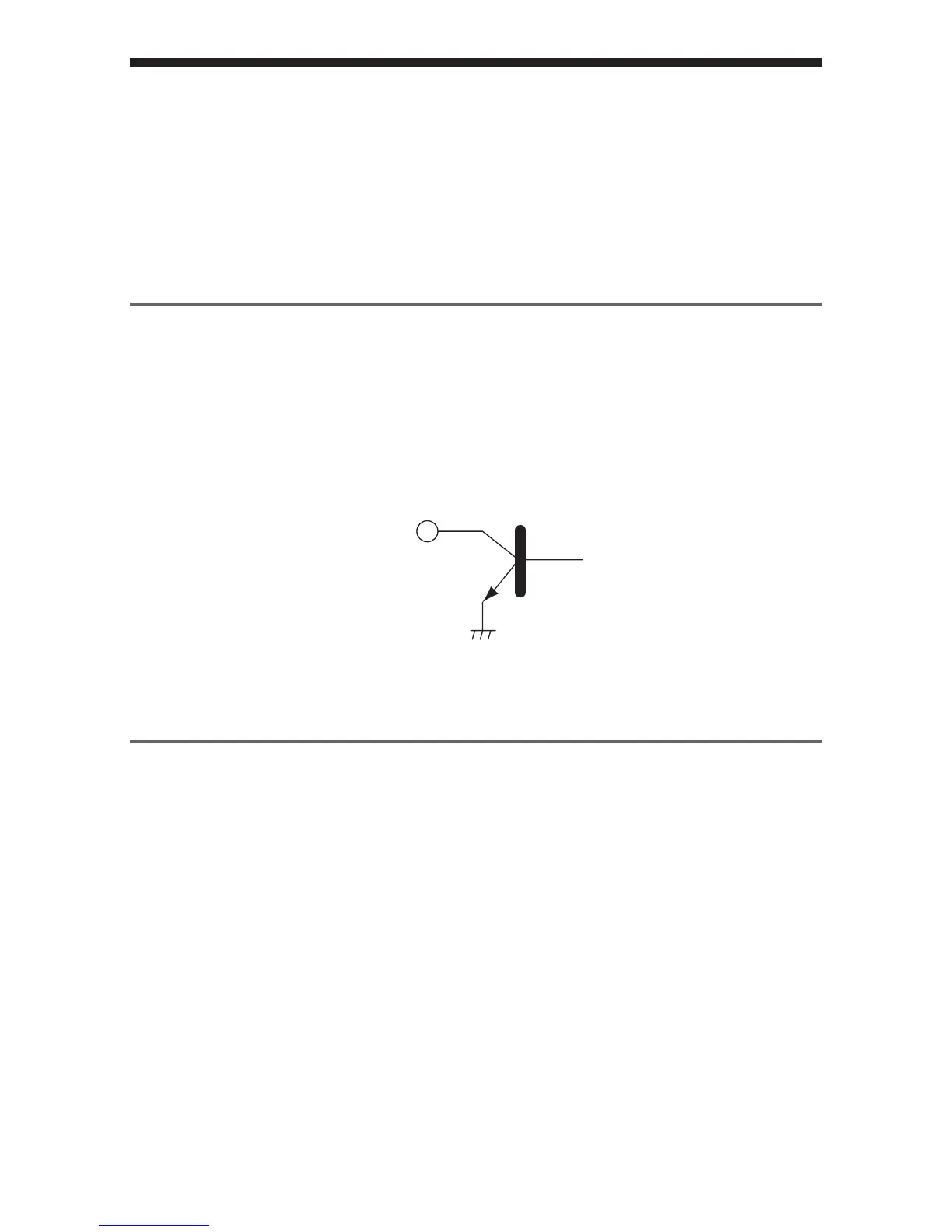

2SC4047 or equivalent
Vceo (max) = 50V
IC (max) = 100mA
2. Output in Accordance with RS-232C Format
The data entered in the DP-1VR will be output to an external device in RS-232C
format when: the 'DATA' key of this unit is pressed, timer signals are input, this unit
receives a data request command via the RS-232C, or when the foot switch or data
output key is pressed on the measuring unit. However, the results of the calculations
performed in this unit are not output to an external device. Use the RS-232C conver-
sion cable (Part No. 09EAA084) to output from this unit. Also use this cable to
receive output signals in RS-323C format from the Liner Scale Counter.
