CALCULATION METHOD
2. Overflow and calculation error
● Overflow and calculation error
Overflow conditions of DP-1VR and calculation error are shown below:
Overflow of DP-1VR is different due to mean value and amount of data.
This is shown in the graph overflow condition.
● Viewpoint of graph
If mean value 10 m is measured with 2 figures after the decimal point (by caliper
etc.), how much of data can be measured, is checked.
q Data 10000.00 is changed to 1000000 as no decimal point.
w Vertical axis 1000000 on graph is extended to the horizontal direction and
compared to the horizontal axis.
e 2000 is obtained as the number of the data.
r When the data of the mean value 10 m is measured about 2000, it is recog-
nized that the overflow happens.

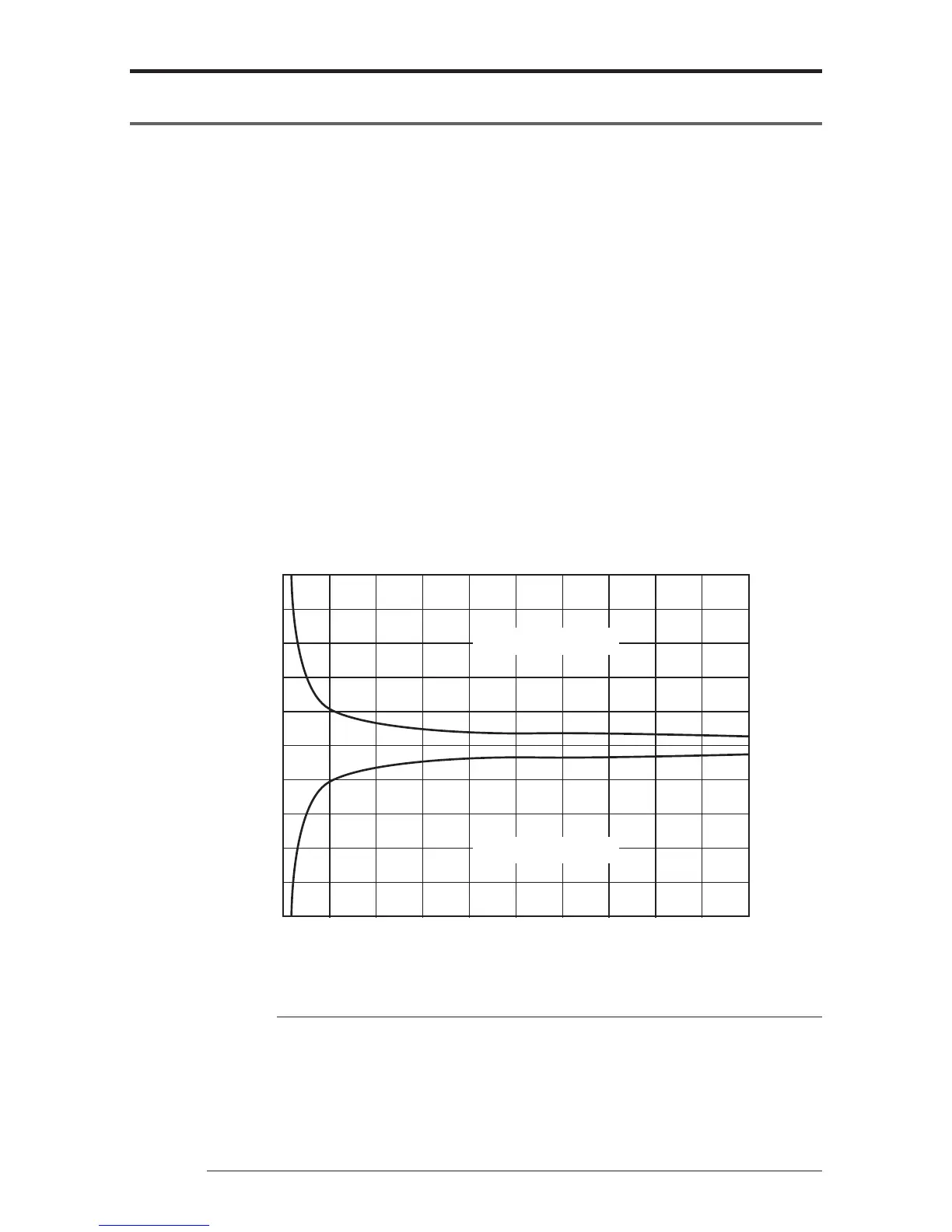

Condition of overflow
IMPORTANT
◆ Overflow seldom happens in usual measurement by calipers or micrometers
etc.
◆ When this unit is used for printing of a linear scale counter, overflow may
happen. Be careful when referring to a graph of this condition that overflow
may happen.
0
-10000000
-8000000
-6000000
-4000000
-2000000
0
2000000
4000000
6000000
8000000
10000000
1000 2000 3000 4000 5000 6000 7000 8000 9000 10000
Overflow region
Overflow region
Data mean value
Data Count
