Moons' SS-EC Series User Manual

24
Rev. 1.0
2016/7/30
SS03/05/10-EC Hardware Manual
+86-400-820-9661
2.9 Connecting the EtherCAT
Dual RJ-45 connectors (connection CN3) accept standard Ethernet cables and are categorized
as 100BASE-TX (100 Mb/sec) ports. CAT5 or CAT5e (or higher) cables should be used. The IN
port connects to a master, or to the OUT port of an upstream node. The OUT port connects to a
downstream node. If the drive is the last node on a network, only the IN port is used. No terminator
is required on the OUT port.

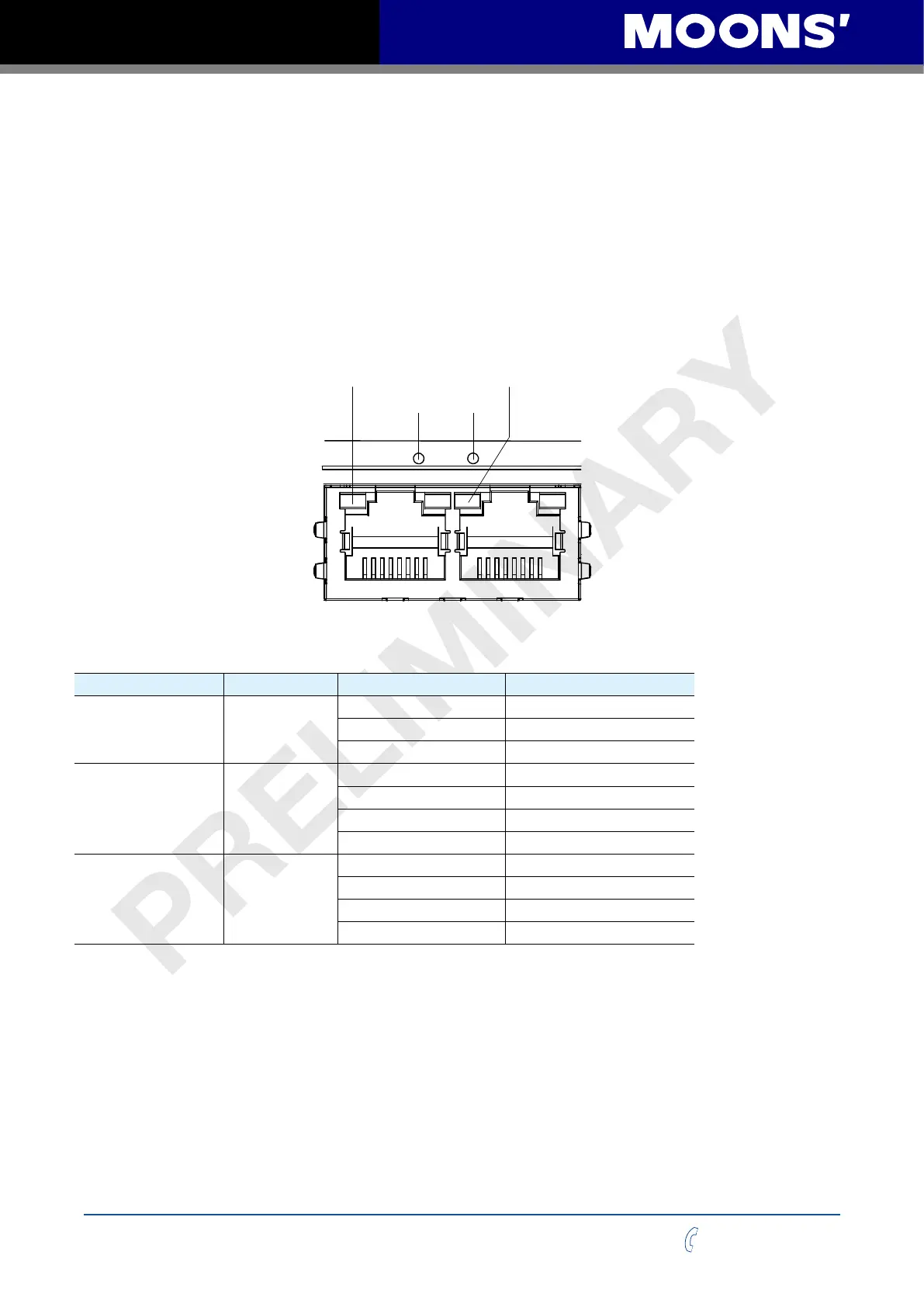

2.9.1 EtherCAT Status Indicator LEDs
The LEDs are used for indicating status of the EtherCAT. There are two Link/Activity LEDs (one for
each RJ-45 Ethernet connector) and two status LEDs (RUN and ERR).
ERR
Link/Activity Link/Activity
RUN
LED indicator codes:
LED Color Status Description
Link/Activity Green
OFF no Ethernet connection
ON Ethernet is connected
Flickering activity on line
RUN Green
OFF initialization state
Blinking pre-operational state
Single Flash safe-operational state
ON operational state
ERR Red
OFF no error
Blinking general error
Single Flash sync error
Double Flash watch dog error
Notes:
• Flickering: Rapid ashing with a period of approximately 50ms (10Hz)
• Blinking: Flashing with equal on and o󰀨 periods of 200ms (2.5Hz)
• Single Flash: Repeating on for 200ms and o󰀨 for 1s
• Double Flash: Two ashes with a period of 200ms followed by o󰀨 for 1s
