Moons' SS-EC Series User Manual

31
Rev. 1.0
2016/7/30
+86-400-820-9661
SS03/05/10-EC Hardware Manual
3.3 Analog Inputs
The SS series drive has two analog signal inputs which can accept signal range of 0-5V, 0-10V,
±5V or ±10V. The drive can be congured to operate at velocity mode or position mode that is
proportional to the analog input.
Use Step-ServoQuickTuner software to congure the input range, o󰀨set, deadband and noise
lter frequency.
The SS series provides a +5V, 100mA limit power supply that can be used to power external
devices such as potentiometer. For more precise readings use an external supply that can provide
the desired accuracy.
Ω
+5v OUT
AIN
GND
1 - 10k
pot
SS-EC
Drive

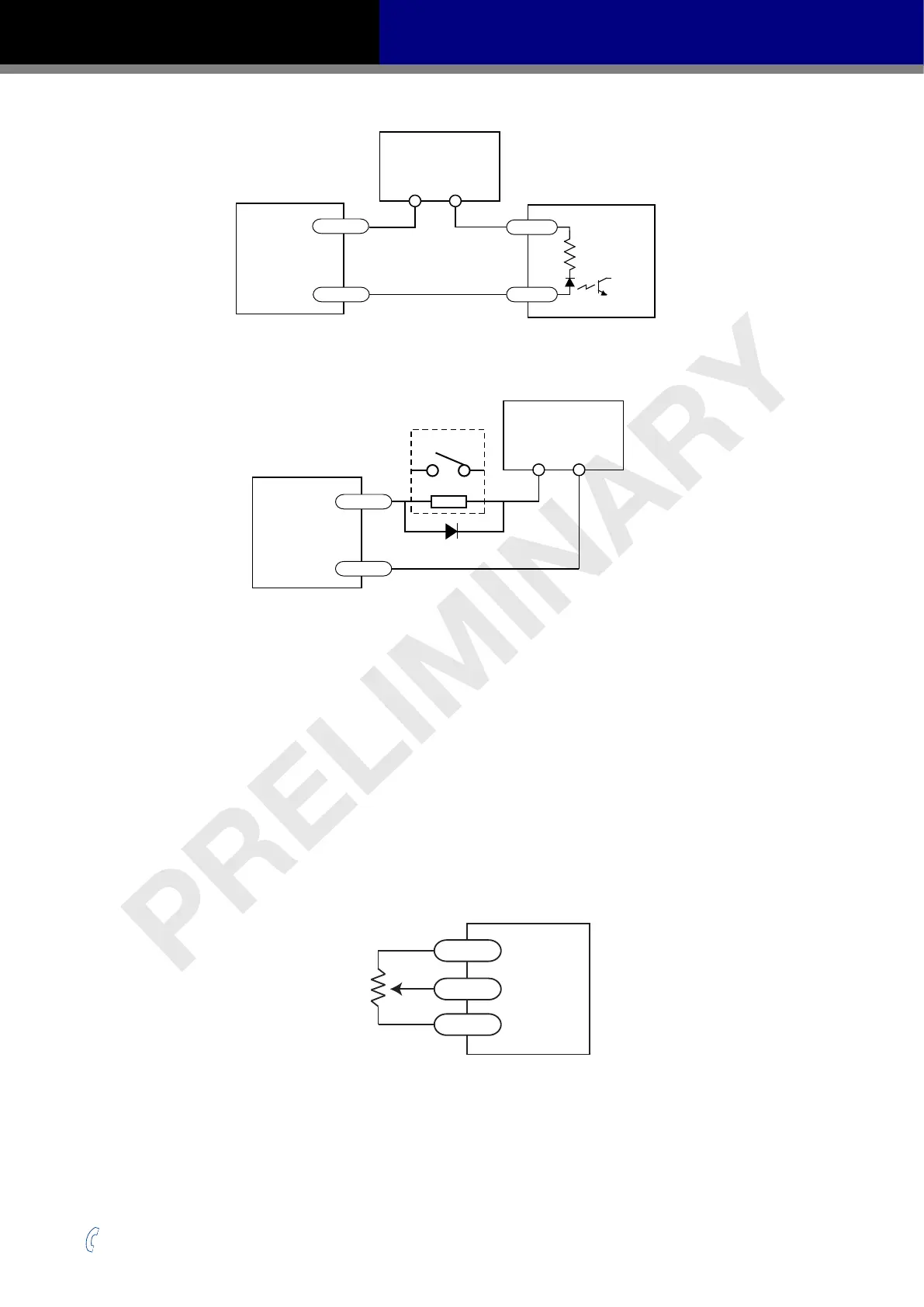

Connecting a Potentiometer to an analog input
Connecting a sinking output
Connecting a sinking output to a PLC’s input
Connecting a sourcing output to a PLC’s input
Driving a relay
SS-EC
Drive
5-24 VDC
Power Supply
+ –
Load
Y1/2/3/4-
Y1/2/3/4-
Y1/2/3/4-
Y1/2/3/4-
Y1/2/3/4+
Y1/2/3/4+
Y1/2/3/4+
Y1/2/3/4+
CDV 42-5
+ –
IN
COM
SS-EC
Drive
PLC
5-24 VDC
Power Supply
+
–
COM
IN
SS-EC
Drive
SS-EC
Drive
1N4935 suppression diode
5-24 VDC
Power Supply
+ –
relay
Power Supply
PLC
