SS03/05/10-EC Hardware Manual
+86-400-820-9661

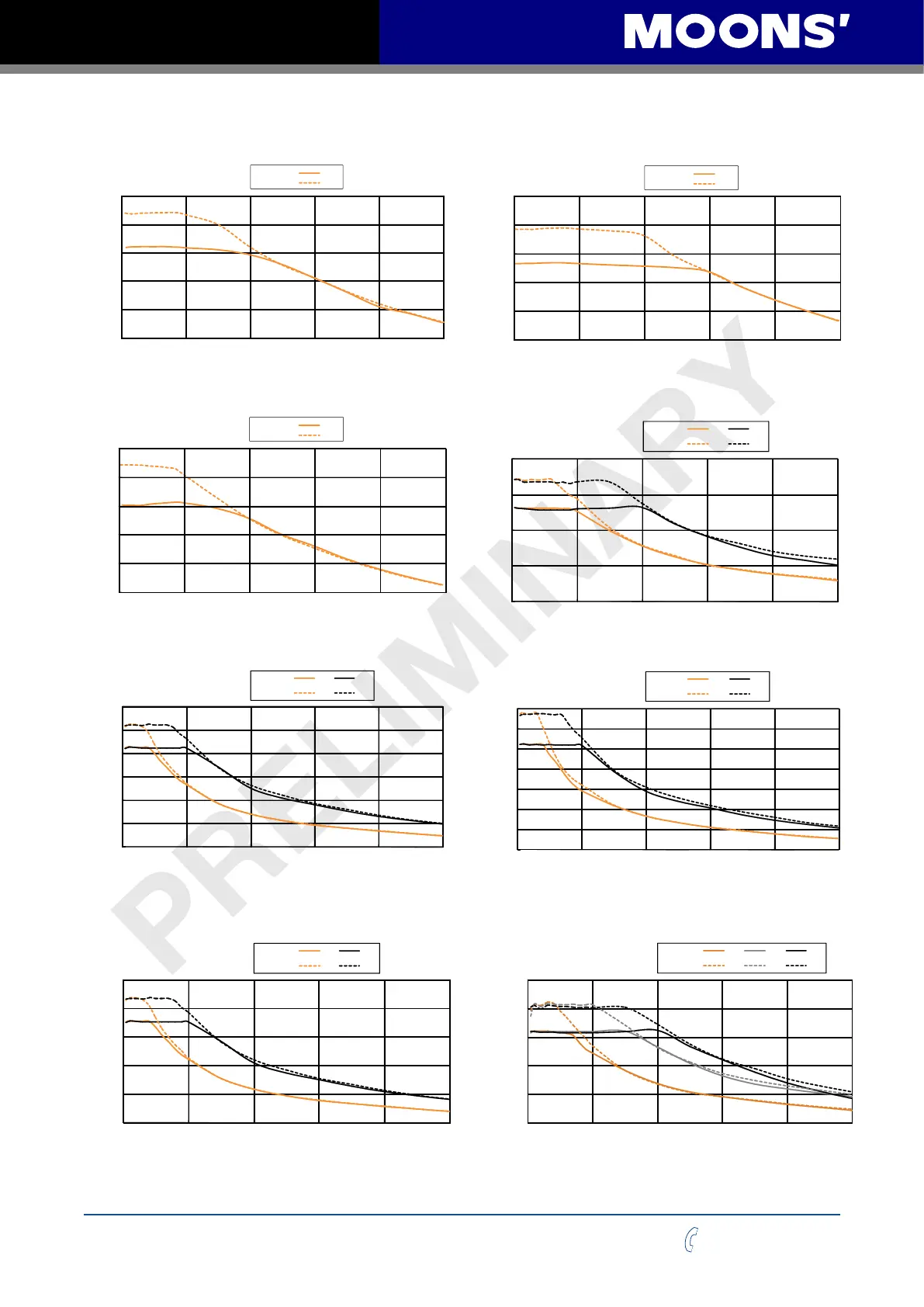

5.5 Torque Curves
0
20
40
60
80
100
0 10 20 30 40 50
AM11SS1DMA
24V
24V
Continuous
Boost
Torque(mN·m)
Speed(rps)
0
30
60
90
120
150
0 10 20 30 40 50
AM11SS2DMA
24V
24V
Continuous
Boost
Torque(mN·m)
Speed(rps)
0
40
80
120
160
200
0 10 20 30 40 50
AM11SS3DMA
24V
24V
Continuous
Boost
Torque(mN·m)
Speed(rps)
0
0.1
0.2
0.3
0.4
0 10 20 30 40 50
AM17SS1DG□-N
24V 48V
24V 48V
Continuous
Boost
Torque(N·m)
Speed(rps)
0
0.1
0.2
0.3
0.4
0.5
0.6
0 10 20 30 40 50
AM17SS2DG□-N
24V 48V
24V 48V
Continuous
Boost
Torque(N·m)
Speed(rps)
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0 10 20 30 40 50
AM17SS3DG□-N
24V 48V
24V 48V
Continuous
Boost
Torque(N·m)
Speed(rps)
0
0.2
0.4
0.6
0.8
1.0
0 10 20 30 40 50
AM17SS4DG□-N
24V 48V
24V 48V
Continuous
Boost
Torque(N·m)
Speed(rps)
0
0.3
0.6
0.9
1.2
1.5
0 10 20 30 40 50
24V 48V 70V
24V 48V 70V
AM23SS2DG□-N
Continuous
Boost
Torque(N·m)
Speed(rps)
