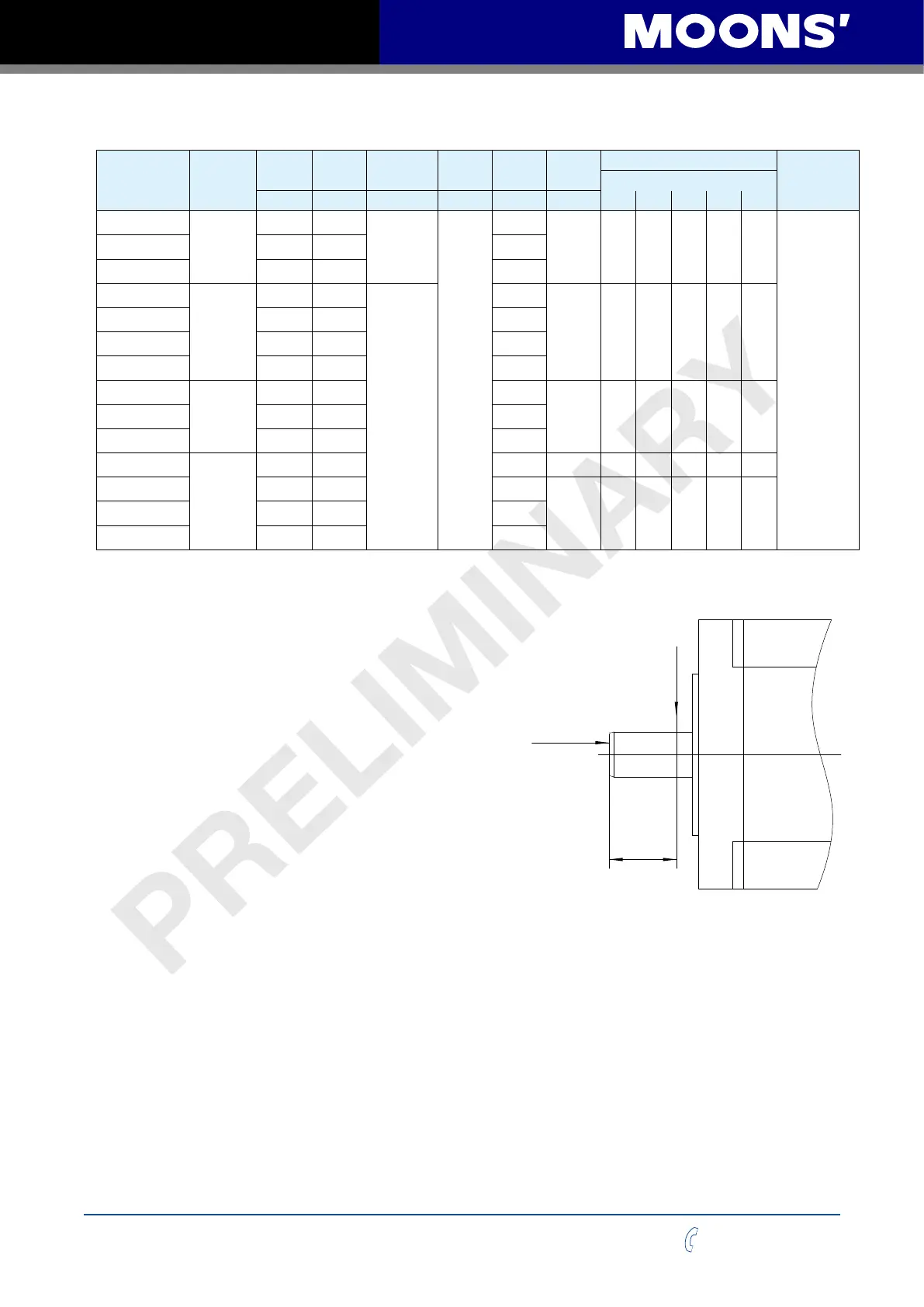

5.3 Recommended Motors and Specications
Motor Part
Number
Matching
Drive
Holding
Torque
Rotor
Inertia
Encoder
Resolution
Max.
Speed
Mass
Frame
Size
Permissible Shaft Load (N)
Permissible
Thrust Load
Distance (L) from shaft end (mm)
N-m G-cm
2
counts/rev RPM g mm 0 5 10 15 20
AM11SS1DMA
SS03-EC-D
0.065 9
4096
3600
118
28 20 25 34 52 -
Less than the
motor mass
AM11SS2DMA 0.08 12 168
AM11SS3DMA 0.125 18 218
AM17SS1DG□-N
SS03-EC-D
or
SS05-EC-D
0.3 38
20000
390
42 35 44 58 85 -
AM17SS2DG□-N 0.5 57 440
AM17SS3DG□-N 0.6 82 520
AM17SS4DG□-N 0.75 123 760
AM23SS2DG□-N
SS05-EC-D
0.9 260 850
56 63 75 95 130 190AM23SS3DG□-N 1.5 460 1250
AM23SS4DGA-N 2.5 365 840
AM24SS3DG□-N
SS10-EC-D
2.5 900 1650 60 90 100 130 180 270
AM34SS1DGA-N 3.5 915 2000
86 260 290 340 390 480AM34SS3DGA-N 6.0 1480 3100
AM34SS5DGA-N 8.0 2200 4200
□: A or B, refer to motor part numbering system
