Moons' SS-EC Series User Manual

32
Rev. 1.0
2016/7/30
SS03/05/10-EC Hardware Manual
+86-400-820-9661

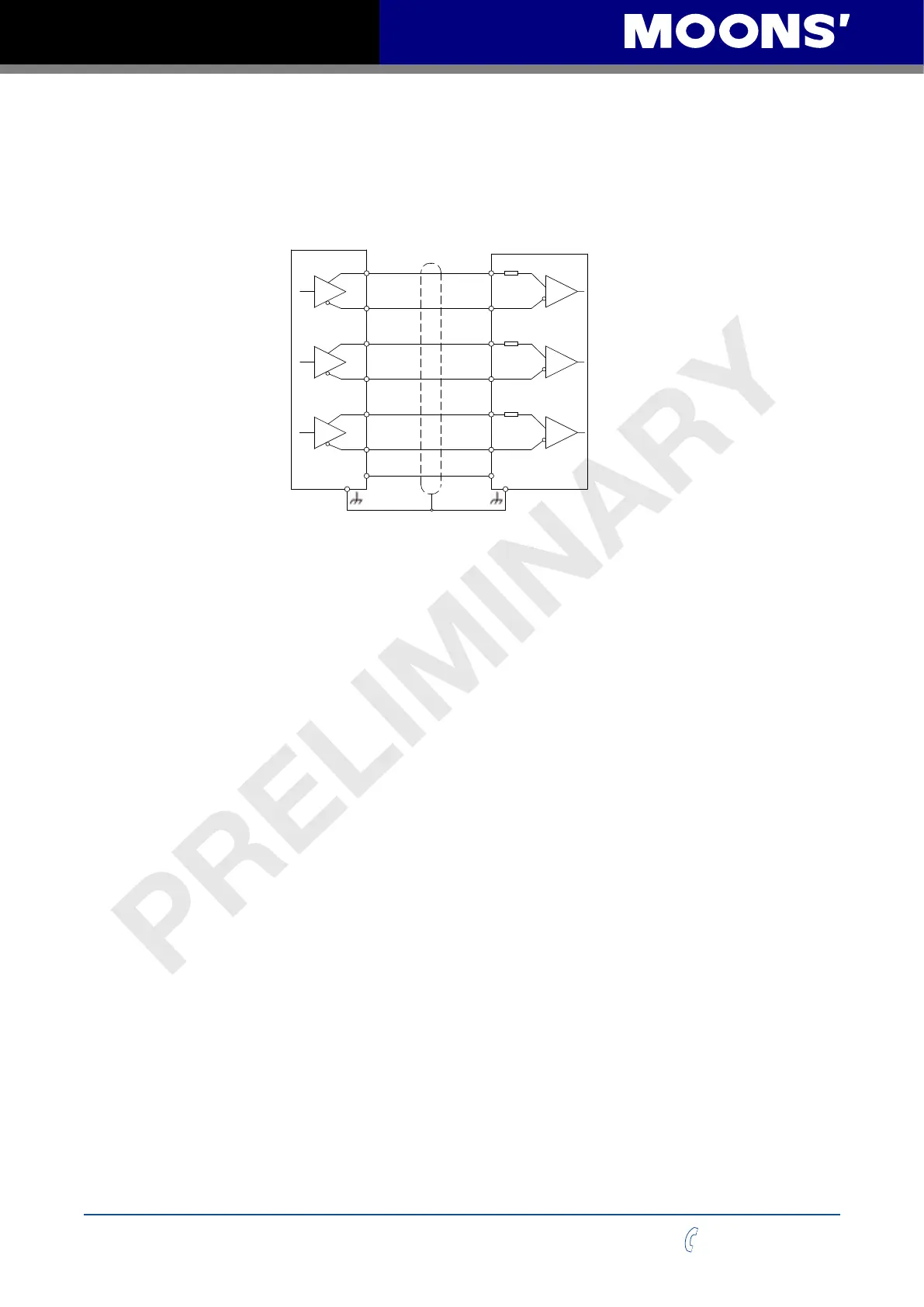

3.4 Encoder output
The SS-EC drive has di󰀨erential encoder outputs (AOUT+, AOUT-, BOUT+, BOUT-, ZOUT+,
ZOUT-), with 26C31 line driver, 20 mA sink or source current max. These signals can be connected
to the motion controller to provide feedback of the motor position.
Host Controller
A+
SS-EC
A-
B+
B-
Z+
Z-
AOUT+
AOUT-
BOUT+
BOUT-
ZOUT+
ZOUT-
GND GND
