SS03/05/10-EC Hardware Manual
◇

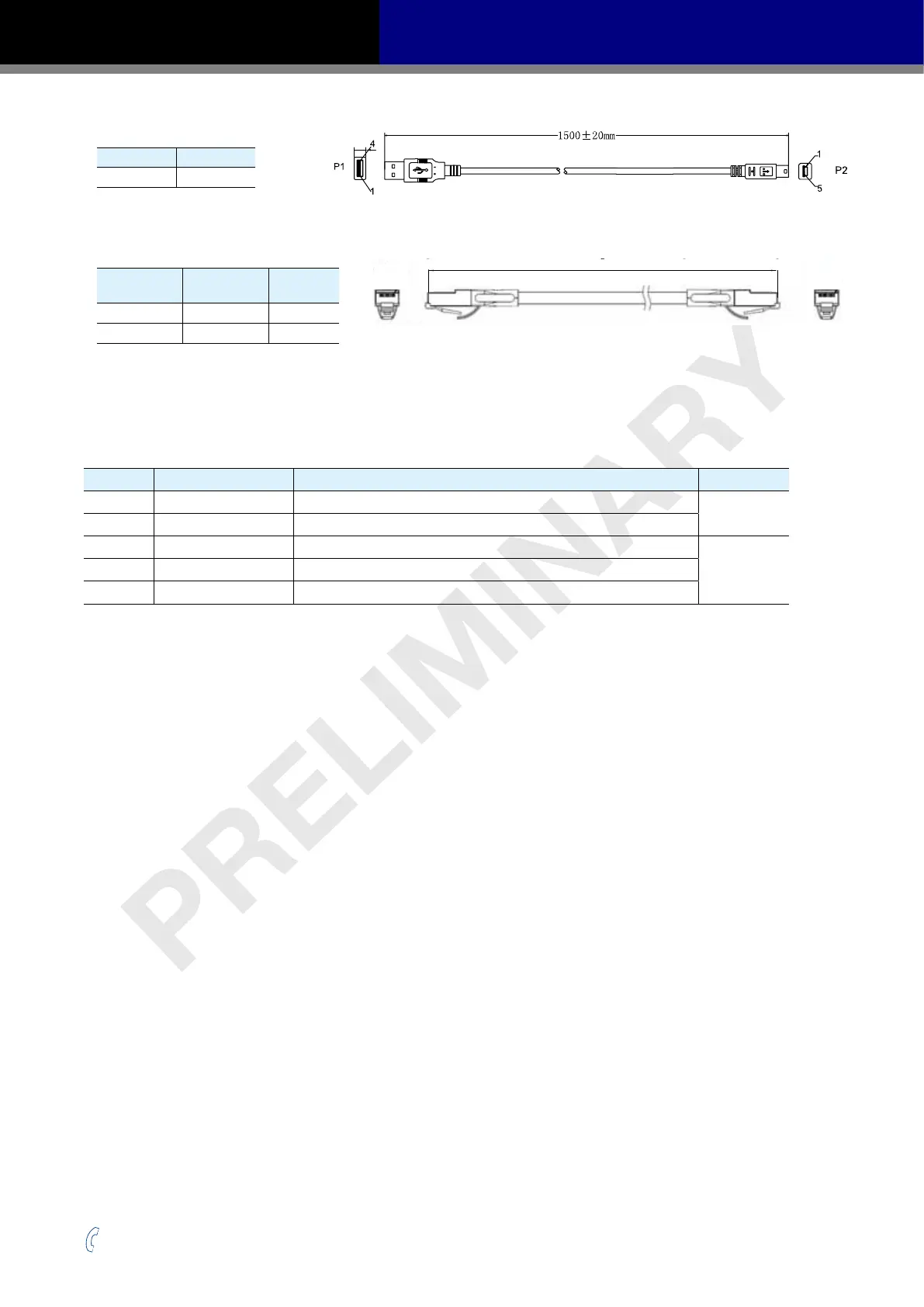

◇ USB Cable
P/N Length(L)
2620-150 1.5M
◇
◇ Network Cable
Common
Type
Shielded
Type
Length(L)
2012-030* 2013-030 0.3M
2012-300 2013-300 3M
* 2012-030 is included in the drive package.
6.2 Mating Connectors
Part Description Part Number Vendor
P1 Power Connector 5435970
Phoenix
Contact
P2 Motor Connector 5435983
CN1 Encoder Connector Housing: 501646-1600 Crimp Terminal: 501648-1000
MolexCN4 STO Connector Housing: 43025-1000 Crimp Terminal: 43030-0005
CN5 I/O Connector Housing: 501646-3200 Crimp Terminal: 501648-1000
L
L
8 1
8 1
