SS03/05/10-EC Hardware Manual

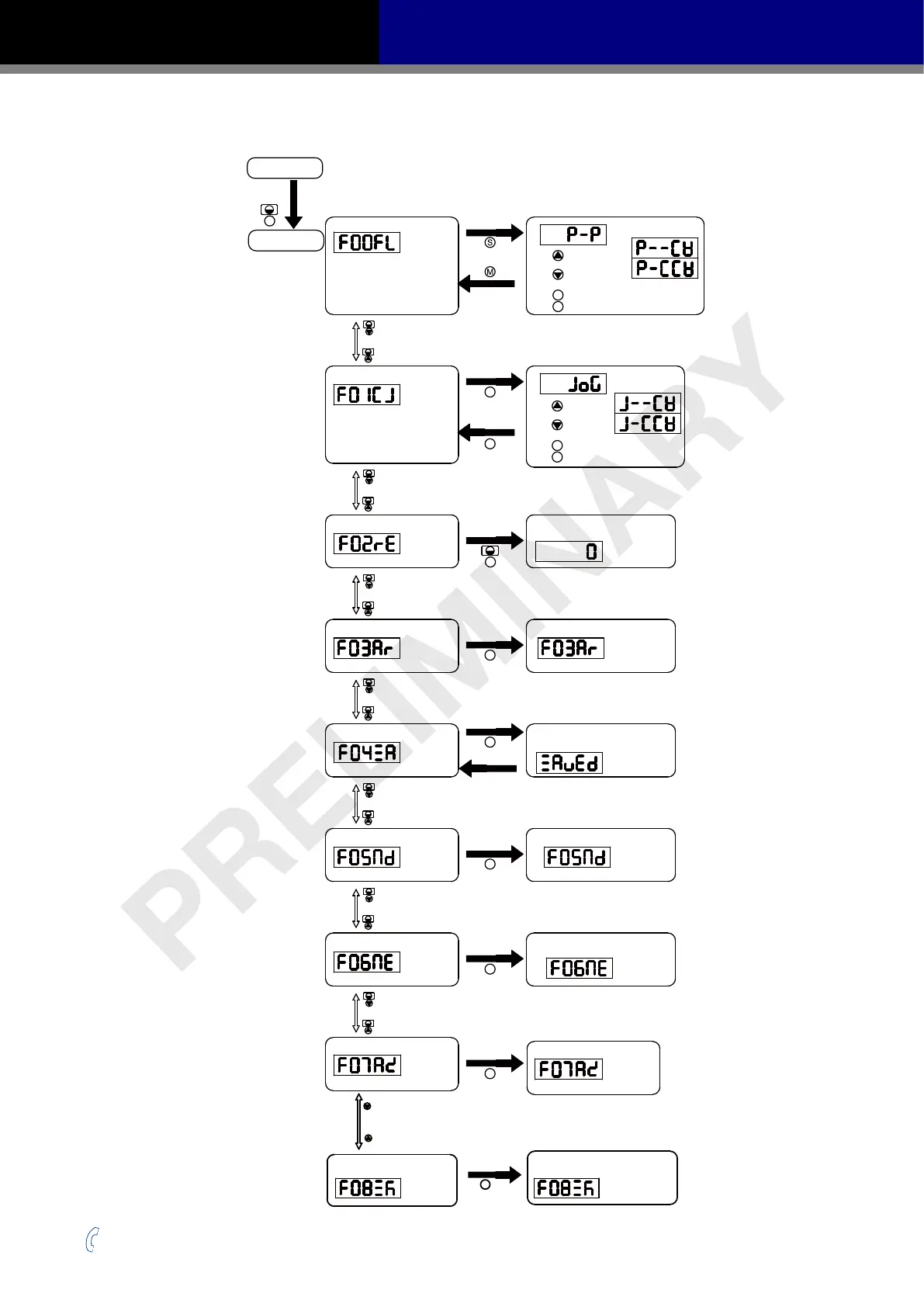

4.5.2 Operation Flow Chart
function selection
mode
Press UP and DOWN key
to select display detail.
Press UP and DOWN key
to select display detail.
Press UP and DOWN key
to select display detail.
Press UP and DOWN key
to select display detail.
Press UP and DOWN key
to select display detail.
Press UP and DOWN key
to select display detail.
Press UP and DOWN key
to select display detail.
Press UP and DOWN key
to select display detail.
press and hold
SET key
press and hold
SET key
press M key
press and hold
SET key
press and hold
SET key
press and hold
SET key
display after
1 second
press and hold
SET key
press and hold
SET key
press SET key
press SET key
press ,motor rotate
1 rev in CW direction
press ,motor rotate
1 rev in CCW direction
press to stop the motor
press to return back
status monitoring
selection
M
press and hold MODE key
for 1 second
F-00 point to point mode
S
press M key
M
S
M
F-01 JOG mode
S
M
F-02 Restart the drive
S
Drive restart, and back to status
monitoring mode
F-03 Alarm clear
S
clear current drive warning
F-04 save parameter
S
To save parameter changes for P-00
to P-98 permanently.
F-05 motor disable
S
To disable the drive
F-06 motor enable
S
If no alarm has occurred, enable the
drive immediately
SAVE means
success operation.
NOTE: In P-P mode, rotary velocity is 1rps,
and 1 rev per time.
NOTE: In JOG mode, rotary velocity is
1rps
press ,motor rotate
in CW direction
Press ,motor rotate
in CCW direction
press stop motor
press to return back
F-07 Analog Input Auto-offset
S
F-08 Stop move and remove
buffered command
S
Stop move and remove buffered
command
Analog Input Auto-offset
