Moons' SS-EC Series User Manual

26
Rev. 1.0
2016/7/30
SS03/05/10-EC Hardware Manual
+86-400-820-9661
2.10.4 STO Signal Denition
Signal Symbol Pin Description Control Mode
Safety Input SF1
SF1+ 1
When SF1 has no input signal, e.g.
the port is disconnected, SF1 will be
considered OFF. The upper half of the
internal power transistor will be shut o󰀨.
Compatible with all
control modes
SF1- 2
Safety Input SF2
SF2+ 3
When SF2 has no signal input, e.g.
the port is disconnected, SF2 will be
considered OFF. The upper half of the
internal power transistor will be shut o󰀨.
SF2- 5
Safety Output
EDM+ 6
Output monitor signal used to check the
safety function
EDM- 4
Ground DGND 7, 8 +5VDC power ground
+5V power +5V 9, 10 +5VDC power supply

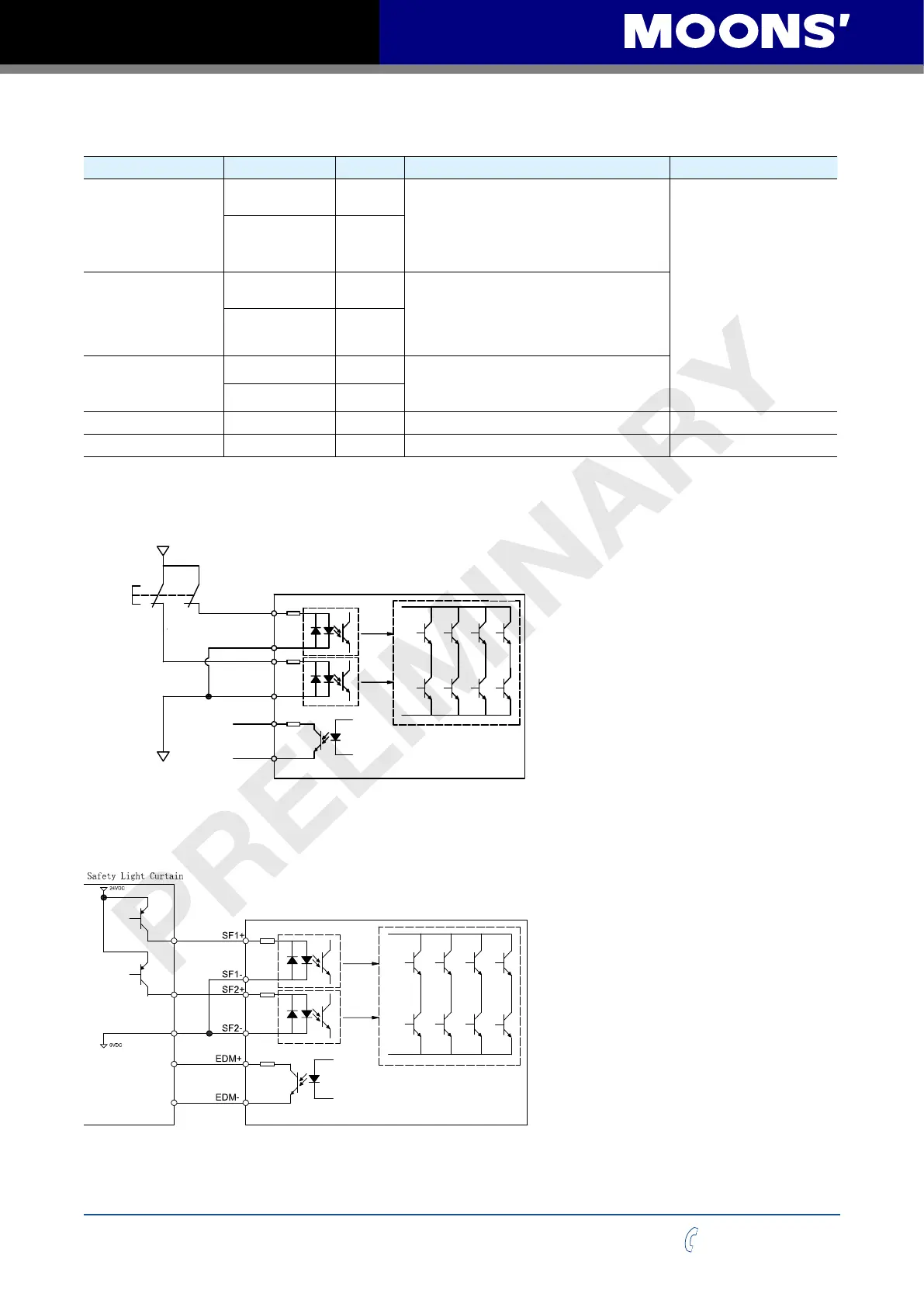

2.10.5 STO Connection Diagrams
Connection to safety switch
Safety Switch
SS EtherCAT Drive
Safety Input 1
Safety Input 2
Safety Output
24VDC
0VDC
SF1+
SF1-
SF2+
SF2-
EDM+
EDM-
Safety light connection
SS EtherCAT Drive
Safety Output
