Installation B
High-Definition DVR DCX3510-M • Installation Manual 12
365-095-17066-x.1
Rear Panel

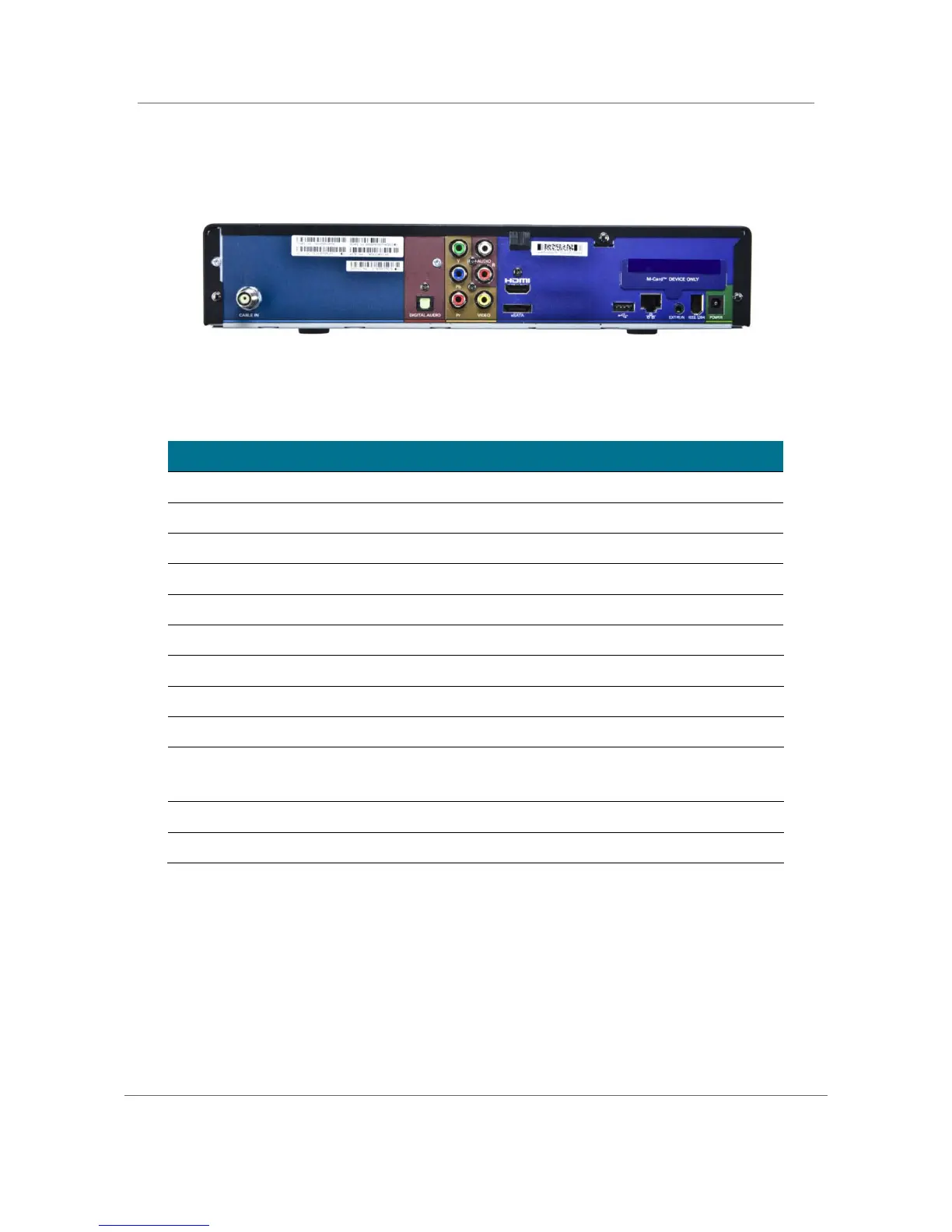

Figure 3: Rear Panel
Number Description
1 Cable In — Connects to cable signal from your service provider
2 Digital Audio (Optical S/PDIF) — Provides Dolby
®
Digital or PCM output
3 Video outputs / YPbPr — Component video output (HDTV)
4 Audio Out — L/R audio
5
HDMI — High-Definition TV (HDTV) connector
6 Video Out — Composite Video (SDTV)
7 eSATA* — External Serial Advanced Technology Attachment disk interface
8 USB* 2.0 — High-Speed peripheral device connection
9 Ethernet* — Network connection
10 External IR Input — Connects to a remote control set-top accessory cable
Data test connector (service personnel only)
11 IEEE-1394 — Audio and video device connection
12
Power connector
* Availability of certain features is dependent upon application support.
M-Card™
The M-Card is required to view cable television programs, previously recorded programs
on the DVR, or interactive on-demand programs. The M-Card should not be removed.
