Table 17: RF Upstream Modem Diagnostic Field Descriptions
Field Description
Status
CONFIGURED or NOT CONFIGURED.
Center
Frequency
The RF modem center frequency is displayed on the OSD and front panel in MHz.
Requested
Power
Level
The value in dB assigned to the DCX3510-M during RF leveling (which is blank if it is not
configured).
Actual
Power
Level
The power level is displayed in dB on the OSD and front panel or is blank if the power level
has not been set.
Report
Back
Address
Displayed in 4-byte hexadecimal format, if configured.
Code Modules
This diagnostic includes information about the firmware loaded in flash memory and all
non-volatile code versions that are installed on the DCX3510-M. When the native suite is
running, the diagnostics of the application operating system and all associated objects
should be accessible.

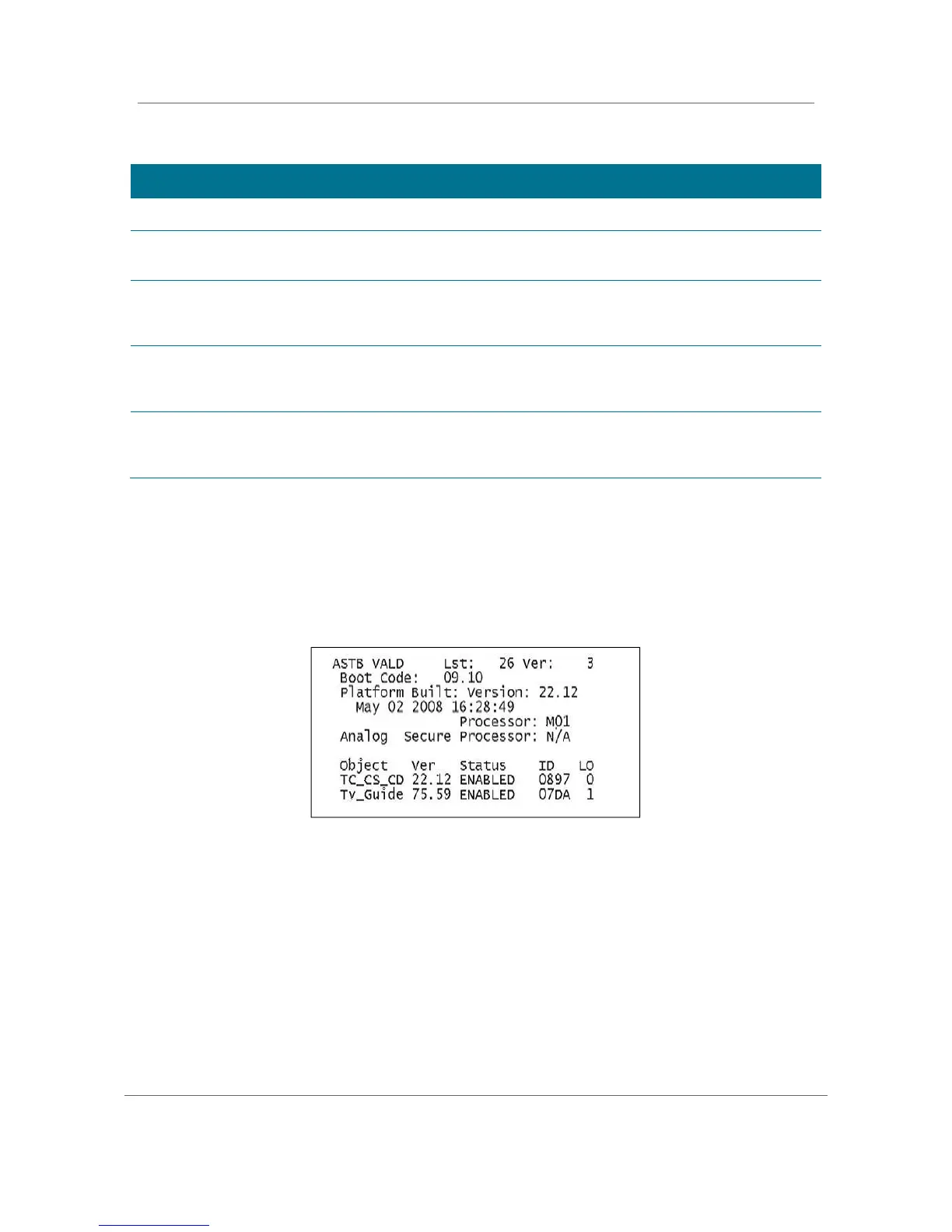

Figure 36: Code Modules Diagnostic Screen
