Installation B
High-Definition DVR DCX3510-M • Installation Manual 19
365-095-17066-x.1

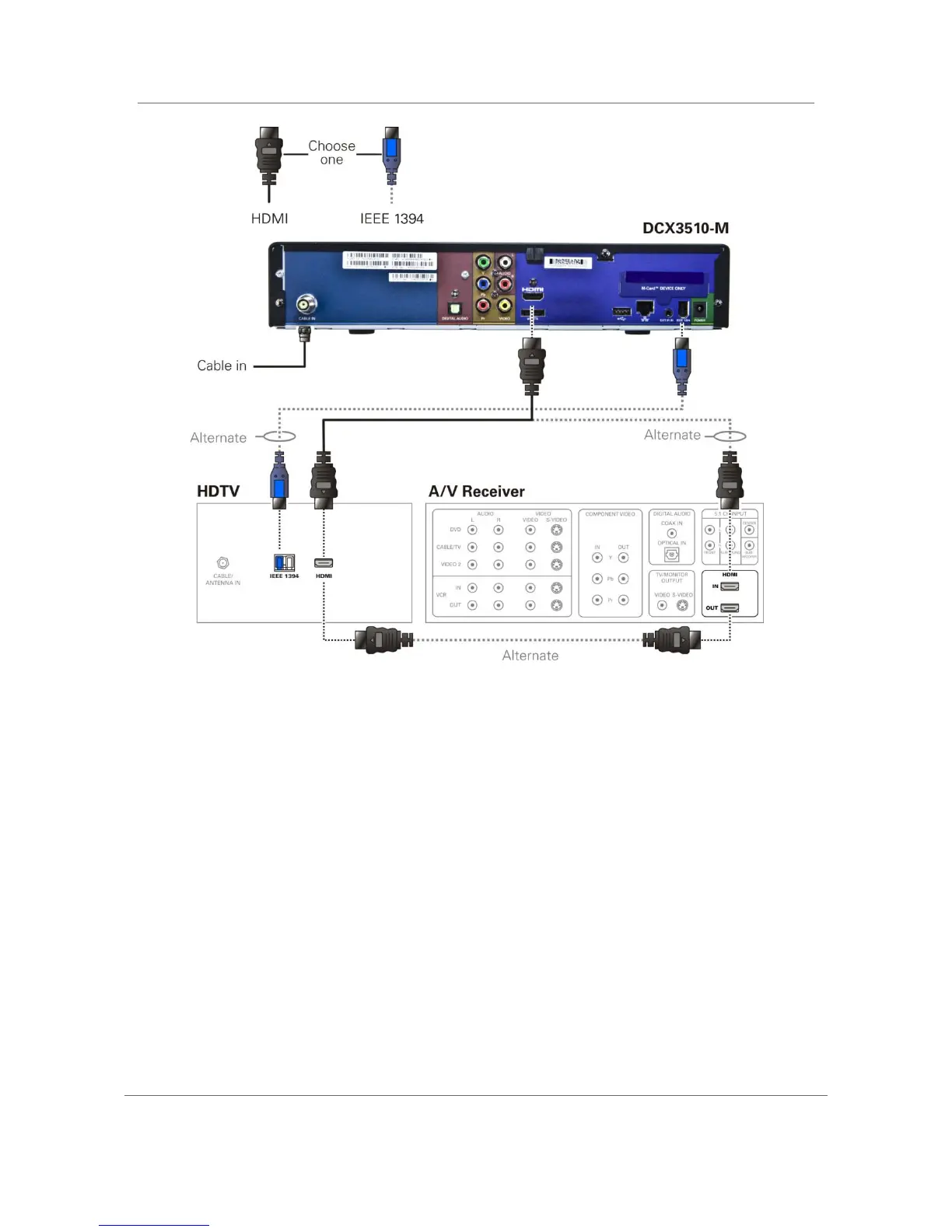

Figure 4: Connecting an HDTV — Single Connection for Video/Audio
Note: Only (1) HDTV video/audio connection needs to be made to an HDTV.
Note: On-screen graphics will not be displayed when using IEEE-1394 connection. Refer
to Graphics Overlaying the Video for more information.
Note: Solid lines indicate optimum connections.
Note: Optional HDMI connection to A/V Receiver shown but not required.
