Diagnostics B
High-Definition DVR DCX3510-M • Installation Manual 52
365-095-17066-x.1

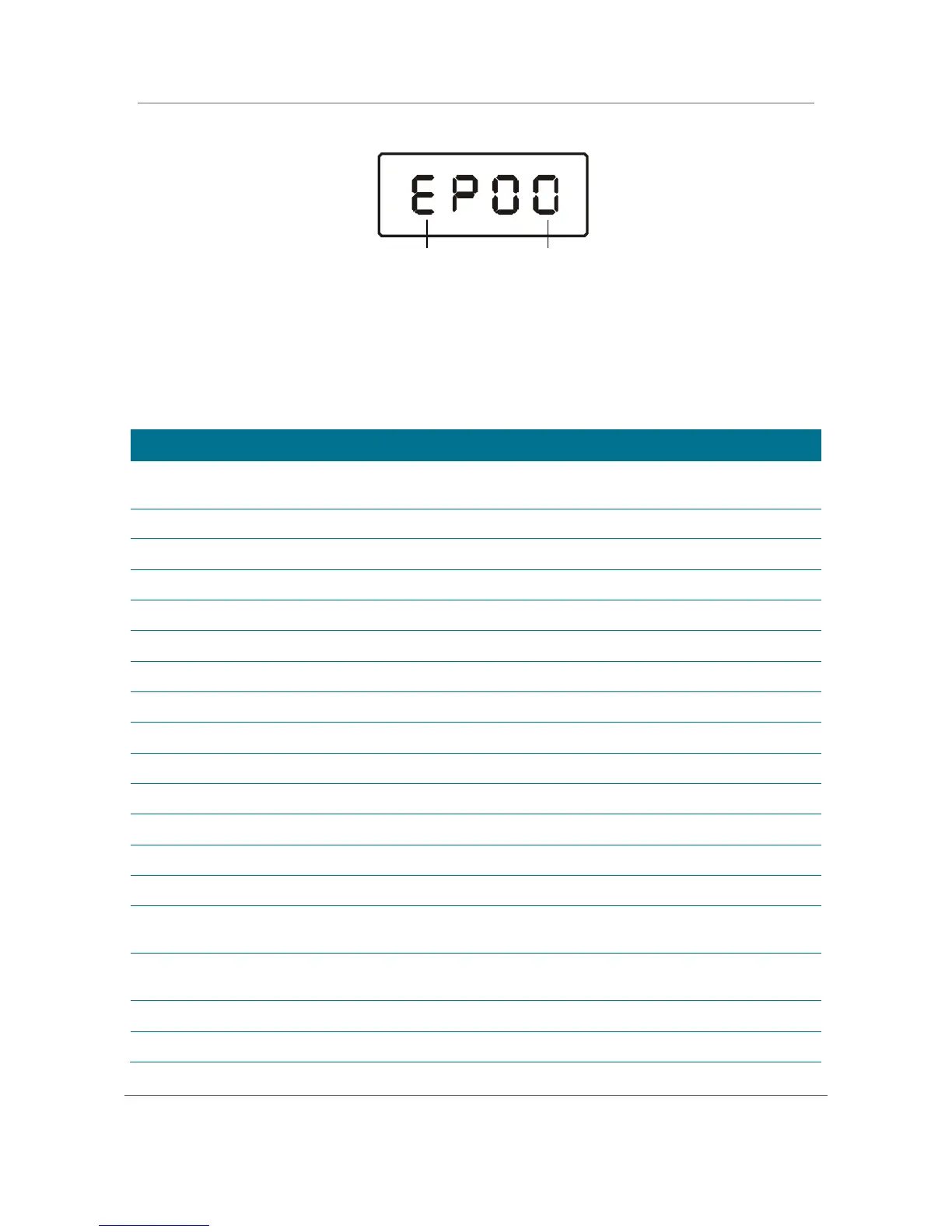

Figure 22: Example General Status display (no error)
Table 10: General Status Diagnostic Field Descriptions
Field Description
Error
Error codes display on the LED and OSD when an error occurs. If multiple errors
occur, the last recorded error is displayed:
Error Code Description
EP00 No error
EP01
Not connected
EP03 DRAM error
EP04 SRAM error
EP07 ROM verification failure
EP08 RAM test failure
EP09 Battery test failure
EP11
Invalid unit address
EP12 Power on self test failure
EP14 GITV startup failure
EP15
TSI structure corrupt
EP18 Driver initialization failure
Connected State
A DCX-operations connect or disconnect message determines whether the
DCX3510-M is CONNECTED or DISCONNECTED.
Platform ID
A unique 16-bit hexadecimal number that identifies the platform image (also called
the ROM ID).
Family ID
The manufacturer and product family, in hexadecimal.
Model ID
The model, in hexadecimal.
Environment code
Error code
