Motorola Confidential Proprietary
V975/V980/C975/C980Manual Test Procdures
2-10
Draft 1.0
Non-signaling Test Procedures
(WCDMA)
To perform non-signaling test procedures, the user is
required to be familiarized with sending test commands
to the phone under test.
In order to successfully send test commands to the phone
under test, the phone needs to be in suspend mode.
Follow the listed procedure to place the phone in sus-
pend mode.

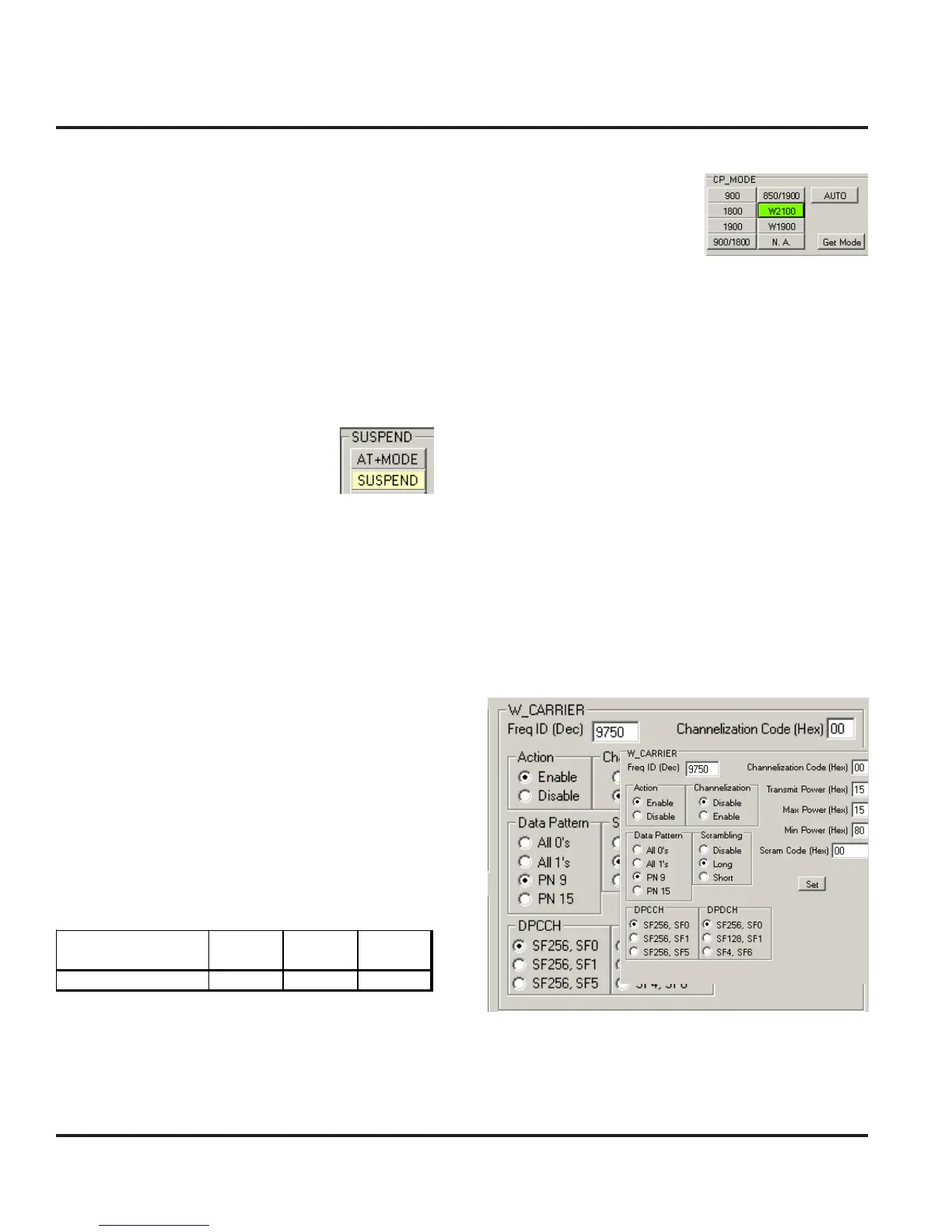

Click AT+MODE then SUSPEND
(Serial Only)
Click SUSPEND (USB Only)
Hardware Requirements
Refer to page 2-2 for a list of Hardware. Refer to Fig-
ure 2-5 for a configuration illustration.
Software Requirements
Radio Comm (latest release)
Verify TX Power Output (WCDMA)
Verify the TX Power output by initiating the commands
in this section. Verify that the results fall within the fol-
lowing limits.
Click on WCDMA
For W_CARRIER assign these actions to each field
Freq ID (Dec) 9750
Action Enable
Channelization Enable
Data Pattern PN 9
Scrambling Long
DPCCH SF256, SF0
DPDCH SF256, SF0
Channelization Code 00
Transmit Power 15¹
Max Power 15¹
Min Power 80²
Scram Code 00
¹0x0015 -> 21 dec -> +21dBm
²0x0080 -> 128 dec -> (128-256 = -128 dBm)
Table 2-7. WCDMA TX Power Output
Parameter
Low
Limit
High
Limit
Unit
WCDMA Power Out 19.5 22 dBm
Non-signaling Test Procedures (WCDMA)
