3. Slide the air door rod out of the blower housing.
See Figure 4.32.
NOTE: The air door will fall off when the rod is
removed.
4. To install the air door, turn the blower housing
upside down.
5. Hold the air door in place while sliding in the rod.
NOTE: Make sure the rod goes through all of the
rod channels. See Figure 4.33.
Primer
Another way to enrichen the fuel air mixture for start-up
is the primer. The primer is a simple pump that pressur-
izes the float chamber, forcing fuel out the main nozzle.
See Figure 4.34.
Carburetors that use a primer are easily identified by
the lack of a choke plate and the addition of a primer
port. See Figure 4.35.

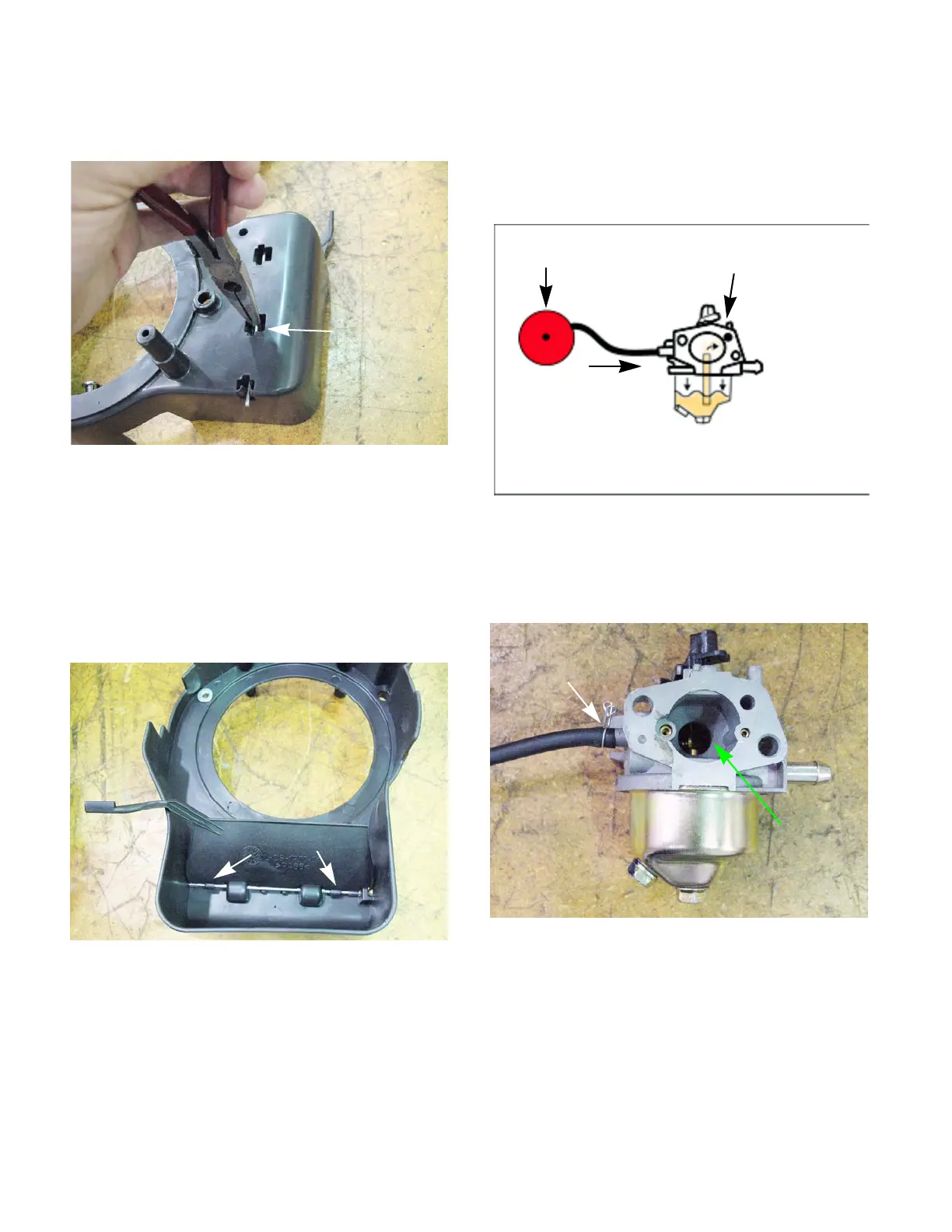

Figure 4.32
Slide the rod
out of the
blower housing
Figure 4.33
Rod channels
Figure 4.34
Primer
Primer
Carburetor
Air pressure
Fi
ure 4.35
Choke is
removed
Primer port
