Chapter 6: Starters
57
Recoil Starter Removal
To remove recoil assembly from the engine:
NOTE: Some engines are not equipped with an
engine shroud, depending on the application. If
the engine does not have an engine shroud, skip
to step 5.
1. Loosen the wingnut, that secures the starter
rope eyelet to the handlebars, enough to provide
clearance for the starter rope and slide the rope
out. Allow the starter rope to retract into the
starter..
2. Remove the four screws that hold the engine
shroud to the engine. See Figure 6.1.
3. Remove the fuel cap.
CAUTION: Use common sense when working
around fuel: No sources of sparks or open flame
should be near enough to cause ignition.
4. Lift the shroud off of the engine.

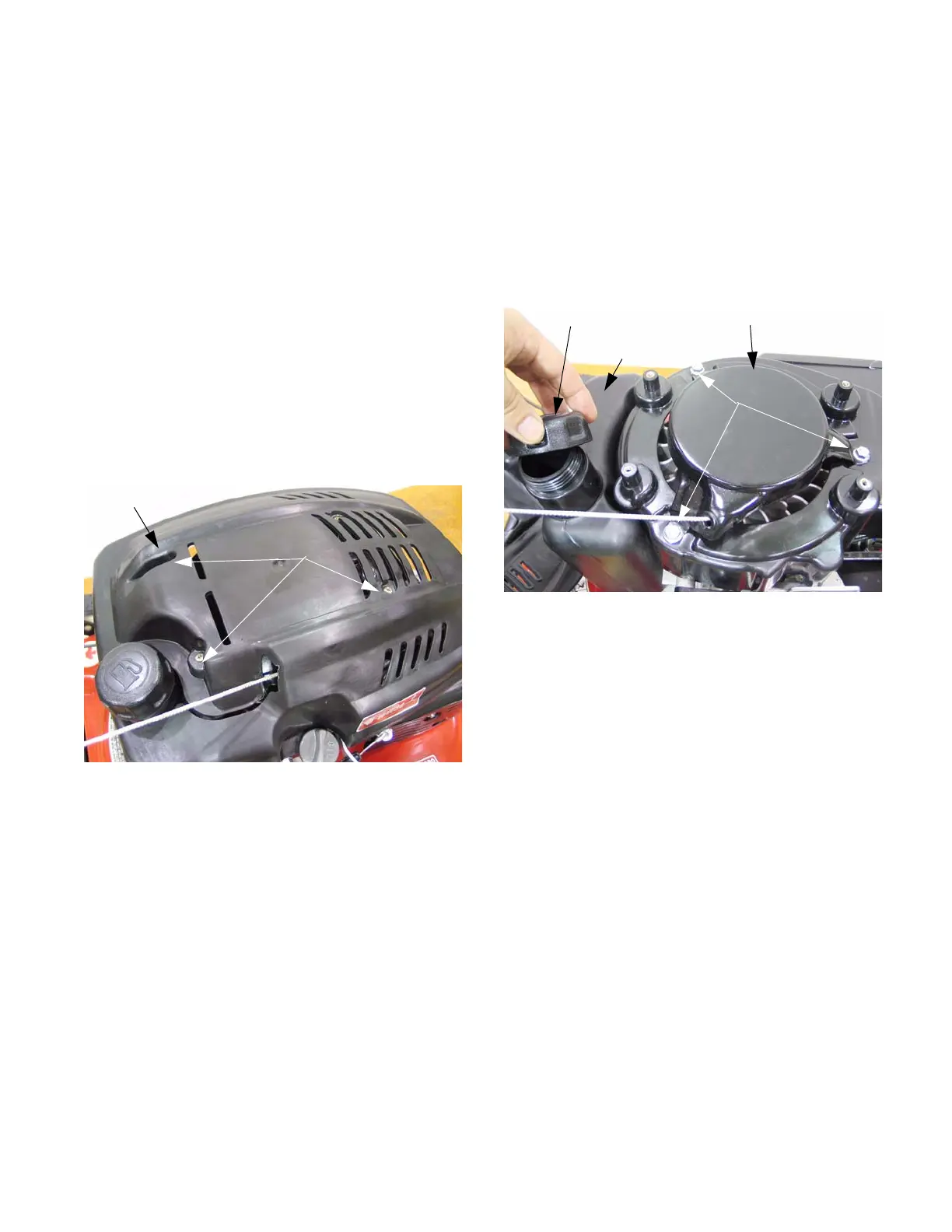

Figure 6.1
Engine shroud
Mounting screws
5. Remove the engine cover and replace the fuel
cap.
6. Remove the three nuts that secure the recoil
assembly and fan shroud to the engine using a
10mm wrench. See Figure 6.2.
7. Lift the recoil assembly off of the engine, and
place it on a convenient work surface.
Figure 6.2
Fuel cap Recoil assembly
Fuel tank
Nuts
CHAPTER 6: STARTERS
