Installing Cables
Installation
Installing Cables
Exercise care when connecting cables. Ensure that you are using the correct
cables and that all connections are secure. When you are finished, double-check
to ensure that all components are connected properly.
To maintain EMC compliance and help ensure optimal performance, MTS
recommends ordering all system cables from MTS. Cables should be installed so
that they are protected from conditions that could damage the cable.
There is dangerous voltage inside the machine.
Connecting cables with power applied can cause damage to the equipment.
Ensure that the power is turned off before connecting cables.

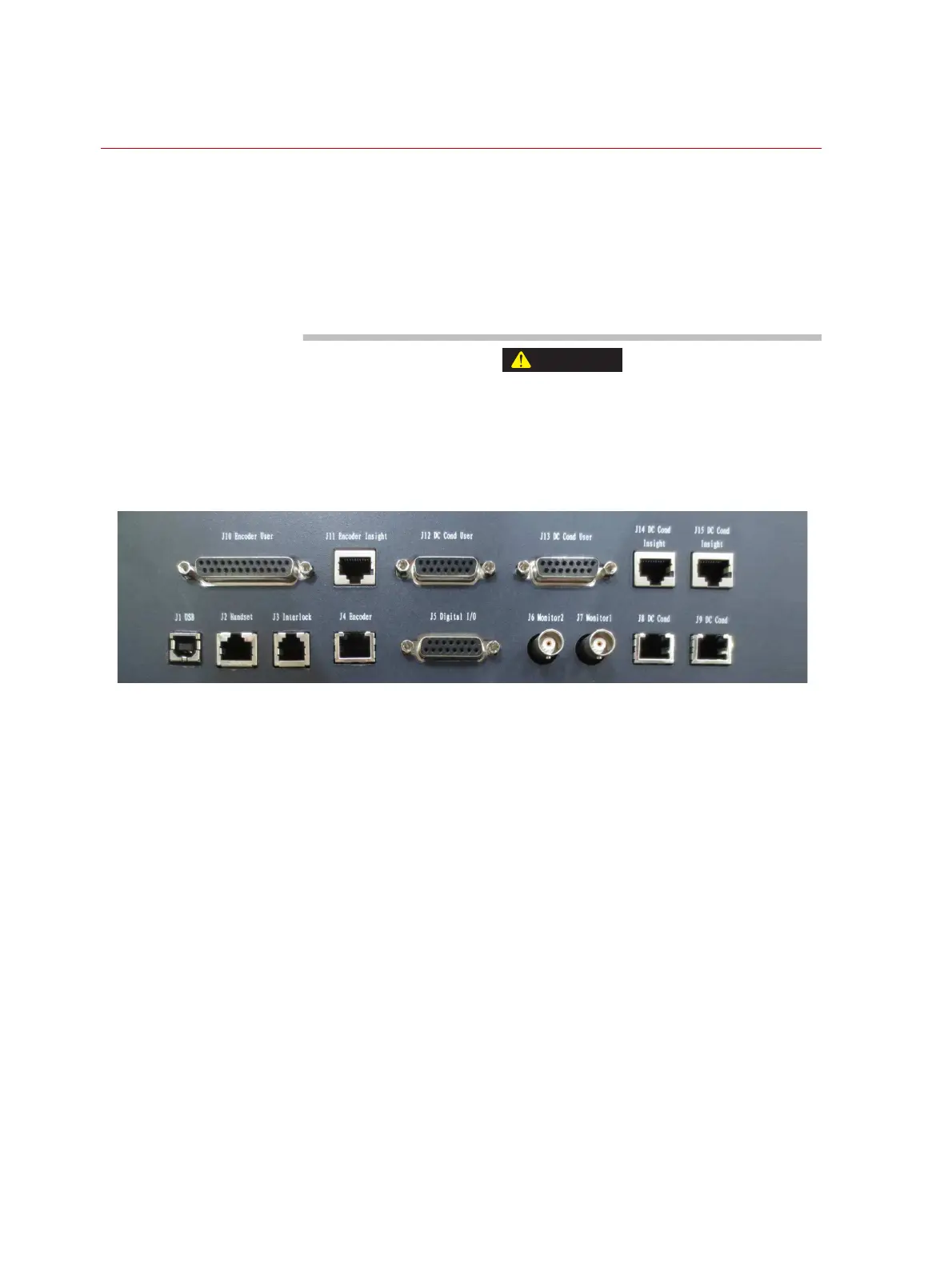

Controller connectors
J1 USB
This is a standard USB 2.0 connector that accepts a USB-B cable connector and
connects to the computer. This provides a communications interface between the
testing software on the PC and the controller. This is used to allow the software to
change settings in the controller and to receive data from the controller.
J2 Handset
This is intended to interface to the handset. Specifics for this connector are:
• 12 V output power with 200 mA current limit
• RS422 driver (differential)
• RS422 receiver (differential)
• Interlock input. Handset shorts between INTLK+ and INTLK- when it is
connected.
• 8-pin RJ-45 connector
Pin assignments are as follows:
