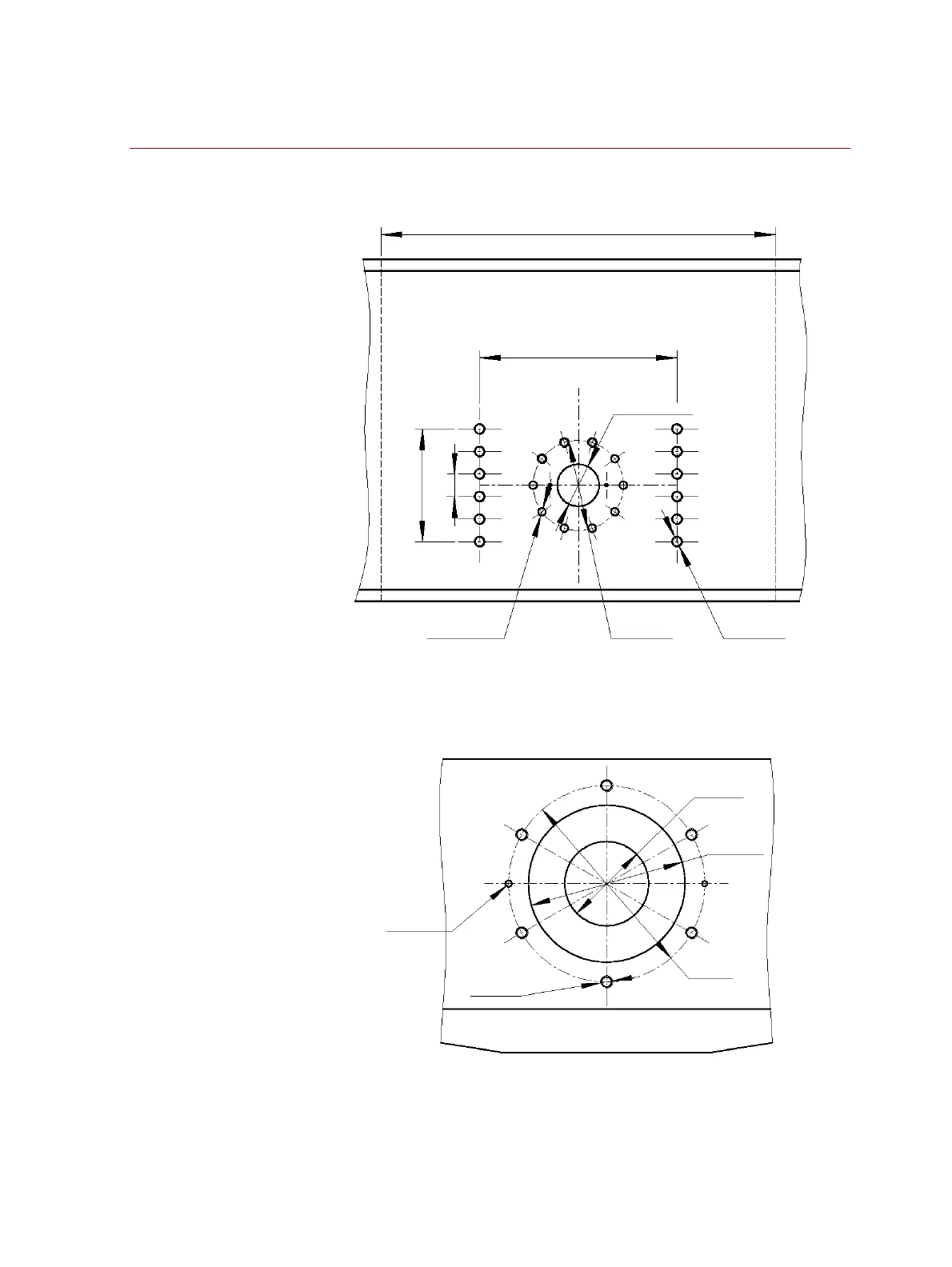

Model E45.605 Accessory Mounting Dimensions
MTS Exceed™ Series 40 Product Manual Installation
65
Model E45.605 Accessory Mounting Dimensions
Base beam
Crosshead
12-M20x40
vΦ75x60
350
Φ128
10-M16x35
40
40x5=200
750 Horizontal Clearance
Model E45.605 Base Beam Mounting Dimensions
6-M12x30
Φ82 Thru
Φ190
vΦ152x94
2-Φ5.4x12
Model E45.605 Upsside of Crosshead Mounting Dimensions
