MTS Exceed™ Series 40 Product Manual
56

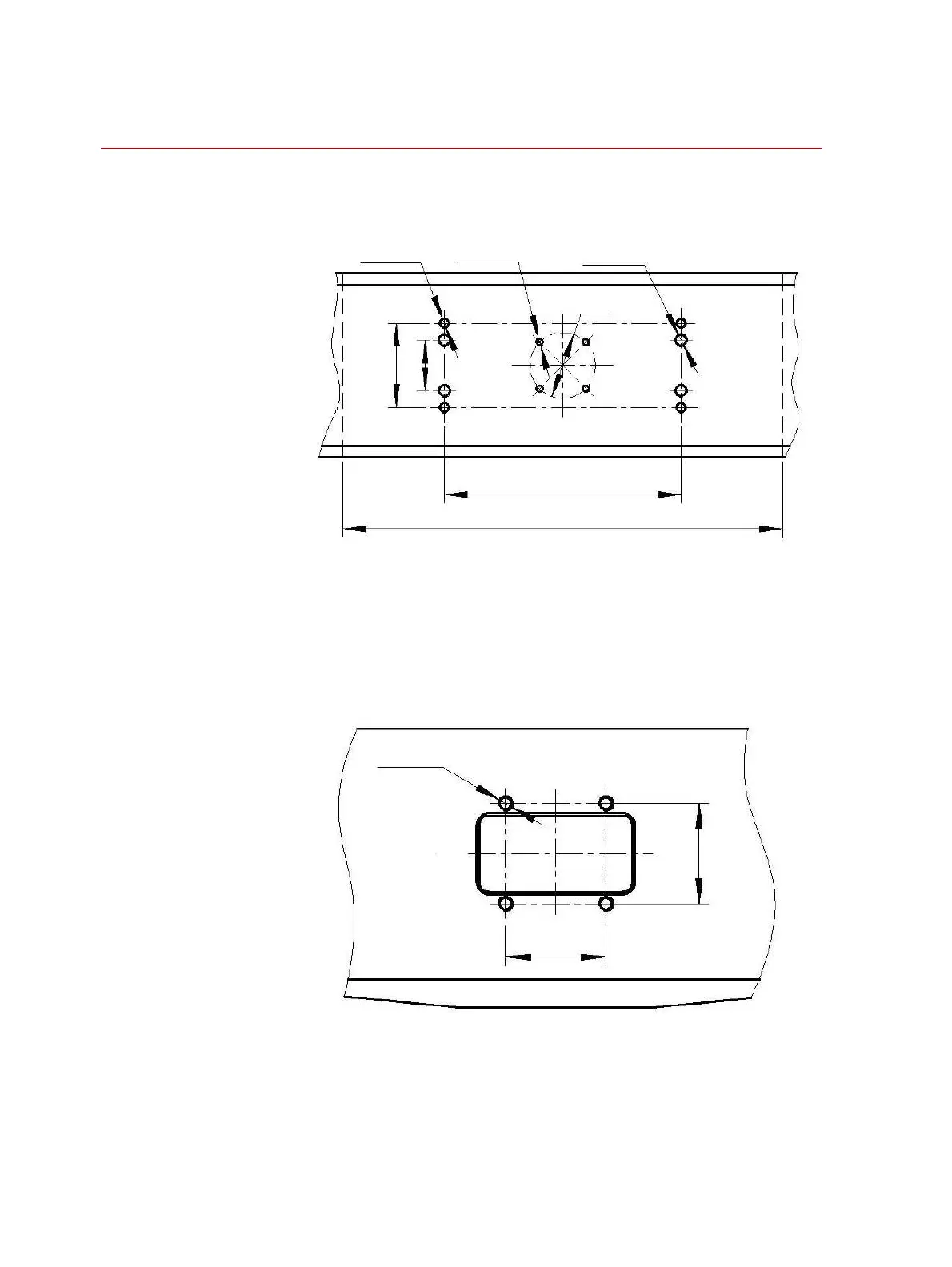

Model E43 .104Accessory Mounting Dimensions
Installation
Model E43 .104Accessory Mounting Dimensions
Base beam
Crosshead
Φ50
4-M6x15
4-M8x20
340 Horizontal Clearance
180±0.1
64±0.1
38
4-M10x20
Model E43.104 Base Beam Mounting Dimensions
Model E43.104 Crosshead Mounting Dimensions
42±0.1
50±0.1
4-M6x12
