Handset Control
MTS Exceed™ Series 40 Product Manual Operation
73
Handset Control
The handset has an encoder and buttons to help you during specimen installation
and test execution. The handset also has an alphanumeric display and LEDs to
provide feedback.
Handset functions The handset is intended to be used for specimen loading or setup. In some
applications, it can be used to completely run a test.

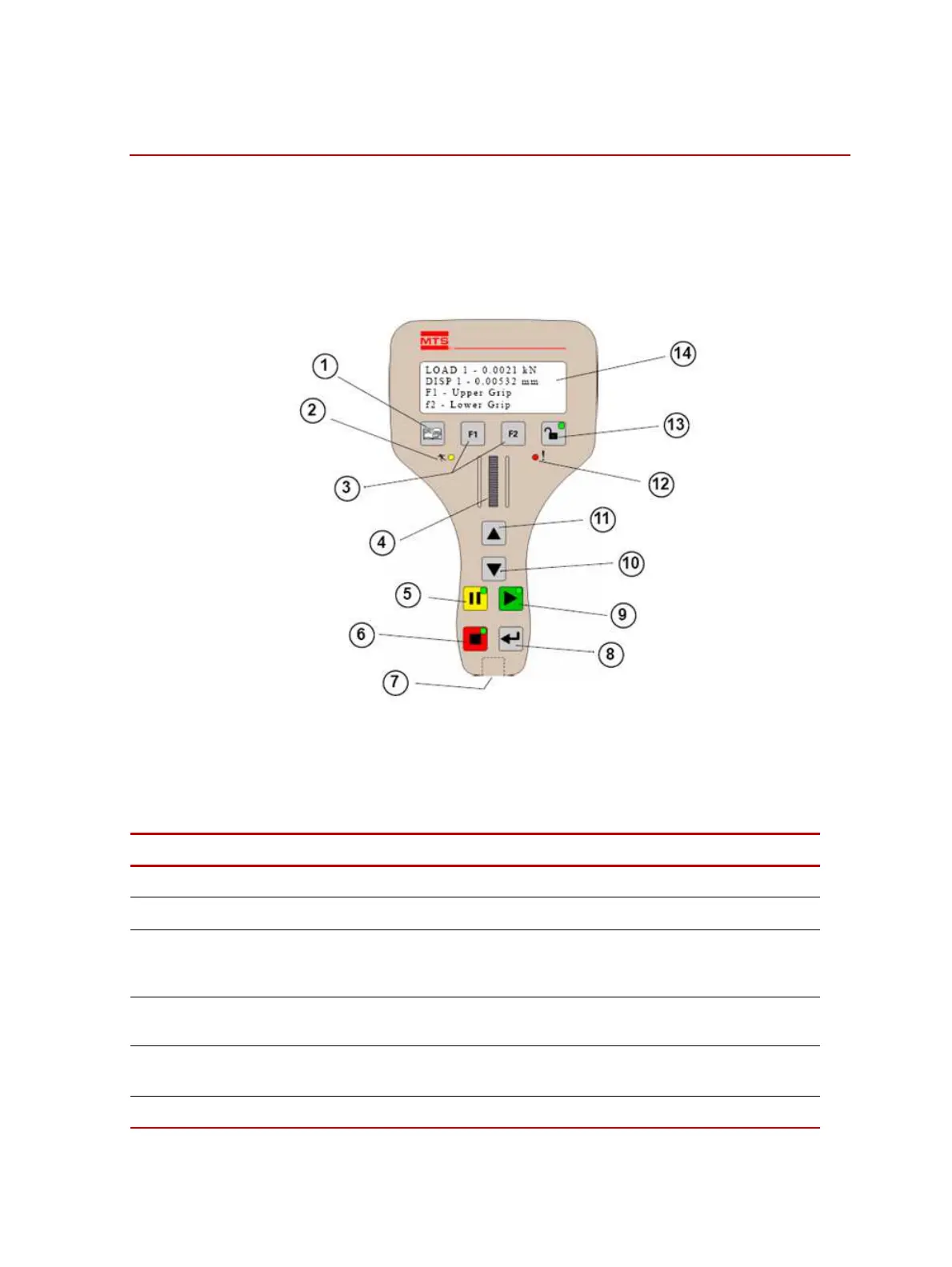

Handset Controls and Indicators (part 1 of 2)
# C ONTROL /I NDICATOR D ESCRIPTION
1 Page
Displays the next four lines of text in the display.
2 Active
When lit, indicates the system is active (motion is possible).
3 F1 and F2
Programmable functions that are set up in the software as
digital inputs. This allows you to define the test function (that is,
start test, pause, hold position, and so forth).
4 Thumb-wheel
Makes fine crosshead adjustment (towards display – up; away
from display – down. Only if Handset Enable is active.
5 Pause
Pauses the test action. This must be pressed again for the test
to resume. Only if the testing software is active.
6 Stop
Stops motion.
