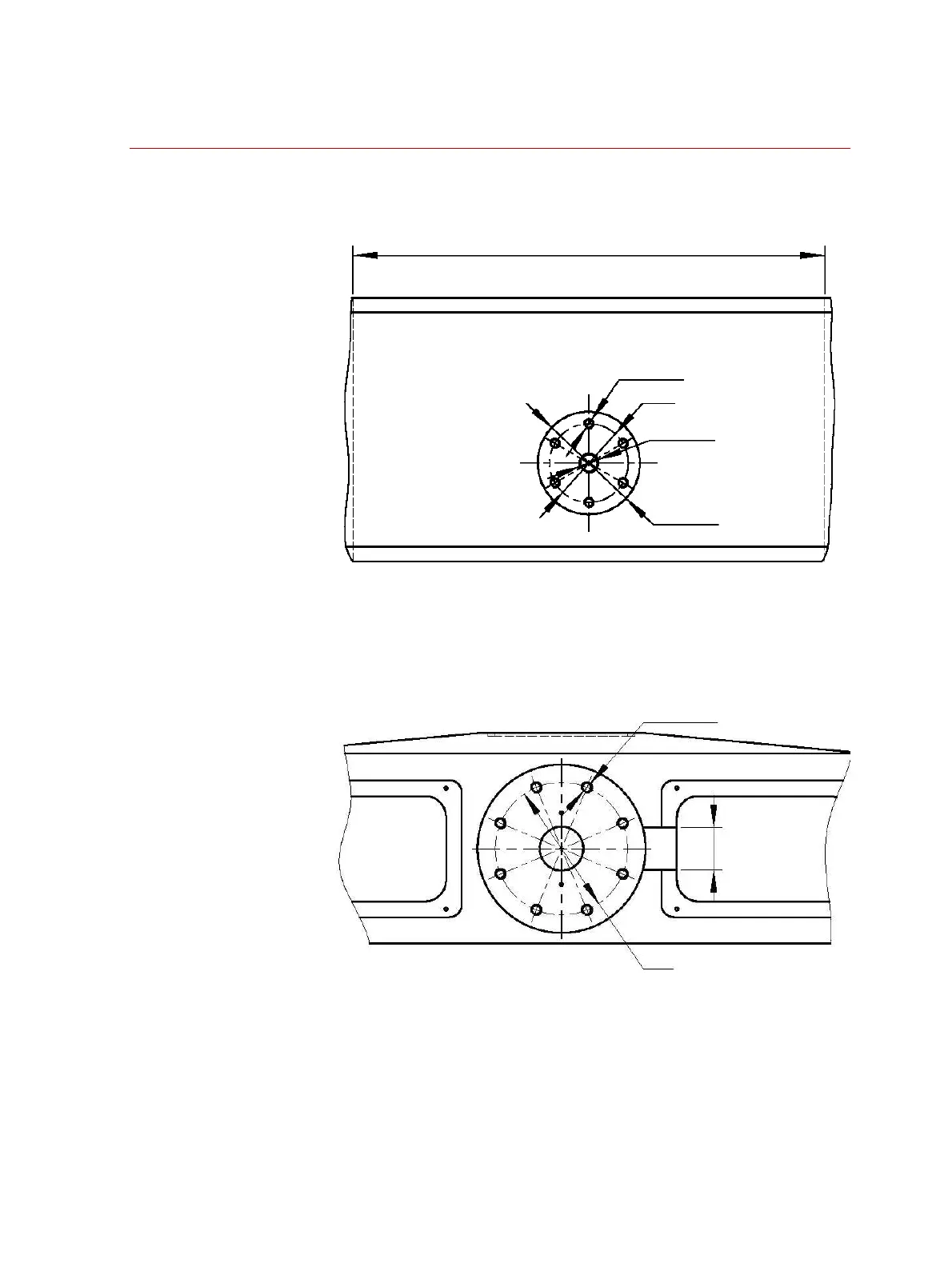

Model E45.105 Accessory Mounting Dimensions
MTS Exceed™ Series 40 Product Manual Installation
59
Model E45.105 Accessory Mounting Dimensions
Base beam
Crosshead
vΦ131x20
M24x2x25
Φ100
6-M12x25
600 Horizontal Clearance
Model E45.105 Base Beam Mounting Dimensions
8-M10x20
Φ126
40
Model E45.105 Underside of Crosshead Mounting Dimensions
