5 Maintenance and Inspection
Screw Compressor J-series 5.4 Disassembly and Assembly of the Compressor
5-28
 220J/280J
Order Description
Part
No.
Order Description
Part
No.
1 Shaft key 91 7 O-ring (G120/G140) 657
2
Hexagon socket head cap screw
(M10×35/ M12×40)
53
8
Mechanical seal assembly
Mating ring
100
100-2
3 Seal cover assembly —
4 O-ring (G145/G165) 52-1
9
Mechanical seal assembly
O-ring
100
100-1
5
Retaining ring C type internal
(H120/ H140)
658
6 Sleeve, shower flushing 611 10 Shaft seal cover 51

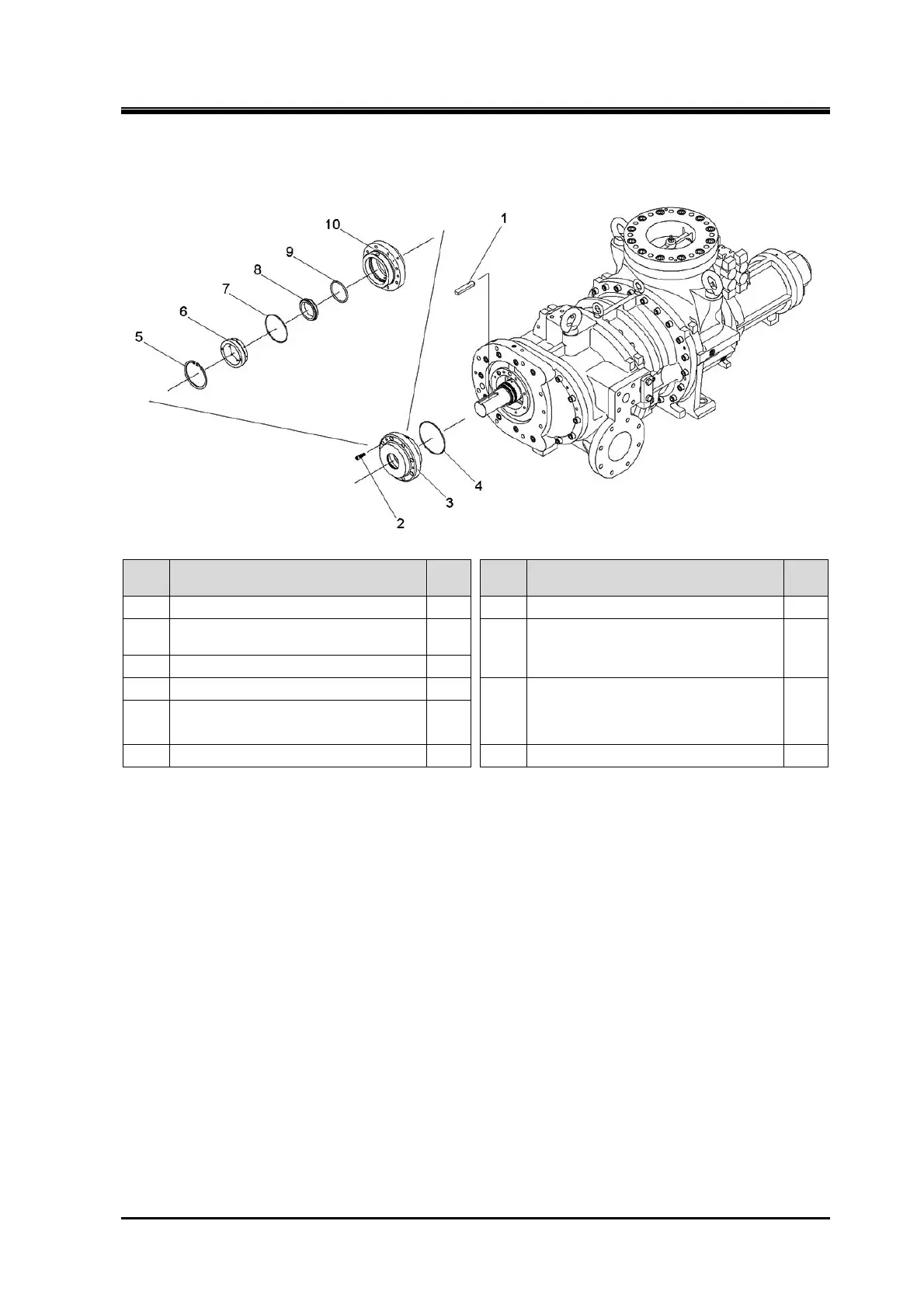

1. Remove the parts in the order of numbers shown in the figure.
2. Install the parts in the reverse order of removing.
