3-CONTROLSANDINSTRUMENTS
Draftcontrol-optional

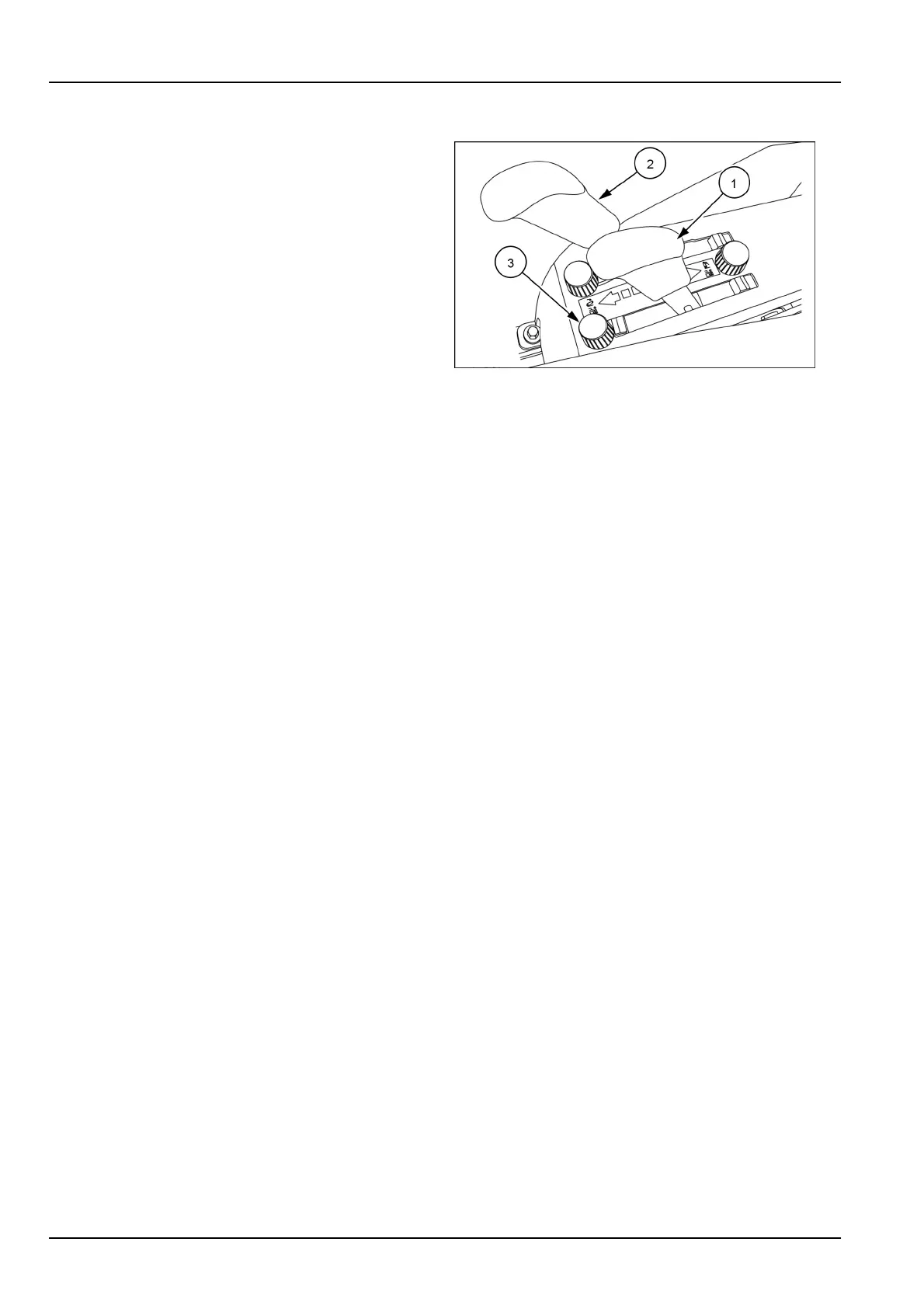

Theoptionaldraftcontrollever(1)willbelocatedintheslot
ontheright-handcontrolpod,nexttothepositioncontrol
lever(2).
Thedraftcontrolleversetsthedesireddepthoftheat-
tachedimplement.Draftcontrolisbestwhenusingim-
plementsthatoperateintheground,suchasplows,har-
rows,orcultivators.Thedraftloadingontheimplement
increasesanddecreasesastheworkingdepthorthesoil
resistancechanges.
Tosetthedraftcontrol,movethepositioncontrollever(2)
toitsfullforwardposition.Thensettheimplementdraft
depthlowerbymovingdraftcontrolleverforward,orset
ithigherbymovingleverrearward.
Implementdepthwillbepromotionaltodraft,depending
onthesoilconditions.Withdraftcontrol,theliftkeepsthe
tractiveeffortsteadyautomatically.
Youcanlimittherangemanualdraftleveroperationby
movingandtighteningthestop(3).
931038641
Combineddraftandpositioncontrol
Youcanusedraftandpositioncontroltogethertooper-
ateindraftcontrolbutpreventtheimplementfromsink-
ingexcessivelywhensoilconditionschange.Firstsetthe
draftcontrolleverwiththepositioncontrolleverfullyfor-
ward.Thenmovethepositioncontrolleverbackuntilthe
liftarmsstarttorise.Thepositioncontrolleversetsthe
loweredpositionofthehydrauliclift.
Floatoperation
Movethedraftcontrolleverandpositioncontrolleverfully
forward.Thethree-pointlinkagewillnowbefreeto"oat"
orfollowthegroundcontour,afeatureusefulforscraper
blades,etc.
3-30
