4.1 -Electrical connections of gearmotor with control unit
mod. PP7124
Caution! Only make the electrical connections after installing the
gearmotor.
WARNINGS!
– Connections must be made exclusively by qualified personnel.
– All electrical connections must be made with the unit disconnected
from the mains power supply and with the buffer battery disconnected
(if present).
The electrical power line must be fitted with a device that enables com-
plete disconnection of the automation from the mains. The disconnection
device must have a gap between contacts that ensures complete discon-
nection in the conditions of overvoltage category III, in compliance with
installation regulations.
01.Open the cover of the gearmotor (fig. 12);
02.Route the power cable and other electric cables through the hole o
n the
lower section of the gearmotor;
03.First connect the power cable: loosen the cable clamp and connect the pow-
er cable as shown in fig. 13; then secure the cab
le by means of the cable
clamp;
04.Then connect the cable powering the motor without control unit (PP7224) as
shown in detail “A” of fig. 11;
05.Lastly connect the electric cables of the various devices present, with reference
to fig. 11 and paragraph 4.3. Note – To facilitate cable connections, the termi-
nals can be removed from their seats;
06.In the Table 2 iden tify the type corresponding to the system to be pro-
grammed and if necessary, on the control unit, set the selector JA and
jumper JB as described;
07.Close the gearmotor cover.
4.2 - Connection of gearmotor without control unit mod.
PP7224
01.Open the cover (fig. 12);
02.Route the motor cable through the hole on the lower section of the gear-
motor;
03.First connect the power cable: loosen the cable clamp and connect the wires
as shown in fig. 14, observing the symbols on the label; then secure the
cable by means of the cable clamp;
04.Close the gearmotor cover.
09. At this point, determine the zone for fixing the bracket ion the gate leaf, set-
ting the gearmotor arms to the maximum extension (fig. 4): it is important
to position th e bracket at th e point furth est from the position of the gear-
motor;
10. Drill the leaf and fix the bracket using suitable screws (not supplied);
11. Before locking the gearmotor, adjust the mechanical opening limiter as
required (paragraph
3.5).
3.5 - Adjusting the mechanical opening limiter
01. Manually move the gate leaf to the maximum opening position;
02. Position the mechanical limiter as shown in fig. 9-1 and fix by means of the
2 screws (M6x20) supplied;
03. Loosen the screw fixing the straight arm to the gearmotor and fit the pro-
tection cover (fig. 9-2); then re-tigh
ten the screw and washer;
04.
Position the gate leaf at mid-travel and manually lock the gearmotor (para-
graph 3.6)
;
3.6 - Manually releasing and locking the gearmotor
The gearmotor is equipped with a mechanical locking system to enable manu-
al opening and closing of the gate.
These manual operations should only be performed in the event of a power fail-
ure, malfunctions or during the installation procedures.
Releasing (fig. 10-1):
01. Raise the panel;
02. Tu r n the key clockwise (90°);
03. At this point the leaf can be moved manually to the required position.
Locking (fig. 10-2):
01. Tu r n the key anti-clockwise through 90° and remove;
02. Lower the panel.
The electrical connection of the vari ous devices (photocells, digital keyboard,
transponder card readers, etc.) contained in the automation with the control unit
must be made by means of the Nice “Bluebussystem.
Description of electrical connections (fig. 11)
AERIAL input for the radio receiver aerial
FLASH output for 1 flashing light with 12V (maximum 21W) bulb. [*]
ELS output for 12Vac (maximum 15VA) electric lock. [*]
BLUEBUS input for compatible devices (MOFB, MOFOB, MOB and MOTB);
they are connected in parallel using two conductors through
which both the electricity supply and the communication signals
travel; no polarity needs to be observed. The electrical connec-
ti on to be used is of the parallel type and no polarity needs to be
observed. During the learning stage, the control unit will recog-
nise individually all devices connected to it thanks to a unique
code. Each time a device is added or eliminated, it will be nec-
essary to make the control unit perform the learning operation
(s ee paragraph 4.6).
STOP input for devices that cause the immediate interruption of the
man oeuvre in progress (with a short reverse run); NO and NC
contacts, as well as devices with 8.2 kΩ constant resistance
output (sensitive edges) can be connected to this input. Each
device connected to this input is recognised indi vidually by the
control unit during the learning stage (paragraph 3.4); in this
stage, if the control unit detects any variations with respect to
th e learned state, it causes a STOP. One or more devices of the
same or different kinds can be connected to this input:
connect a number of NO devices in parallel without quantity
limi ts;
several NC devices can be connected in series, with no limits
as to quantity;
connect 2 devices with 8.2 kΩ constant resistance output in
parallel . If there are more than 2 devices, they must be connect-
ed in a cascade wi th just one 8.2 kΩ termination resistance;
connect 2 NO and NC devices in parallel, placing a 8.2 kΩ
resistance in series on the NC contact (this also allows for a
combination of three devices NO - NC and 8.2 kΩ)
P. P. input for devices which control Step-by-Step manoeuvres. NO
contacts can be connected to this input
OPEN input for control devi ces, which intervene to cause partial open-
ing 1 manoeuvre; possibility of connecting NO type con tacts
M output for gearmotor without control unit (PP7224)
[*] The outputs FLASH and ELS can be programmed with other functions
(s ee “TABLE 5 Level 1 functions”; or via the Oview programmer; see para-
graph 8.3).
ELECTRICAL CONNECTIONS
4
Overlapping leaf
Overlapping leaf
Overlapping leaf
PP7224 PP7124
PP7124PP7224
PP7124 PP7224
PP7224 PP7124
PP7124 PP7224
PP7124
PP7124

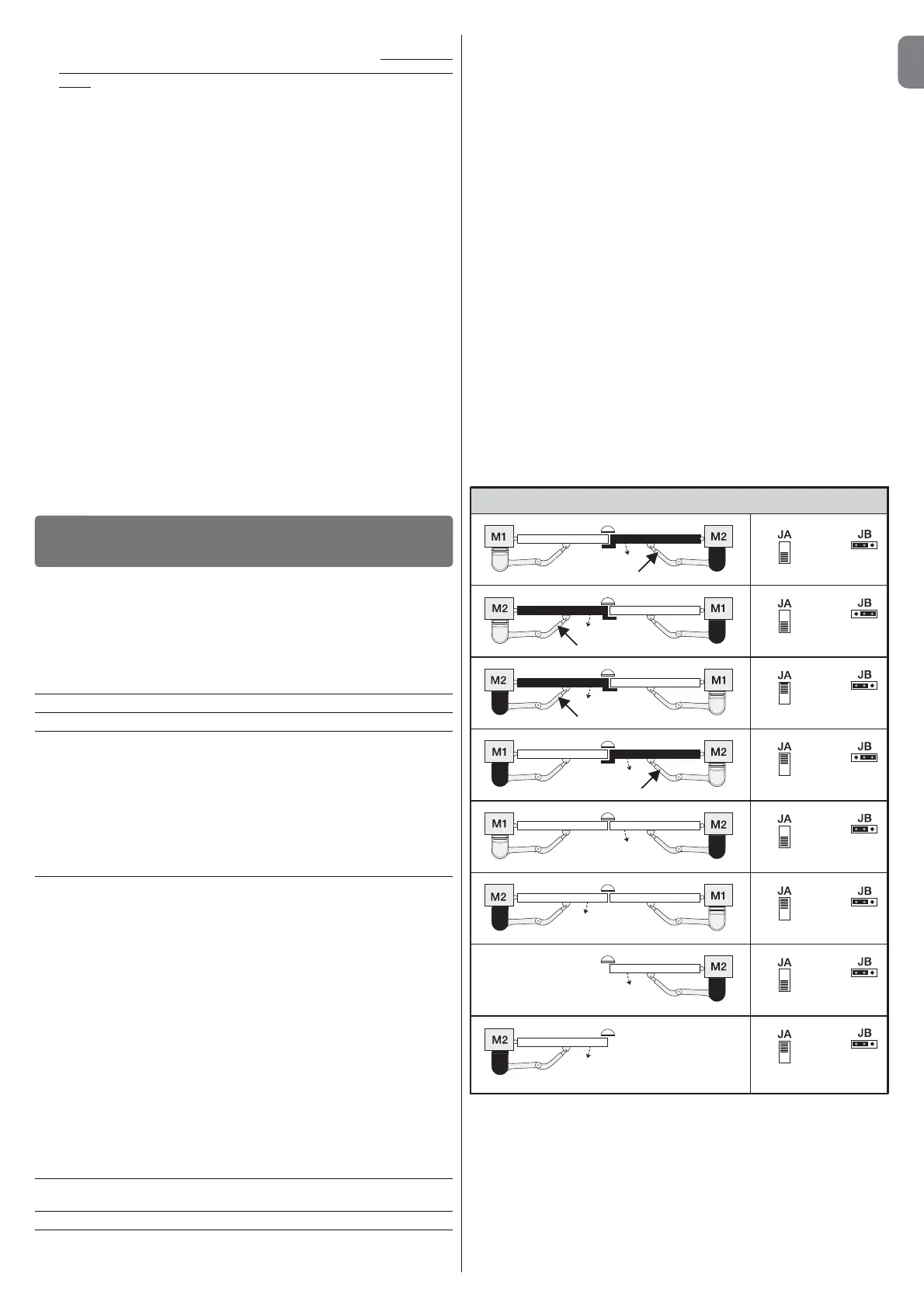

TABLE 2
Overlapping leaf
PP7124 PP7224
English – 3
EN
Overlapping leaf
Overlapping leaf
Overlapping leaf
PP7224 PP7124
PP7124PP7224
PP7124 PP7224
PP7224 PP7124
PP7124 PP7224
PP7124
PP7124
TABLE 2
Overlapping leaf
PP7124 PP7224
