Nikon D-LEDI User Manual

Chapter 1 Names of Parts
1
Chapter 1 Names of Parts
1
Names of Parts
The following section illustrates the names of parts of this product.
Attaching the product and making connections
For how to attach the product to a microscope or illumination device and how to make connections between the
devices, refer to Chapter 5, “Assembling and Connection to the Product”.

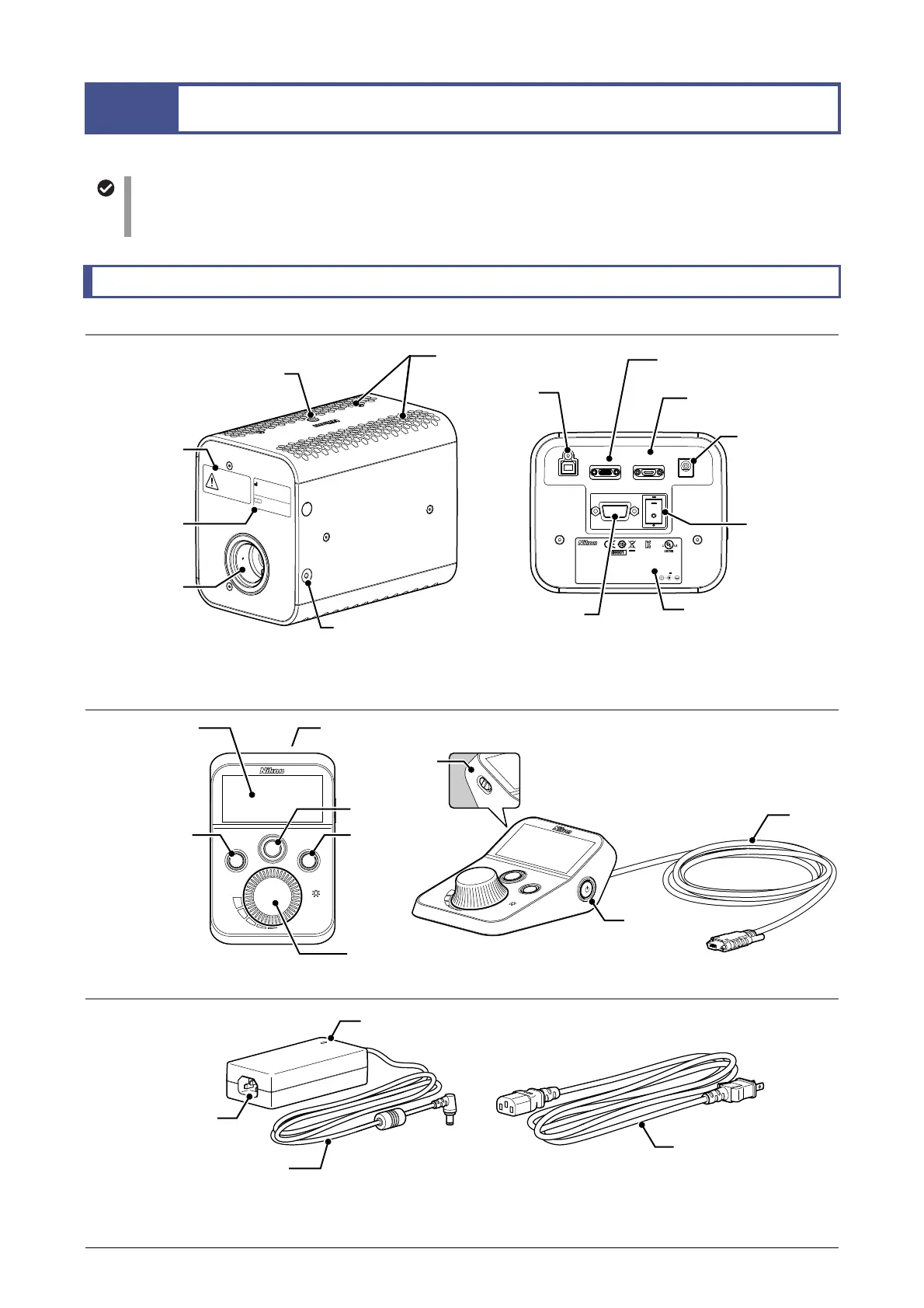

1.1 Composition Units
Main body of the D-LEDI fluorescence LED illumination system
This device complies with Part 15 of the FCC Rules.
Operati on is subject to the fol lowing two consit ions:
(1) this device may not cause harmful inter ference, and
(2) this device must accept any interference received,
includi ng interference t aht may cause undesir ed operation.
CAN ICES-3 (A)/NMB- 3(A)
D
-
LEDI
USB
REMOTE CONTROL
DC
TRIGGER
MADE IN JAPAN
TOKYO JAPAN
Manufacturer:
NIKON CORPORATION
Shinagawa Intercity Tower C,
2-15-3, Konan, Minato-ku, Tokyo
108-6290 Japan
Importer in the European Economic Area:
EC REP
NIKON INSTRUMENTS
EUROPE B.V.
Tripolis 100, Burgerweeshuispad 101,
1076 ER Amsterdam, The Netherlands
4N75
INSPECTION
EQUIPMENT
R
-
R
-
NEc
-
SD
-
LEDI
INPUT
12VDC , 3.3A
WARNING
RISK GROUP3
AVERTISSEMENT
GROUPE DE RISQUE3
IEC 62471
Note 1: The D-LEDI main body does not have a cooling fan.
D-LEDI-C Remote control pad
Fn
SELECT MENU
PUSH
ON/OFF
PUSH
ON/OFF
S
E
L
E
C
T
Fn
DISP
ON
OFF
AC adapter and power cord
(Note 2)
Standby button
SELECT button MENU button
Fn button
Indicator
Power cord connecto
r
DC connection cord
Vents (top and bottom)
(Note 1)
TRIGGER connecto
r
(for connecting to
external trigger signals)
Main power
switch
CONTROL connector
(for connecting to the Ti2-E)
USB connecto
r
(for connecting
to a PC)
Light-emitting hole
(coupling hole)
REMOTE connector
(for the remote control pad)
DC connector
(for connecting to
the AC adapter)
WARNING label
(Risk Group 3)
Mount fixing screws
(left and right)
Product name plate
Europe importe
r
indication
DISP switch
Pillar-attaching tapped holes
(top and bottom)
(M5, 8 mm deep)
Displa
y
Illumination control dial
Cable
Product name plate
(on the back)
Power cord
Note 2: The power cord differs depending on the shipment destination.
