Nikon D-LEDI User Manual

Chapter 2 How to Use the Parts
8
2.2.2 Operation in ASYNC Mode (Individual Illumination Control Mode)
In the ASYNC mode, you can turn the four LEDs on or off and control their brightness individually.
When you control the brightness of multiple LEDs, you can adjust their brightness while the luminance
balance is maintained.

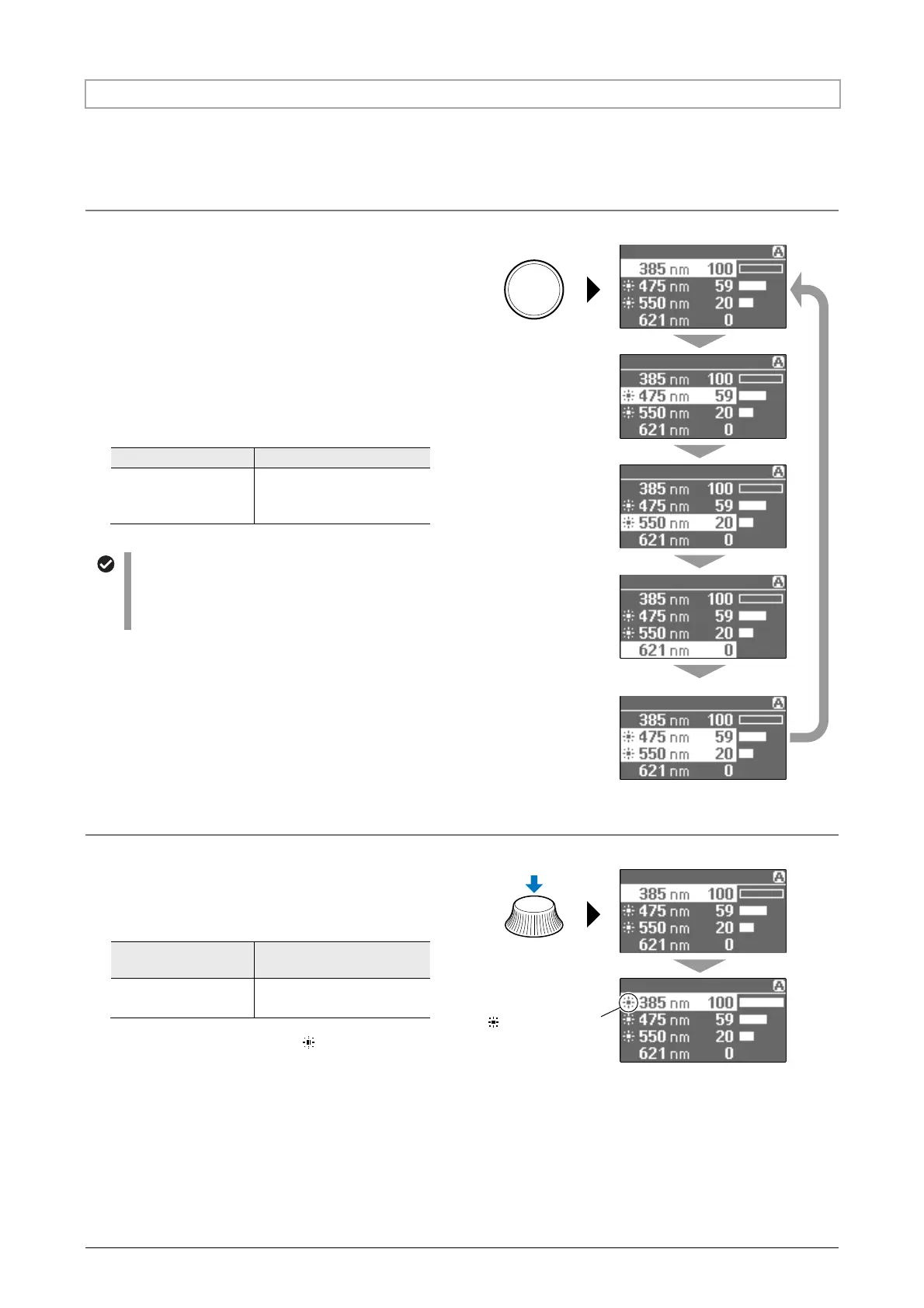

Selecting one or more LEDs to be controlled
To use the ASYNC mode to turn LEDs on or off and
control their brightness, select one or more LEDs you
want to control on the display. The selected LEDs are
displayed highlighted.
In the ASYNC mode screen, pressing the SELECT
button switches through LED1 to LED4 in this order.
When multiple LEDs are turned on, pressing the
SELECT button after switching through 1 to 4 selects
all the lit LEDs.

Selecting the LEDs
SELECT button Selected LED
Press
(Individual illumination
control mode)
Switches the LED selection
(1 → 2 → 3 → 4 →
the multiple lit LEDs)
Beep sound emitted when selecting LEDs
A beep sounds when you select LEDs.
The pitch of the beep increases as the number of
LEDs increases.
SELECT
Turning LEDs on or off
Select the desired LEDs on the display, and then
press the illumination control dial. The selected LEDs
are turned on or off.

Turning the selected LEDs on or off
Illumination
control dial
Selected LEDs
Press
Illumination is switched on
or off.
Illumination is indicated by the
LIT
icon to the left of
each wavelength on the display.
A beep sounds when you turn LEDs on.
Press SELECT
to move the LED
selection
LED1
LED2
LED3
LED4
Lit LEDs (Ex.: LED2 and LED3)
LED1 is selected (turned off)
LED1 is
turned on
Press the illumination
control dial.
LIT
appears when the
illumination is on.
